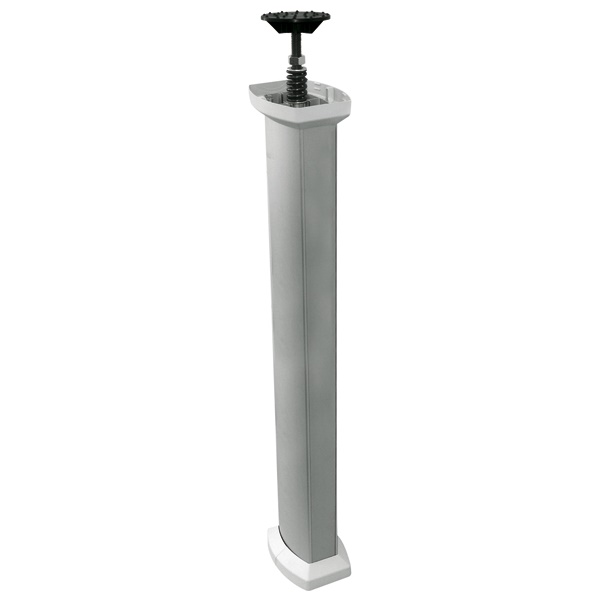

They allow the power and cable routing between the ceiling and the floor.
To be used with semi-assembled devices QUADRO 45 Series.
CLASSIFICATION COLUMNS AND MINI COLUMN
Mechanical strength shock test for installation and application 10 J
Minimum Storage and transport Temperature - 45 °C
Minimum Installation and Application Temperature - 25 °C
Maximum Application Temperature 60 °C
Resistance to flame propagation Non-flame propagating
Electrical continuity characteristic With electrical continuity 5x10-5Ω/m
Electrical insulation Without electrical insulation
Protection degree provided by enclosure IP31
Protection against corrosive or polluting substances Medium protection outside and inside
Access system to the retention of the cover The cover can only be removed with a tool
Electrically protective separation Without electrical protective partition (divider)
Type of floor Dry floor
Rated Voltage 500V~
