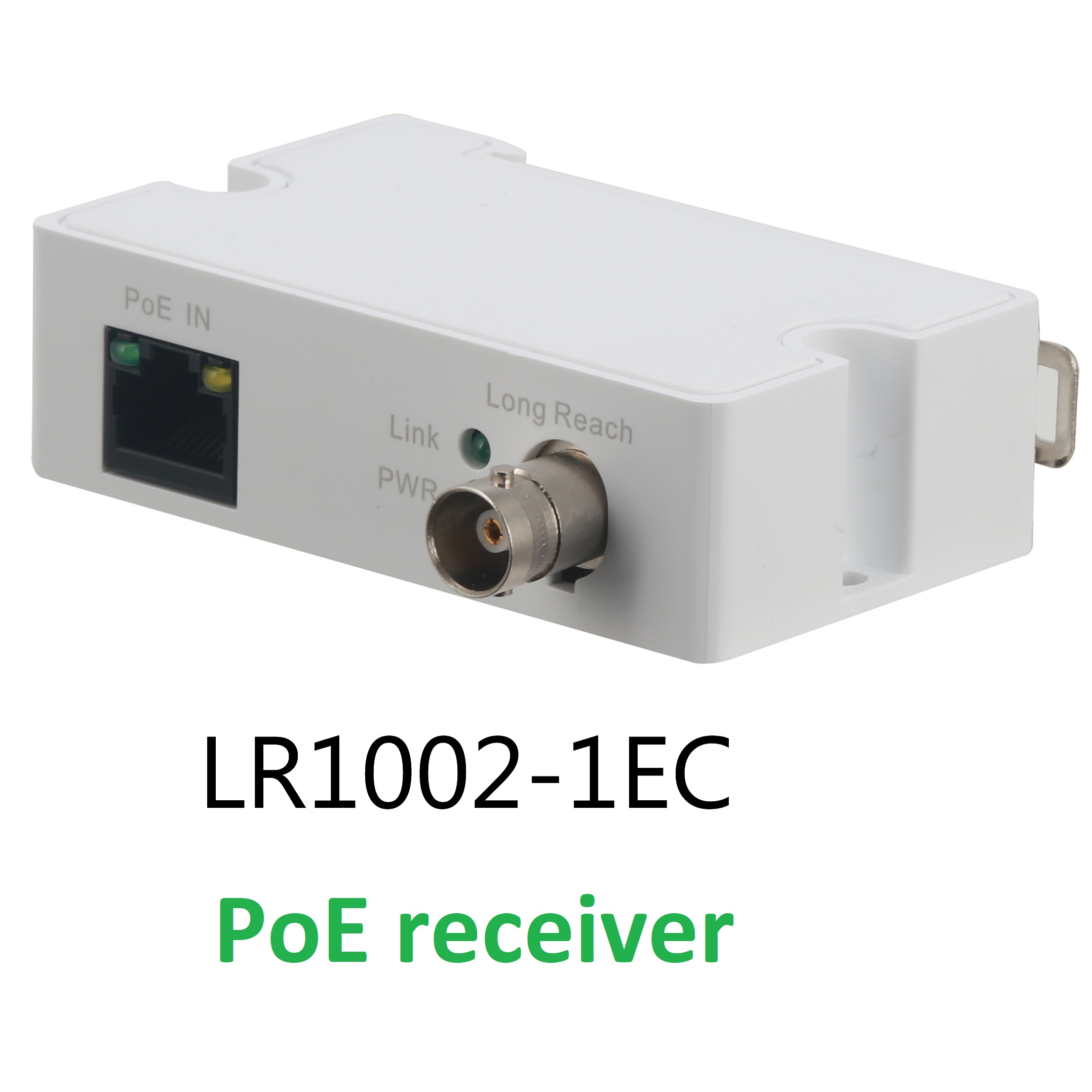

Receiver (LR1002-1EC). It is designed to work as a type of converter from RJ45
to BNC port, which supports long range power supply transmission via
coaxial cable. It provides one BNC coaxial port and one RJ45 port. The
product is equipped with two transmission modes which are 100Mbps
and 10Mbps. It can be modified according to the transmission distance.
Features
· Supports IEEE802.3, IEEE802.3u standards
· Supports IEEE802.3af and IEEE802.3at power supply
standards
· Port: 1*RJ45 10/100Mbps, 1*BNC
· Supports RG59 coaxial cable: 400m/100Mbps,
1000m/10Mbps
· Supports MDI/MDIX self-adaption
· Supports long range power supply transmission via coaxial
cable
Take RG59 as an example (Max. DC resistance - 5.0Ω/100m)
LR1002-1ET/LR1002-1EC Supports with 48V Supports with 53V
100m
Bandwidth (Mbps) 100 100
Load Capacity (W) 21 25.5
