Technical Specifications
CONSTRUCTION AND ELECTRICAL
Category 6A
Class EA (500MHz standard) with extended characteristics up to 650 MHz / 10 Gb/s
Twisted element 4x2x23AWG
Conductor 100% Cu - bare copper wire AWG 23/1
Insulation polyethylene

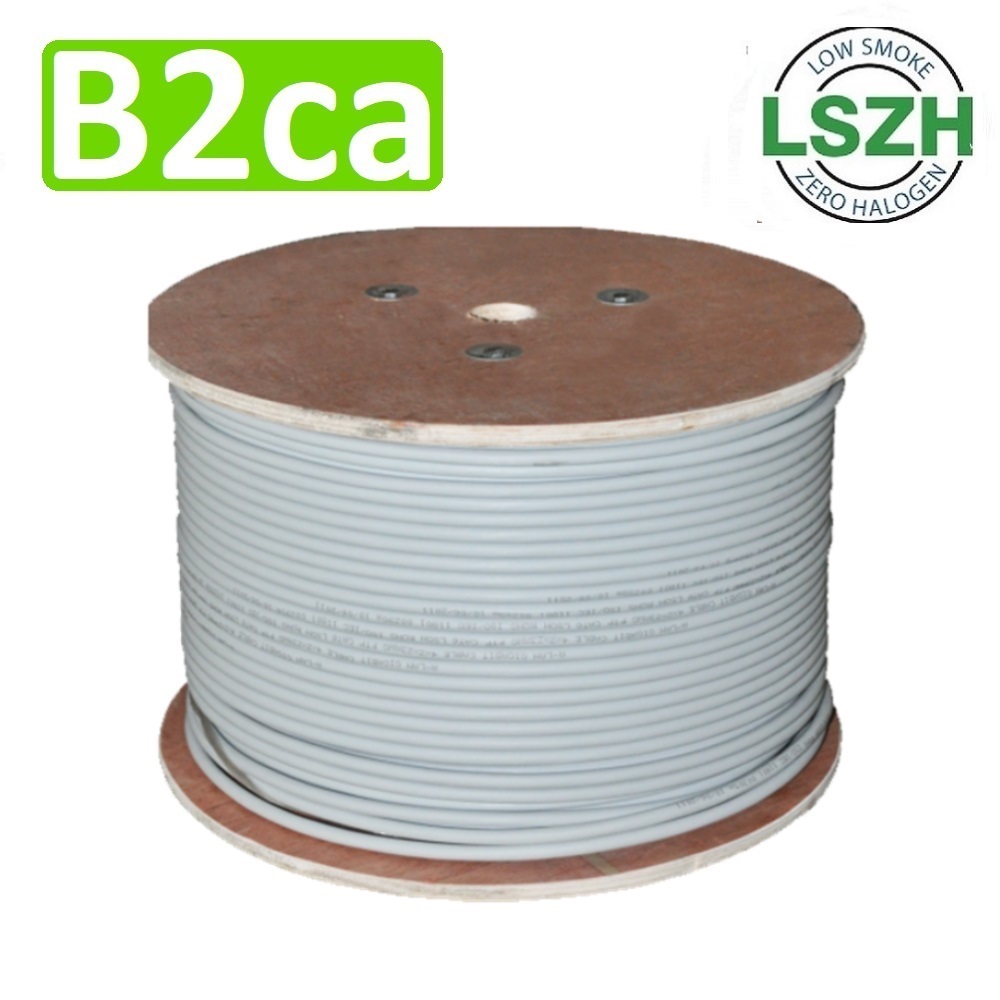

Fire euroclass B2ca
Screen No
Jacket Halogen free, flame retardant material (LSOH/FRNC)
PoE 802.3 af
Color Light gray
ELECTRICAL PROPERTIES AT 20ºC
Conductor DC Resistance ≤ 93,8 Ω /km
Changing resistance ≤ 2%
Insulation resistance (500V) ≥ 5000 MΩ *km
Mutual Capacitance at 800 Hz nom. 48 nF/km
Changing capacitance passive resistance ≤ 1500 pF/km
Characteristic impedance (1-100MHz) (100 ± 15) Ω
Nominal Velocity of Propagation (NVP) 69%
Delay spread Nominal ≤ 535 ns/100m
Angle spread Nominal ≤ 20 ns/100m
Tester installation DC, 1 min. 1000 V
MECHANICAL PROPERTIES
Bend Radius 4 x overall diameter
Max. pulling force 80 N
Temperature range - work -30°C do + 75°C
Temperature range - instalation 0°C do + 50°C
Outer diameter 7,5 mm
Weight / km 60 kg
Packing spoll (500m)
