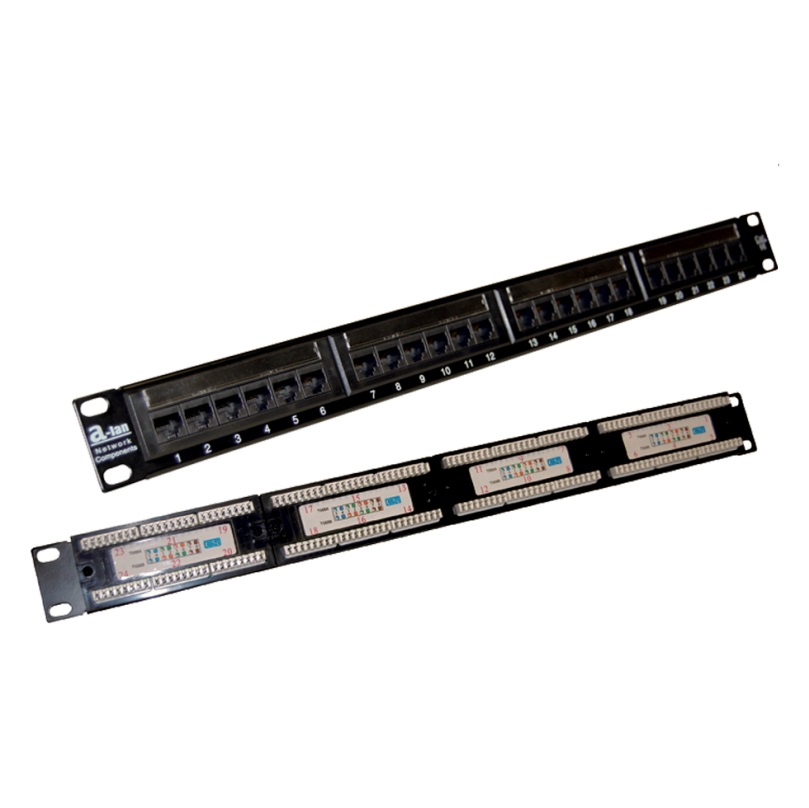

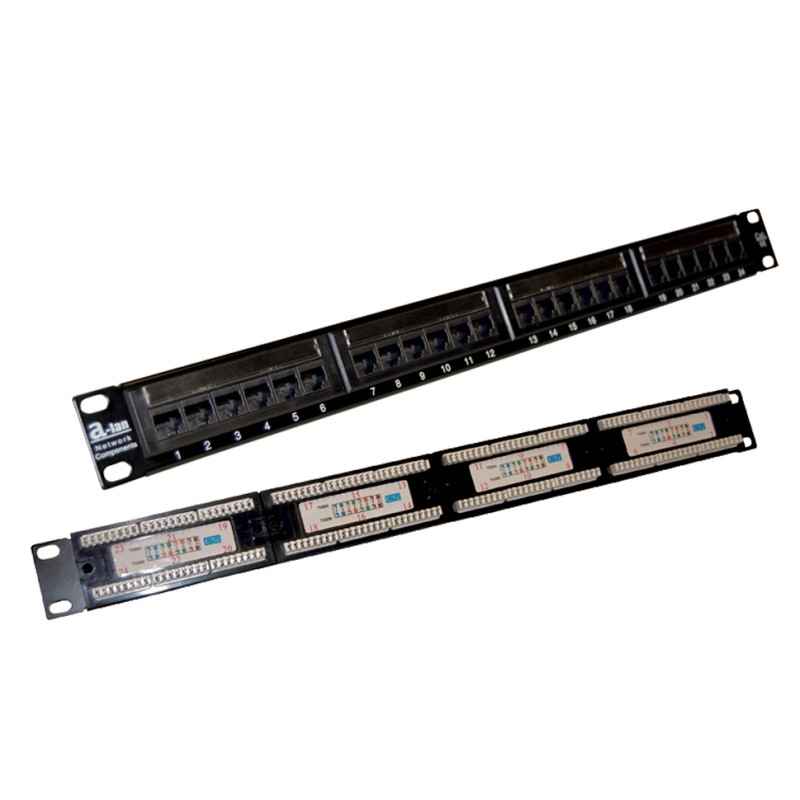

Product description
The basic element of channel of structured cabling system. Designed to perform major and indirect distribution points of fast telecommunications systems.

UTP - unshielded type
STP - shielded type is designed to protection against electromagnetic interference.

- 24x RJ45 ports.
- port designations in the form of numbered fields.
- universal connector slot, compatible with the tool LSA sequence 568A/B.
- fasteners and cable ties included.
- fquipped with a convenient rack mounting.
- 25 years of comprehensive warranty system.

CONSTRUCTION AND ELECTRICAL DETAILS

Category: 5e
Class: D / 100 MHz / 1 Gb/s

Body material: cold-rolled steel sheet 1,5 mm

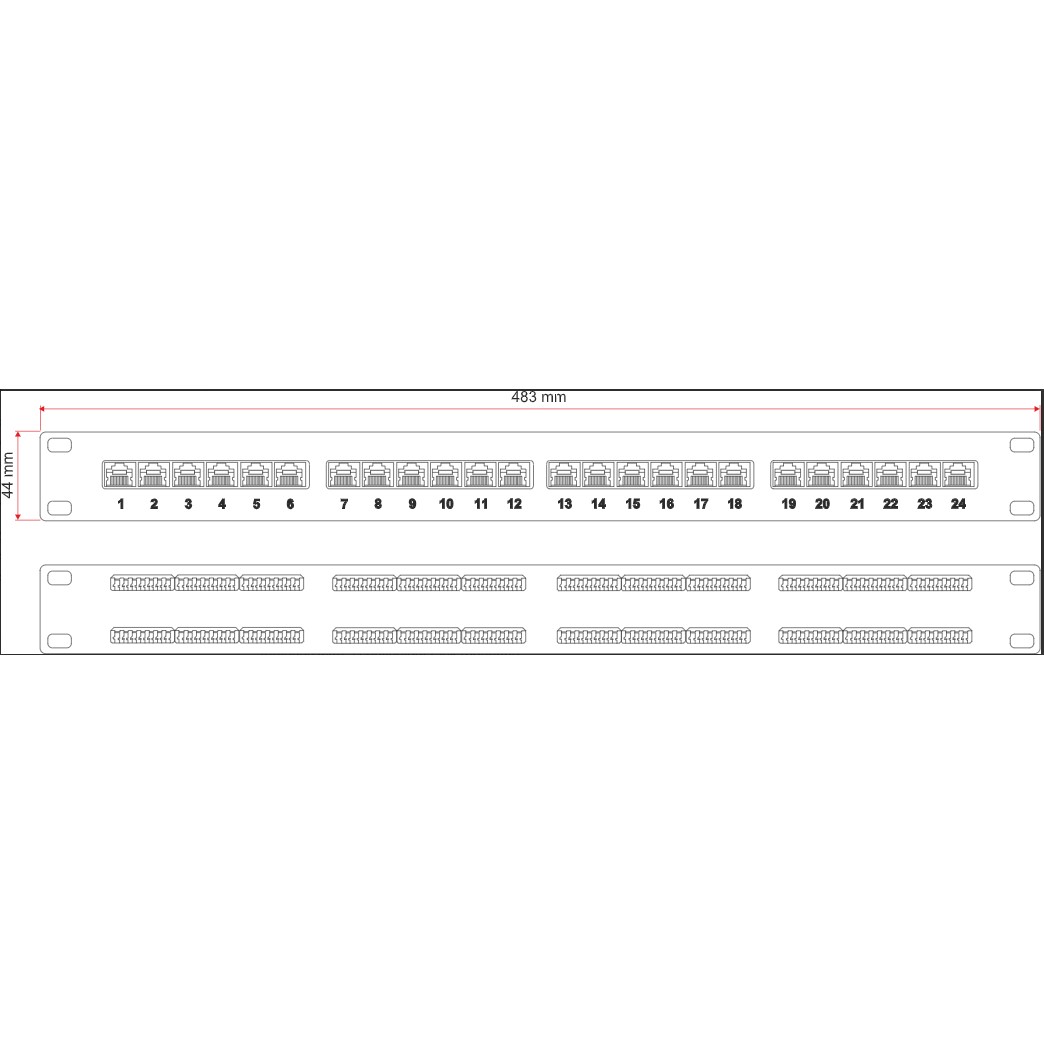

Dimensions:
standard 19’’
width 483mm
height: 44mm
depth: 50mm

Paint: dry powder paint, color: black
Electrical details:
- Resistance: - 20 mΩ
- Isolation resistance: - 500 mΩ
Socket:
- Durability: - 750 cycles
- Contact material: phosphor bronze
- Contact shell: 1,25 μm of gold for 2,50 μm of nickel
- Contact pressure: - 100 g
LSA connector:
- Durability: - 200 cycles
- Contact material: phosphor bronze
- Cables accepted: 22-26 AWG (wire/line)
Socket and connector material:
- Self-extinguishing thermoplastic material, standard UL94VO
