268868-000 | XAGA-1000C-92/30-500A340

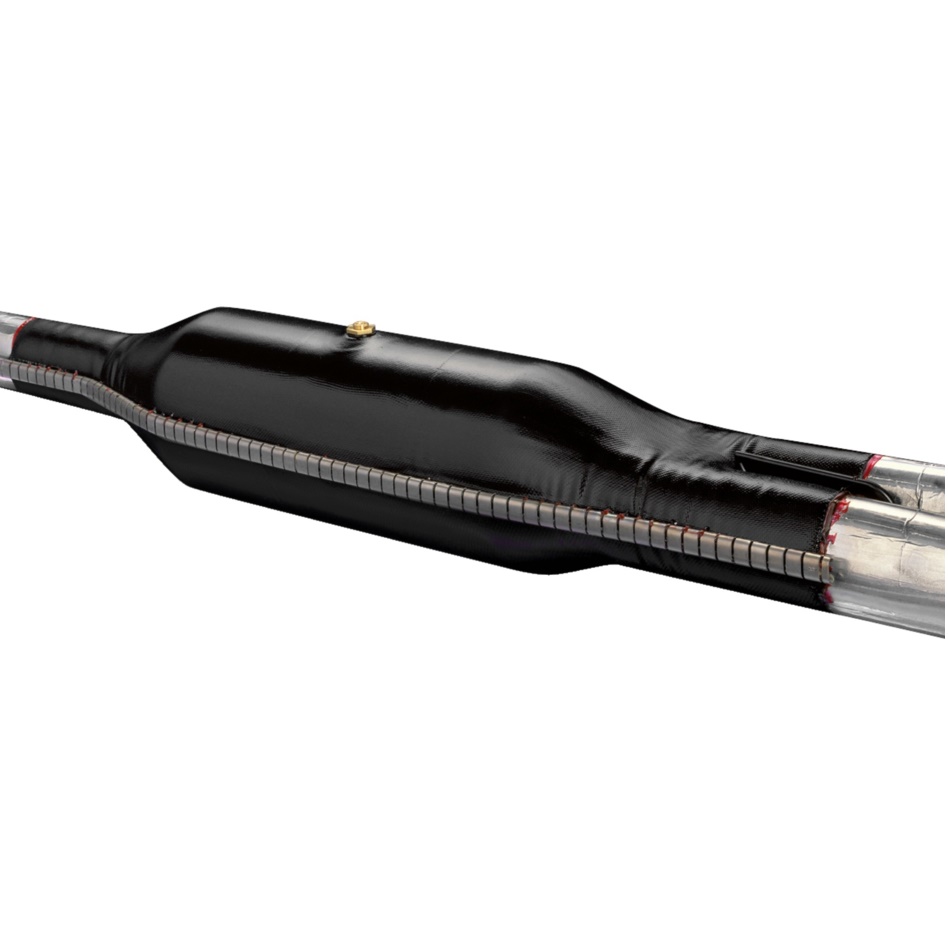

XAGA® 1000 Copper Closure, pressurized, heat shrink, 500 mm sheath opening, 92 mm splice bundle diameter

Features and Benefits
High performance heat-shrinkable closure for both maintenance and new constructions
Suitable for use with all standard copper connector systems. Full range of closures to suit all copper cable sizes

Specifications
Product Classification
Regional Availability EMEA
Product Type Pressurized heat shrink closure
Product Brand XAGA®
Product Series XAGA 1000
General Specifications
Application For use with Polyethylene and metal jacketed cables
Branch-off Clip To be ordered seperately
Cable Capacity, maximum 4
Cable Sealing Type Hotmelt adhesive
Closure Style In-line
Color Black
Mounting Duct | Manhole
Splice Protection Type Metal canister with valve
Dimensions
Single Cable Diameter, minimum 30 mm | 1.181 in
Splice Bundle Diameter, maximum 92 mm | 3.622 in
Sheath Opening, nominal 500 mm | 19.685 in
Dimension Drawing
Click on image to enlarge.
Material Specifications
Material Type Fiber-reinforced multi-layer sealing sleeve
Environmental Specifications
Environmental Space Aerial | Below ground | Buried
Packaging and Weights

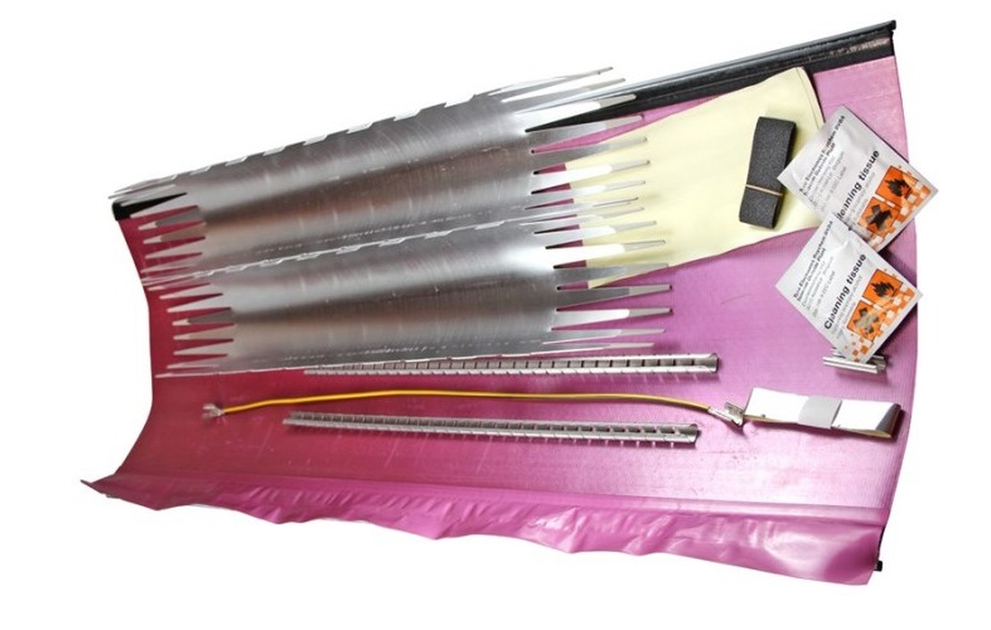

Included Abrasive strip | Aluminum closing strip | Aluminum foil | Cleaning tissues | Flexible stainless steel channels | Heatshrinkable sleeve | Metal canister | Shield continuity wire | Underclips | Valve hardware
Packaging quantity 1
Packaging Type Bag | Carton
Regulatory Compliance/Certifications
Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
