1-Wire temperature sensor TST100
TST100 is a 1-Wire temperature sensor with -40 to +85°C working range and IP65 protection.
Description
TST100 is a 1-Wire temperature sensor. The sensors can be used outdoor because of its IP protection.
The temperature sensor integrates a band-gap temperature sensor element as well as signals processing for a fully calibrated digital output. Used digital signal processing allows accuracy as low as ±0.5°C.
Each sensor has a unique 64-bit serial code, as a result, a few sensors can work on the same 1-Wire bus.
TST100 measures temperatures in the range from -40 to +85°C (-40 to 185°F).

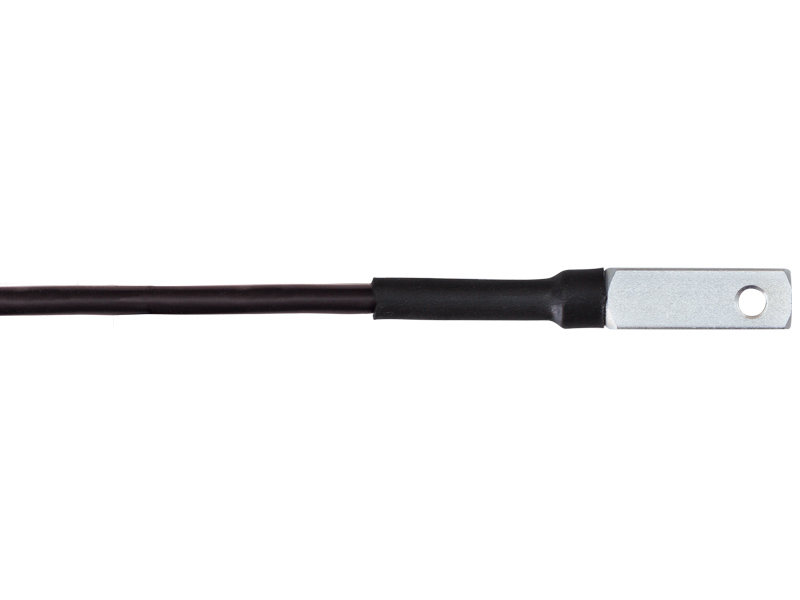

The 1-Wire temperature sensor uses a special flat aluminum head, for direct object assembly. The direct assembly ensures low thermal resistance, respectively fast response of the system.

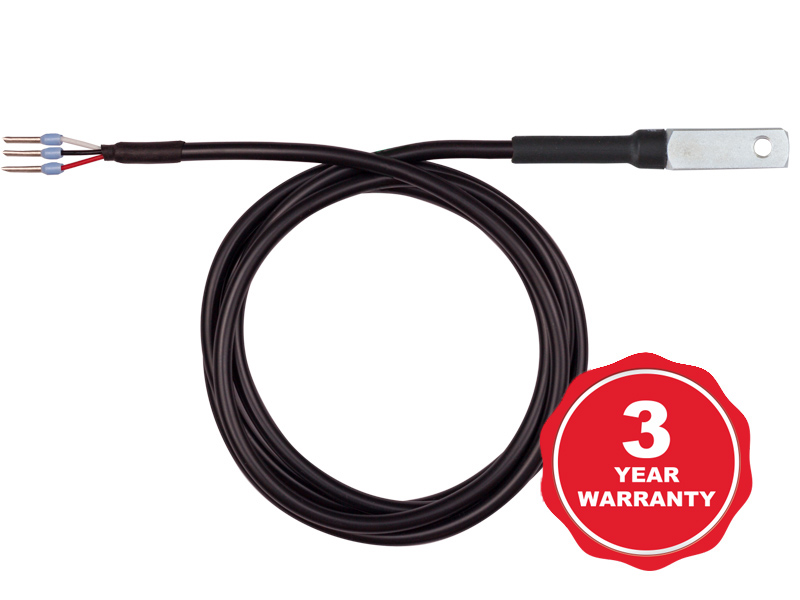

The temperature sensor has one-meter cable with soldered wires for direct connection to the screw terminals of the controller.
Features
±0.5°C accuracy from -10°C to +85°C;
12 bits resolutions;
Aluminum head for low thermal resistance;
IP65 ingress protection;
Very low current consumption;
Each device has a unique 64-Bit serial number.
Applications
Server room and data centers temperature monitoring and logging;
Temperature monitoring inside buildings or machinery;
Heating, ventilation and air conditioning (HVAC) systems;
Process monitoring and control systems.
The 1-Wire temperature sensor can be used with
Ethernet IO module TCW241
Ethernet data logger TCW220

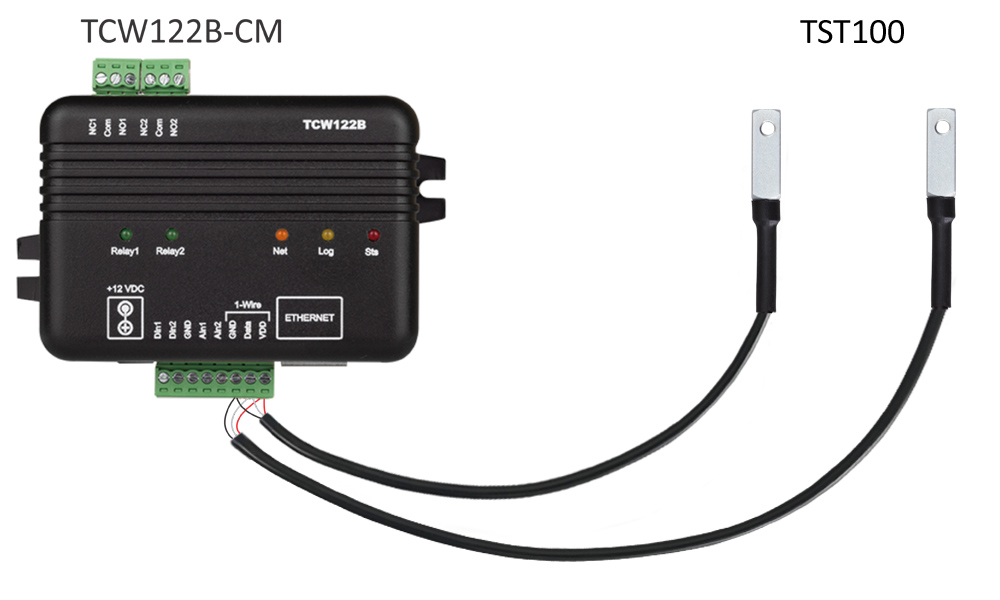

Remote IO module TCW122B-CM
GSM-GPRS remote monitoring controller TCG120
IP watchdog monitoring module TCW122B-WD
Remote environmental monitoring module TCW112-CM
IP watchdog relay board TCW112-WD
