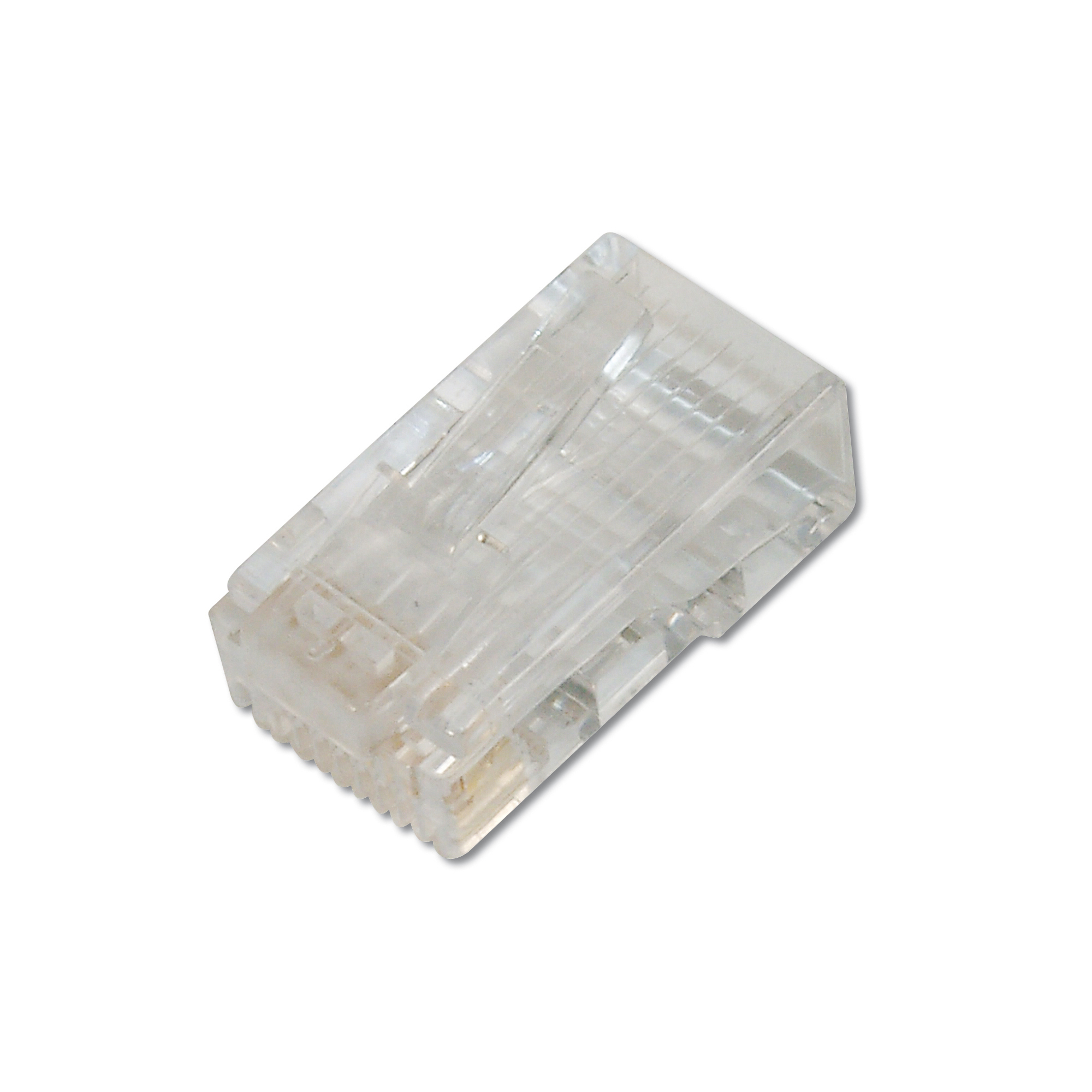

DIGITUS CAT 6 Modular plugs for round cable, unshielded, Pass through connector
Product number: AK-219602
EAN: 4016032316787
CAT 6 Modular Plug, 8P8C, unshielded for Round Cable, pass through connector

Description
Easy assembly by modular crimping tool DN-94004

Technical details
Crimping tool – DN-94025 (Multi Modular Crimping Tool Pass through connectors)
Layout performance: CAT 6, 1GBase-T
Area of application: Patch cable assembly
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
UL certified
Technical properties:
Mating cycles female: - 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Material connector body: Polycarbonat, clear
Connector contact: Phosphor bronze, brass 0.6 μ gold-plated
Flammability: UL 94V-2
Physical properties:
Insertion force: ≤ 30 N
Diameter Cu-Conductor: AWG (27/7 ... 24/7)
Operating temperature: -40 °C to +80 °C
Current carrying capacity: 1A -1.5A at 50 °C
