IP WatchDog2 Industrial
In a user defined period the IP WatchDog2 Industrial detects the status of internet connection, LAN connected devices and RS-232 connected devices.
The IP WatchDog2 Industrial can monitor up to ten channels including up to two RS-232.
In case the internet connection or any monitored device stops responding the IP WatchDog2 Industrial can restart up to two connected devices via its 230V/16A NO/NC relay DO.

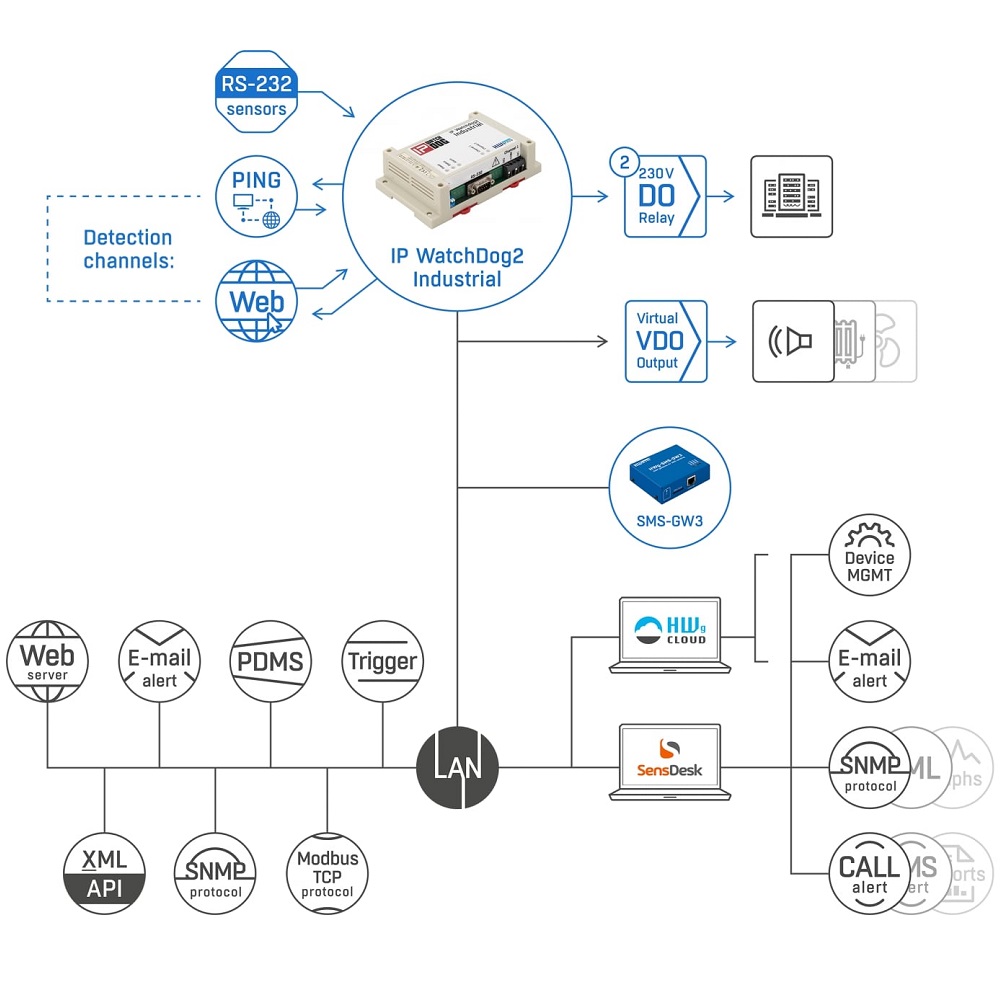

The IP WatchDog2 Industrial uses the following five methods of status detection:
- Ping Out: IP WatchDog2 periodically sends PING requests
- Ping In: IP WatchDog2 waits for a PING from the monitored device
- Web client: IP WatchDog2 monitors the accessibility of a web page
- Web server: IP WatchDog2 waits for a request for its internal WEB page
- RS-232: IP WatchDog2 waits for a specified character sequence in RS-232 data line
Features:
- 10x Monitoring Channel on LAN and RS-232
- 2x Relay Output NO/NC 230V/16A AC
- 1x SNMP Trap; 2x E-mail; 1x -SMS+Ring- (via external GSM gateway or a modem)
- A change of monitored device status sends an alert by e-mail, SMS, SNMP Trap, or activates DO relay and a sound alarm.
- Connected via LAN. Configuration via built-in web server.
- For Ring or SMS alarm use the HWg-Trigger software (external GSM modem required), or a HWg-SMS-GW3 gateway in the same LAN or a modem..
- Data logger for up to 200 records. With the HWg-PDMS software logged data can be exported to MS Excel.
- Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in the HWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).
Applications and usage:
- Activation of a backup internet link in case the primary link fails.
- Restarting irresponsive device connected to LAN.
- Resetting or power cycling of remote devices.
- Routers and switches
- WiFi APs
- IP cameras
- PCs
- etc.
