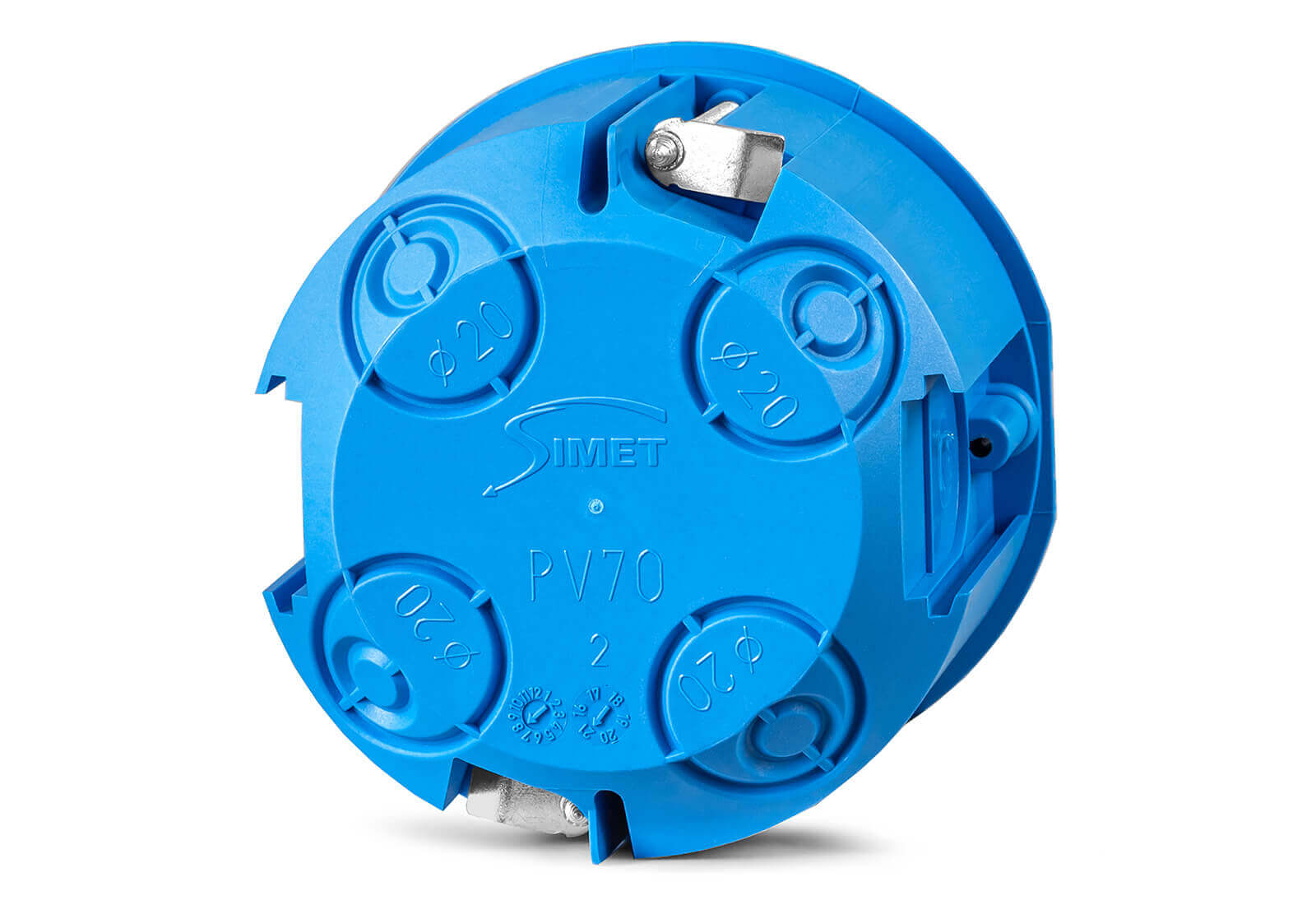

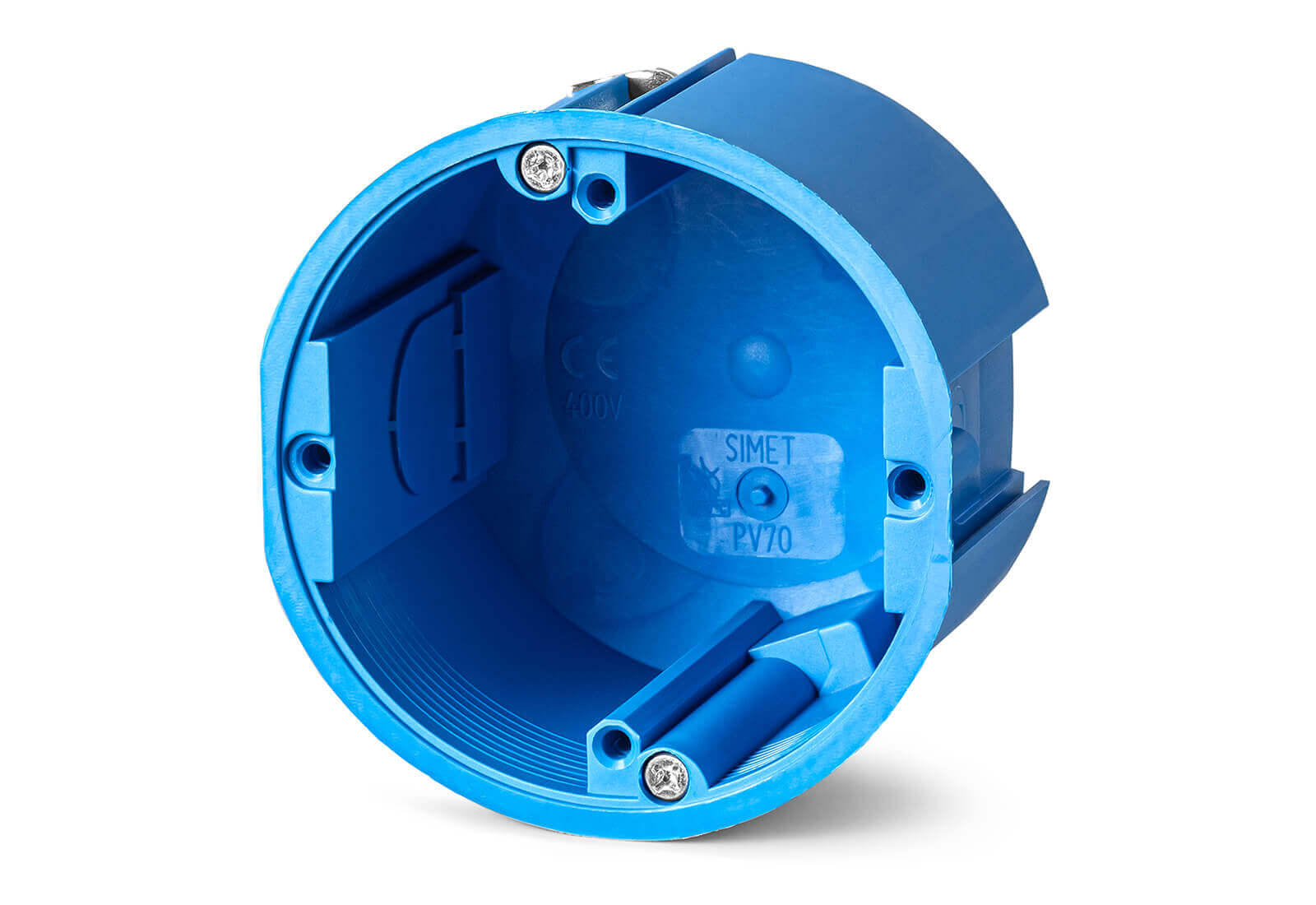

PV70 blue

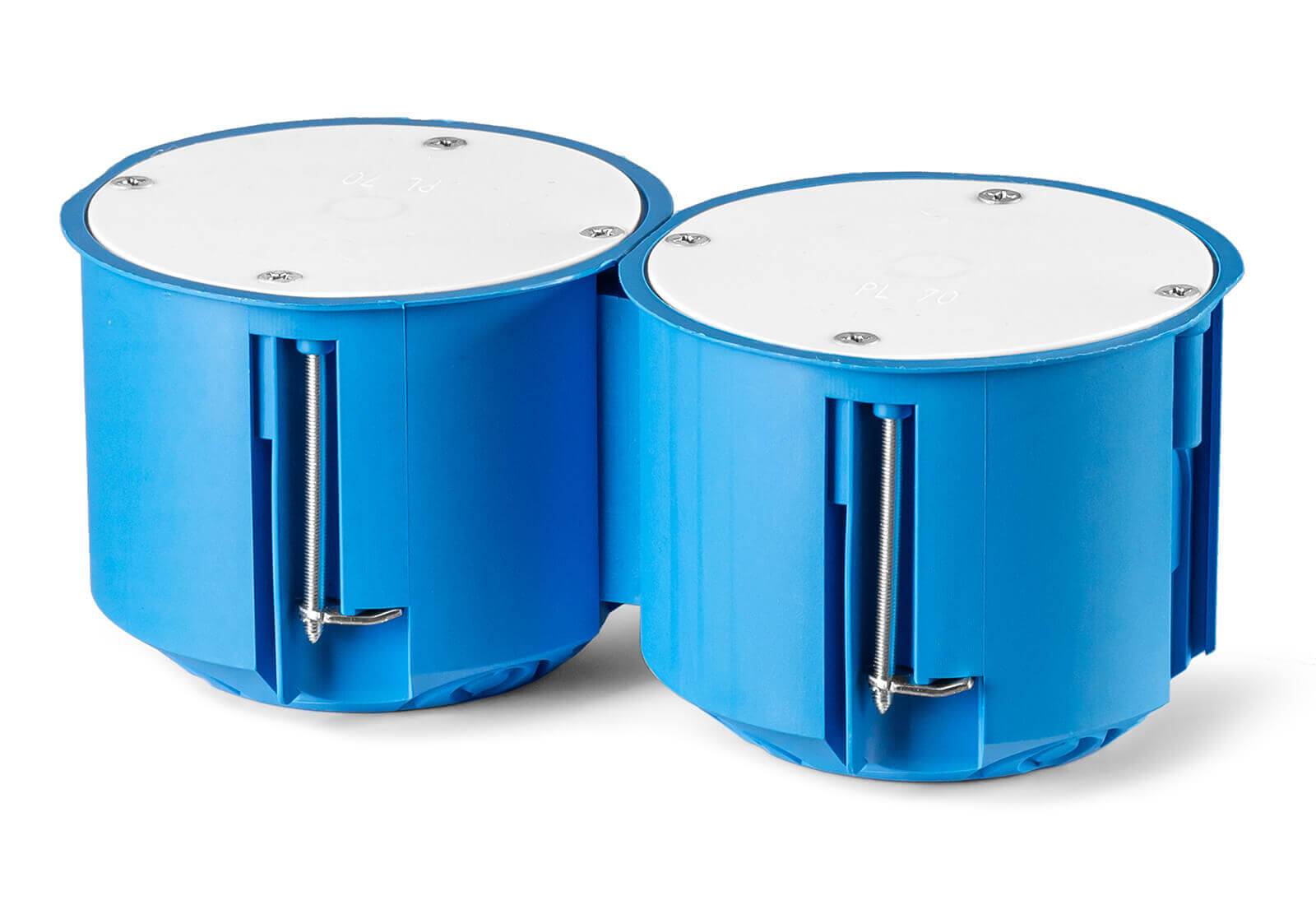

Junction box for cavity walls 70 mm, deep, combined, branched (with cover)

Cat. No.
32150203
EAN code
5907813217616
Name of item
PV70 blue
Qty.
12 pcs.

Colour
blue

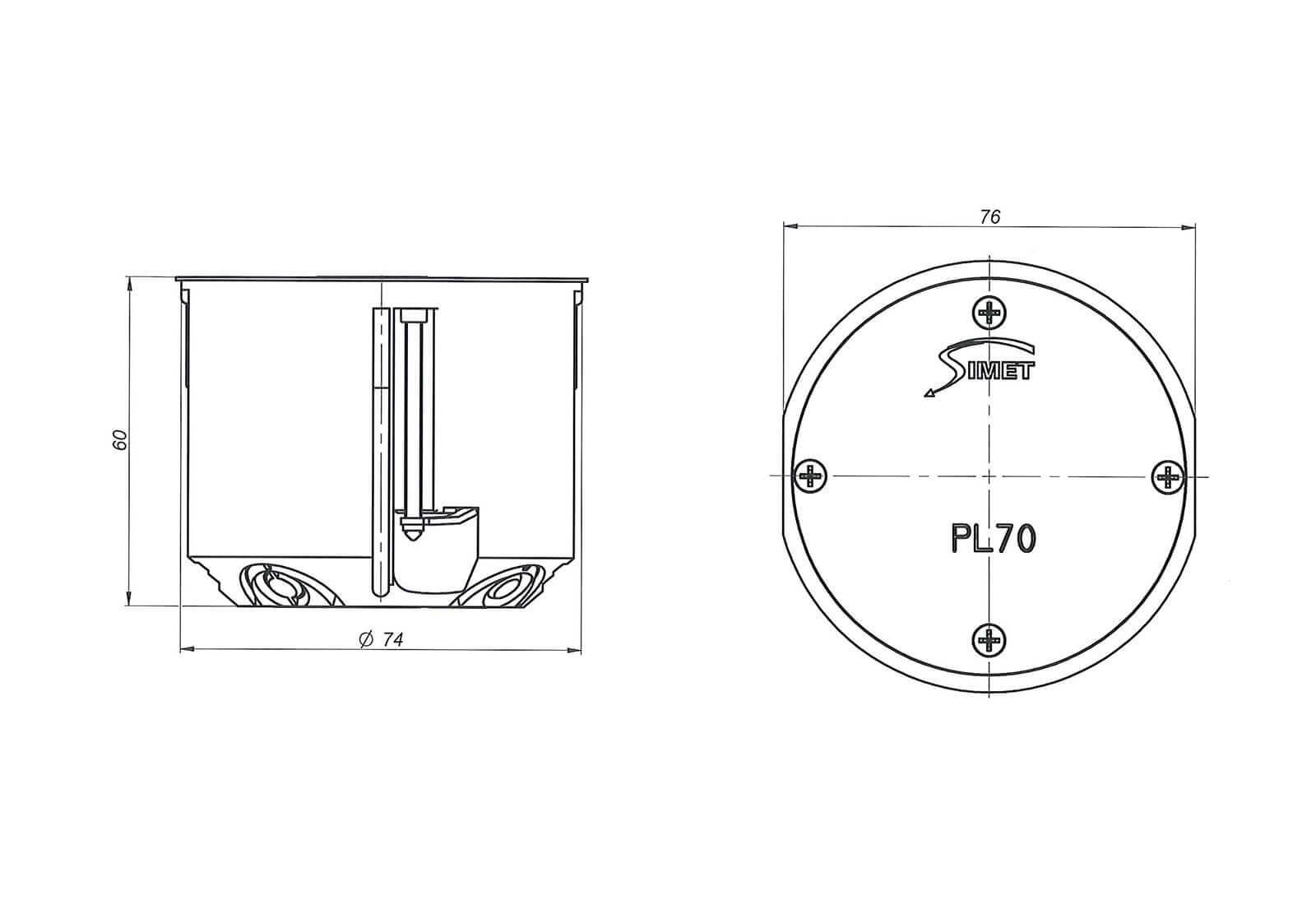

Diameter
74 mm
Depth
58,8 mm
Height
60 mm
Material
polyamide PA 6
Material properties
halogen-free / self-extinguishing
Additional features
combined
Resistance to heat
960 °C
Flammability class
UL94 V0
Protection class
IP30
Rated voltage
400 V
Max rated cross-section
2.5 mm²
