DIGITUS CAT 6A, Class EA Patch Panel, shielded
Product number: DN-91624S-EA
EAN: 4016032288428
CAT 6A Patch Panel, shielded, 1U, 24-port, 8P8C, RAL 7035, 483 mm (19-), grey RAL 7035

Future-oriented standards and high-end quality for your network.


Sturdy patch panel with metal housing
Complete shielding of housing and shield contact

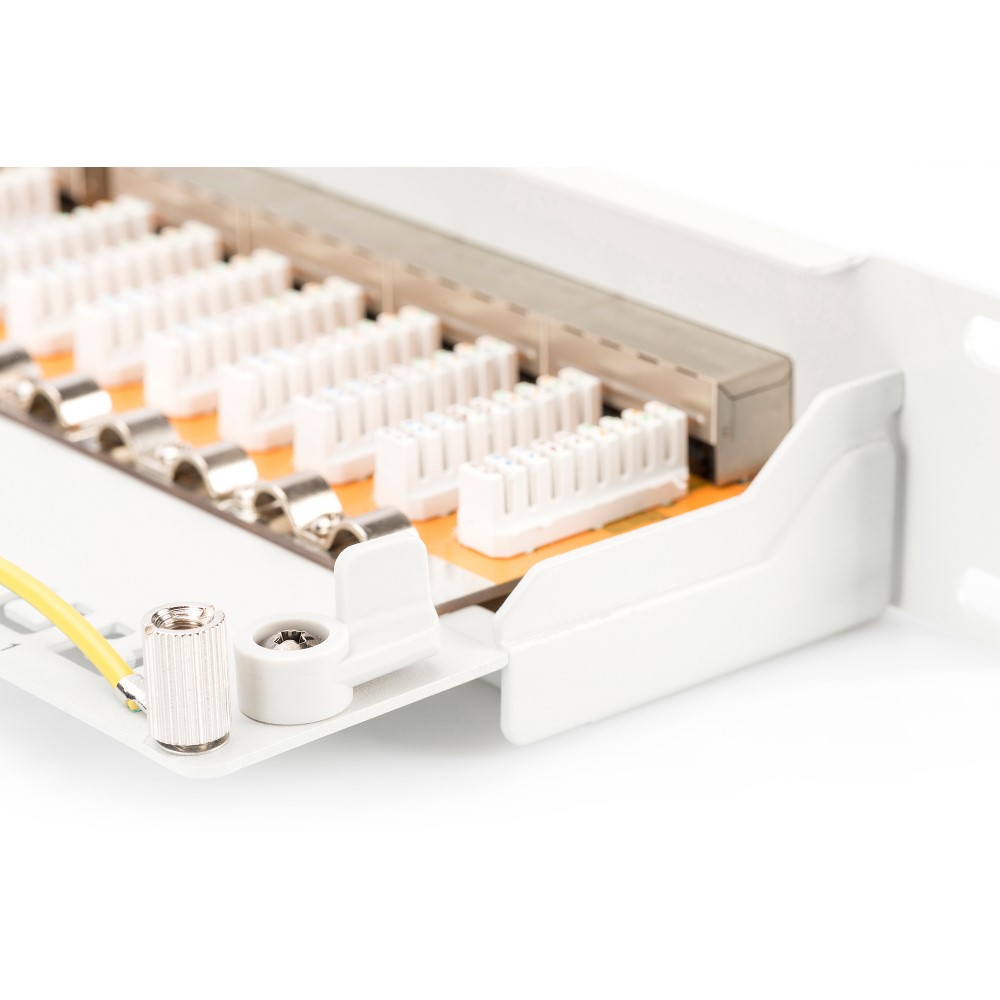

Cable installation by IDC-strips
Central grounding connector
Dielectric strength up to 1500 VDC (contact/ground)
Metal-coated (electrically conductive) cable fixation for grounding the cable shield

Description

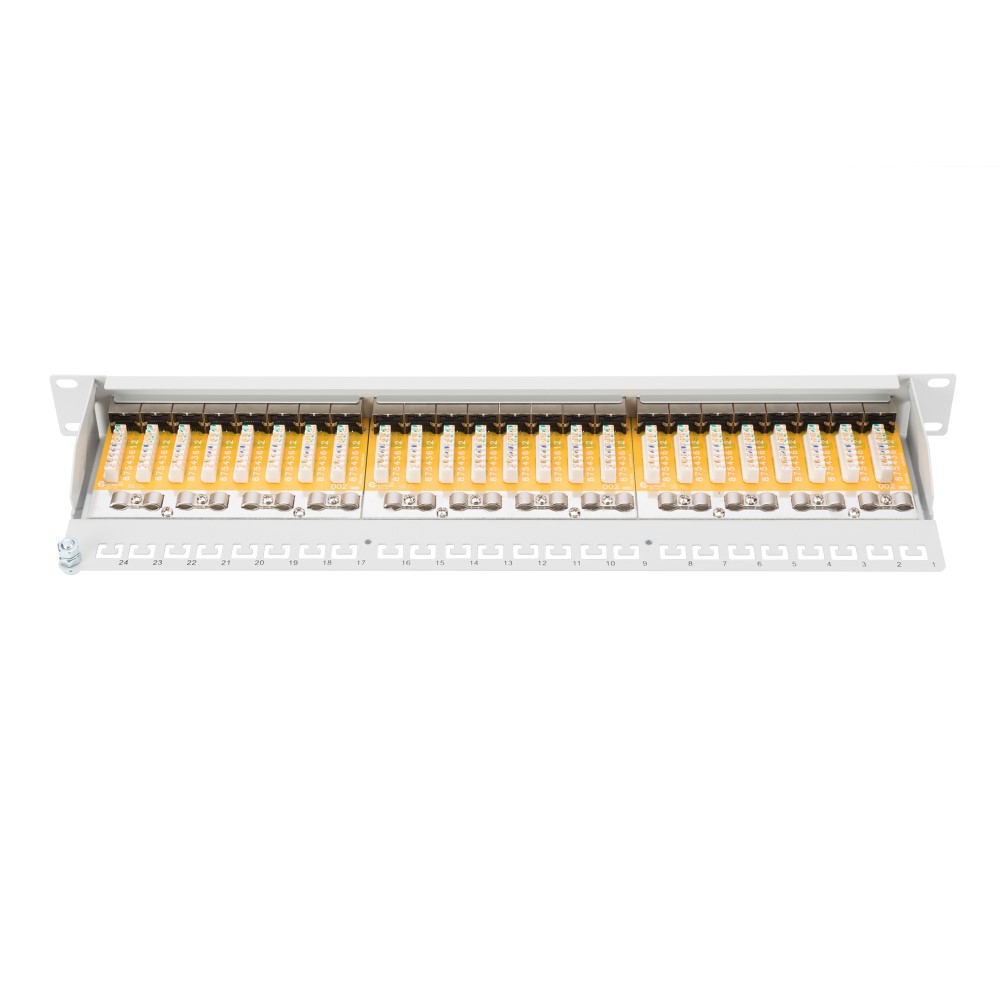

The DIGITUS® -DN-91624S-EA- CAT 6A Patch Panel is available as 24-port version and is made of 1.5 mm cold-rolled steel which makes it a sturdy Patch Panel for 19- rack mounting. It complies with the 802.3at PoE+ and the 802.3af PoE standardand is equipped with dust protection shutters.

Technical details
Transmission characteristics: Category 6A, Class EA
Application areas: Up to 500 MHz, 10GBase-T
Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
General properties:
Suitable for 483 mm (19-) rack mounting

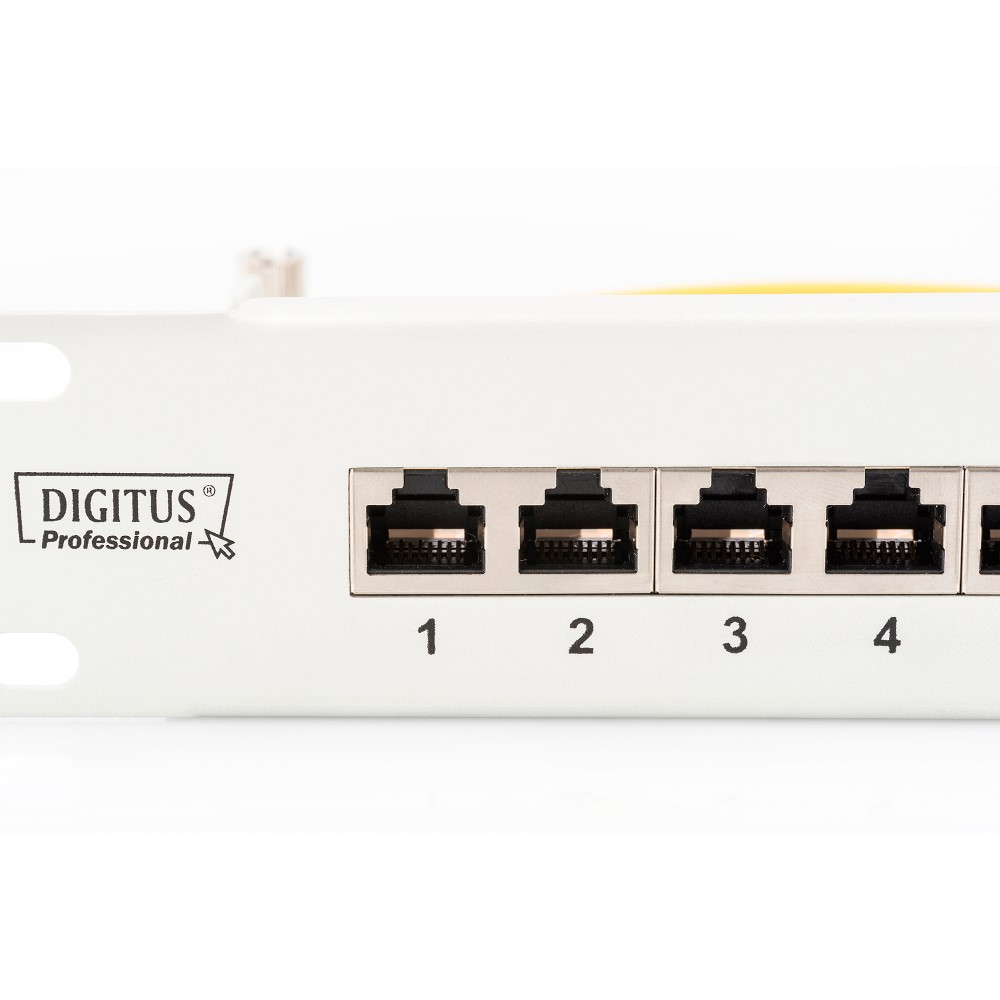

RJ45 sockets, 8P8C
Cable installation via LSA strips, color-coded according to EIA/TIA 568 A - B
Cable fixation by means of quick latches
Central earthing connection
360° shield contacting
Integrated dust protection flaps
Plastic labeling field
CAT 6A Class EA for up to 500 MHz
Mechanical properties:
Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 socket material: ABS UL 94V-0
Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
RJ-45 shielding: Nickel-plated bronze
LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
Earthing wire: Not included in the scope of delivery
Printed circuit board: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Tensile load: 7.7 kg between socket and plug
Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Socket mating cycle: - 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Terminal: - 200 acc. to ISO/IEC 11801, IEC 60603-7-5
Core receptacle: 22-26 AWG solid and stranded conductors
Insulation resistance: - 500 MOhm
Contact resistance: - 20 milliOhms
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Attributes
Color: light grey, RAL 7035
Ports: 24
Units: 1
Category: CAT 6A
