Technical Specification

Model DH-PFS3005-4P-58

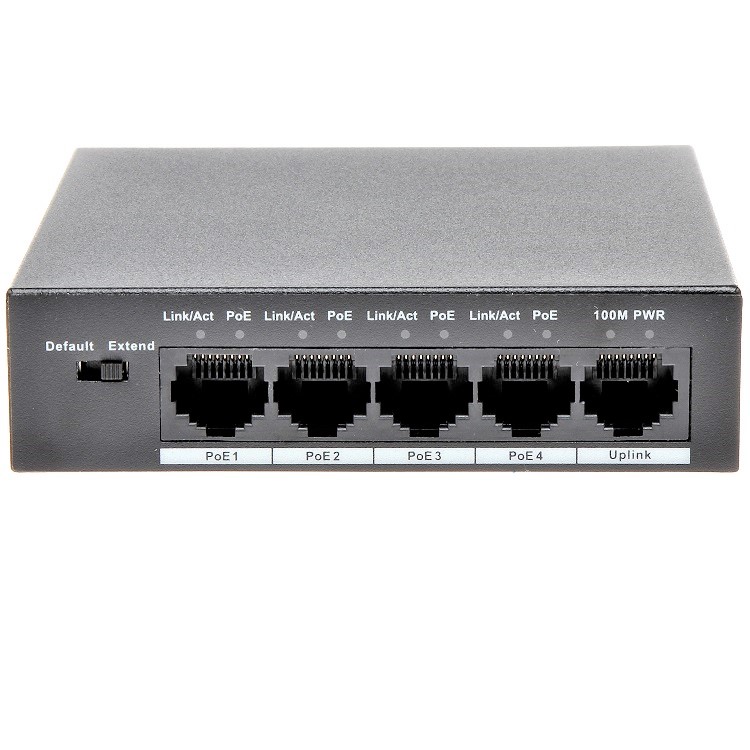

Ethernet Port 1*10/100 Base-T 4*10/100 Base-T (PoE power supply)
PoE Power Consumption Each power ≤30W, Total≤58W
PoE Protocol IEEE802.3af, IEEE802.3at
Switching Capacity 1Gbps
Packet Forwarding Rate 744Kpps
Packet Buffer Memory 448Kb
MAC Table Size 1K
Flow Control Enable
Application Humidity 10%~90%

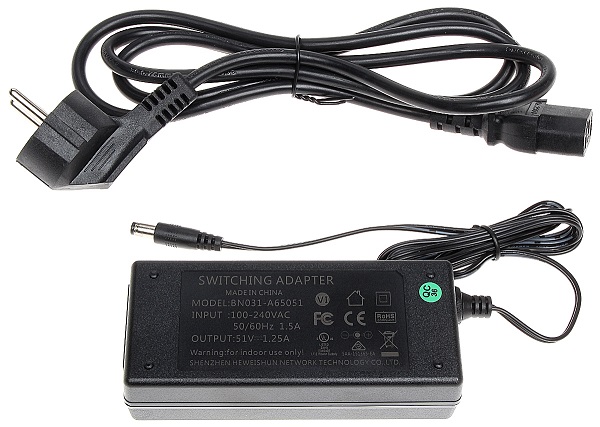

Power Default DC51V/1.25A power adapter
Lightning Protection Common Mode 2KV Differential Mode 1KV
Working Temperature -10°C~50°C
Weight 259g
Dimension(W×D×H) 100mm×100mm×26mm
