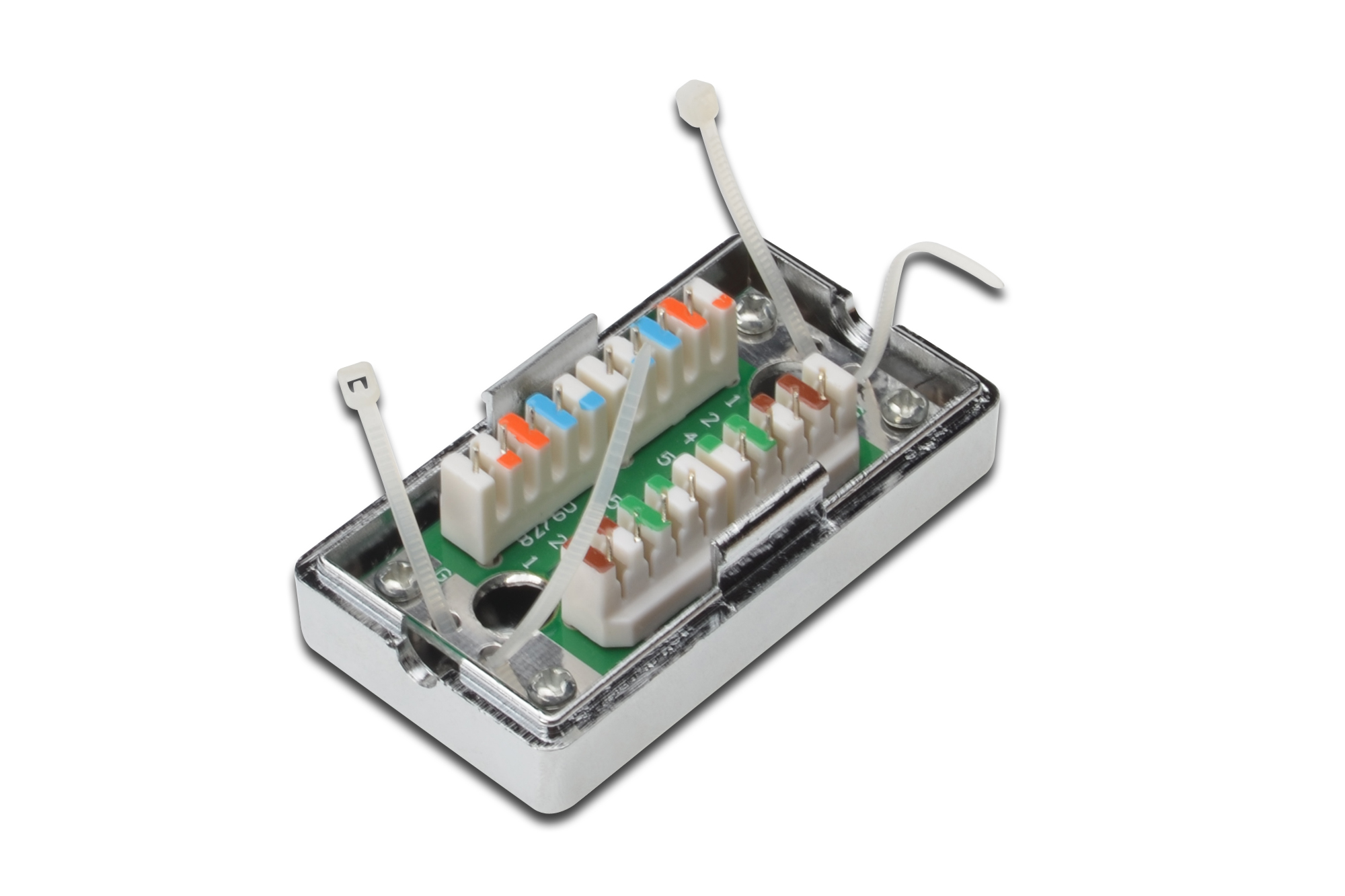

DIGITUS CAT 5e Connection module for Twisted Pair Cables
Product number: DN-93902
EAN: 4016032266495
Connection module for Twisted Pair Cables LSA, shielded, CAT 5e

The perfect CAT 5e solution to connect two Twisted Pair Cables
Extend your IT infracstructure or use it for an easy replacement of a broken cable without installation a whole new segment
Easy wire installation possible due to color coded LSA strips

Description
The DIGITUS® Connection module is for the purpose of connecting or extention of Twisted Pair Cables.

Technical details
Transmission properties: Category 5e
Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for installation in trunking, surface and flush mount
Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A - B
Suitable for connection of installation cables - extension of cables, replacing of defect cable links
Integrated strain relief for installation cables
Suitable for cables with AWG 22-26 diameter
Technical properties:
Housing material: ABS UL-94V-0
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: - 500 MOhm
Contact resistance: - 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
