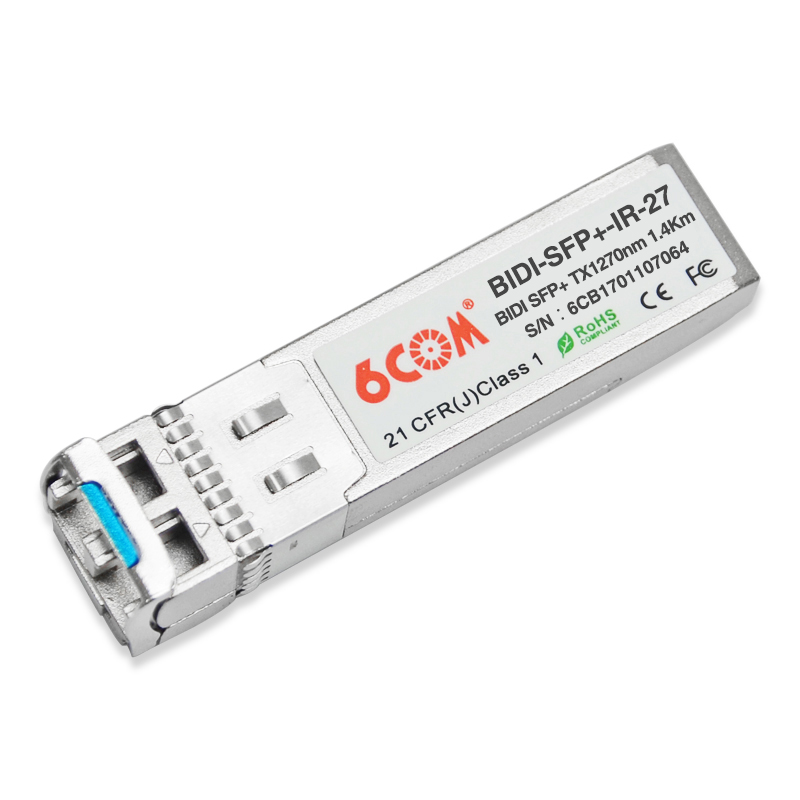

Model No： BIDI-SFP+-IR-27

Data Rate： 10G
Wavelength (nm)： Tx1270/1330
Source： DFB+PIN
Media Type： SMF
Tx Power (DBM)： -6.5~0.5
Tx Sens (DBM)： -14
Temperature： 0ºC ~ +70ºC
Connector： LC
DDM： with
Reach： 1.4km
Certificate： CE,RoHs,FCC
Brand： 6COM

Features

Up to 10.7Gbps Data Links
Single Mode LC Receptacle Bi-directional Transceiver
Up to 1.4 km transmission on SMF
Power dissipation-1.5W
1270nm DFB laser and 1550nm PIN receiver
2-wire interface with integrated Digital Diagnostic monitoring
EEPROM with Serial ID Functionality
Compliant with FC_PI_4 REV 7.0
Compliant with SFP+ MSA with duplex LC connector
Single + 3.3V Power Supply and LVTTL Logic
Operating case temperature: 0~+70ºC
