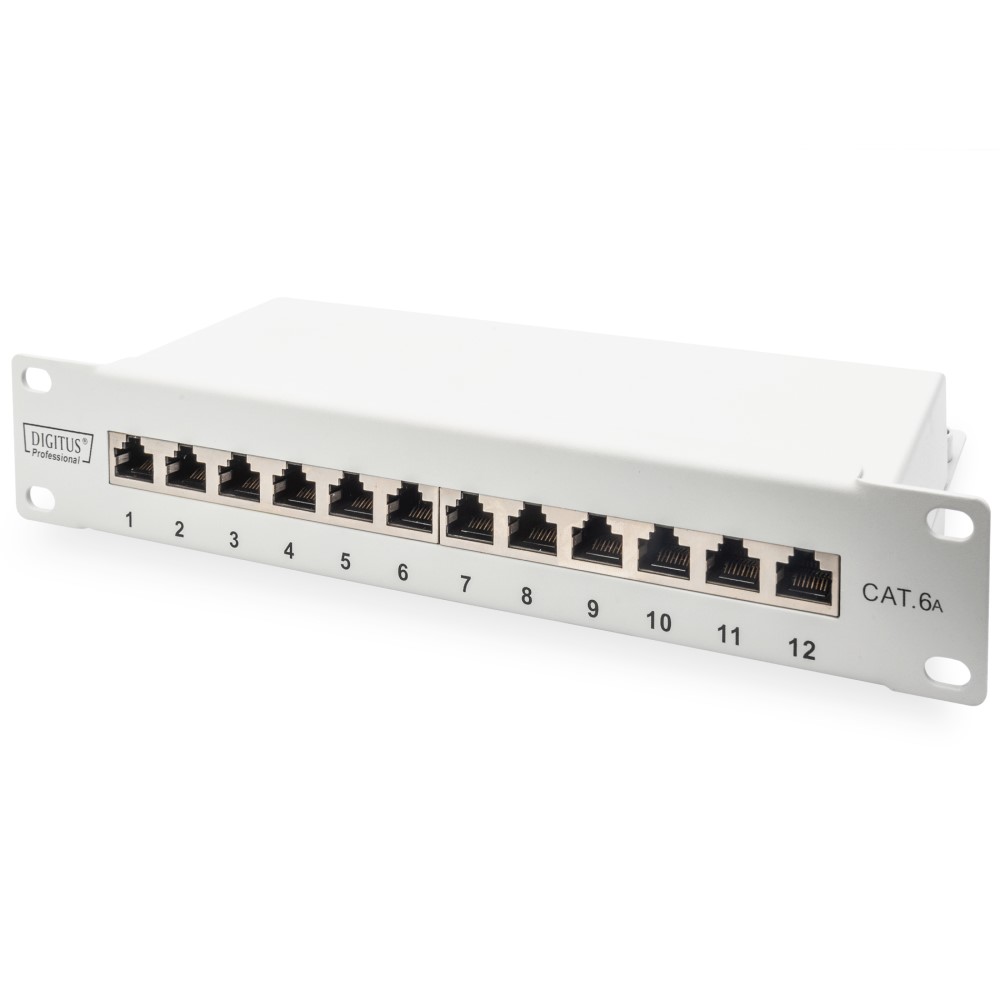

Transmission properties: Category 6A, Class EA
Area of application: Up to 500 MHz, 10GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
Suitable for surface mount installation
RJ45 female, 12P12C

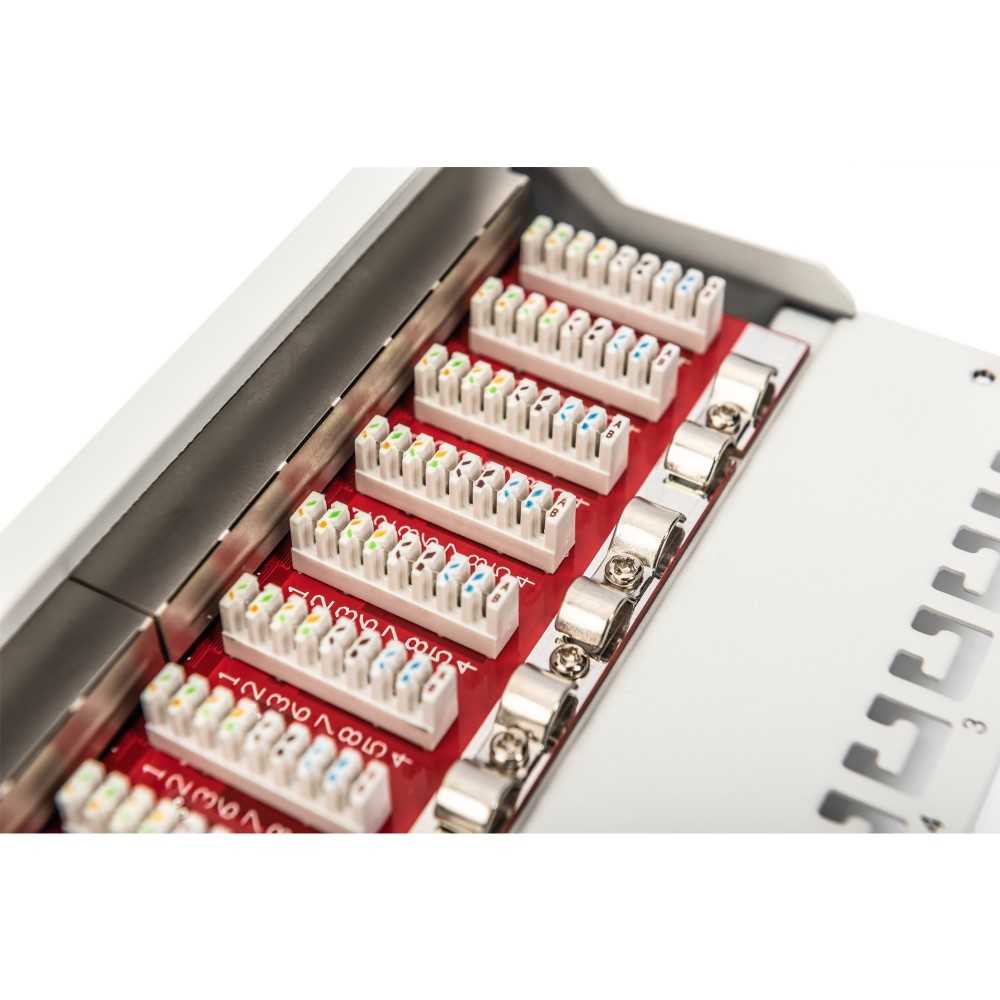

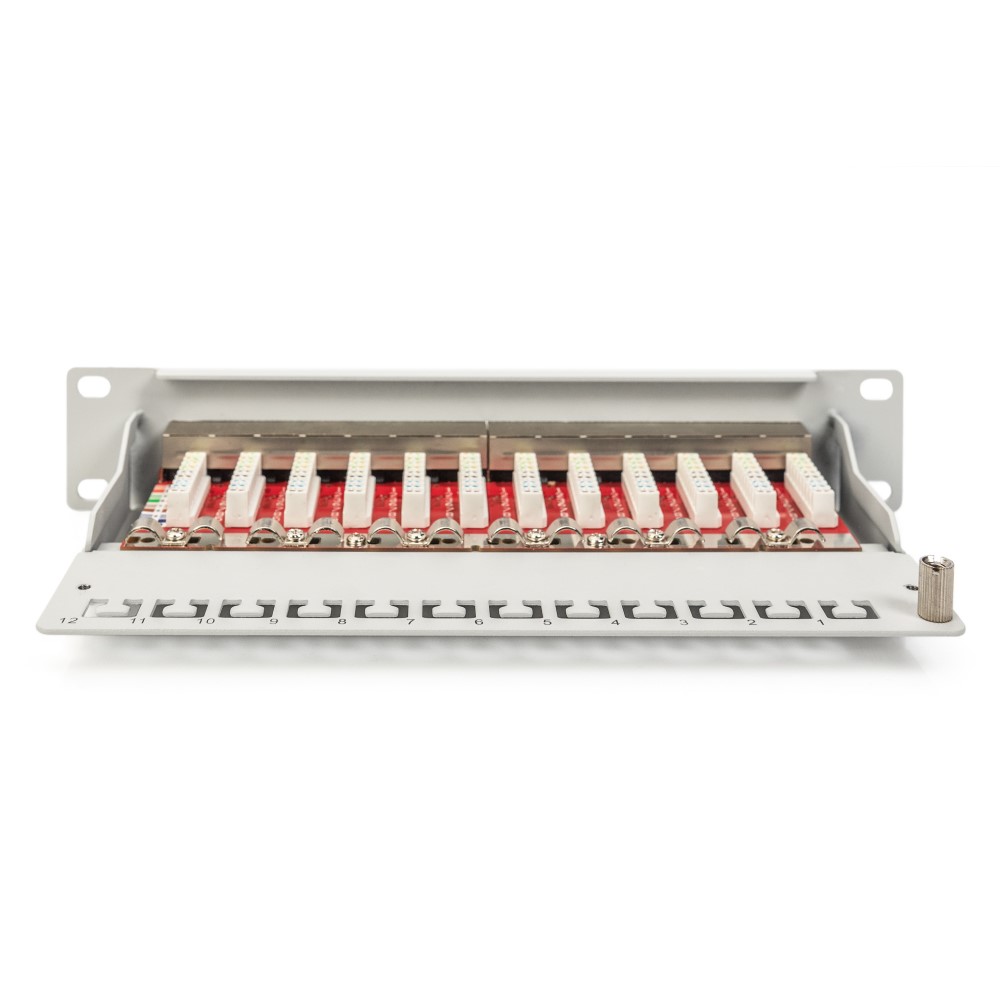

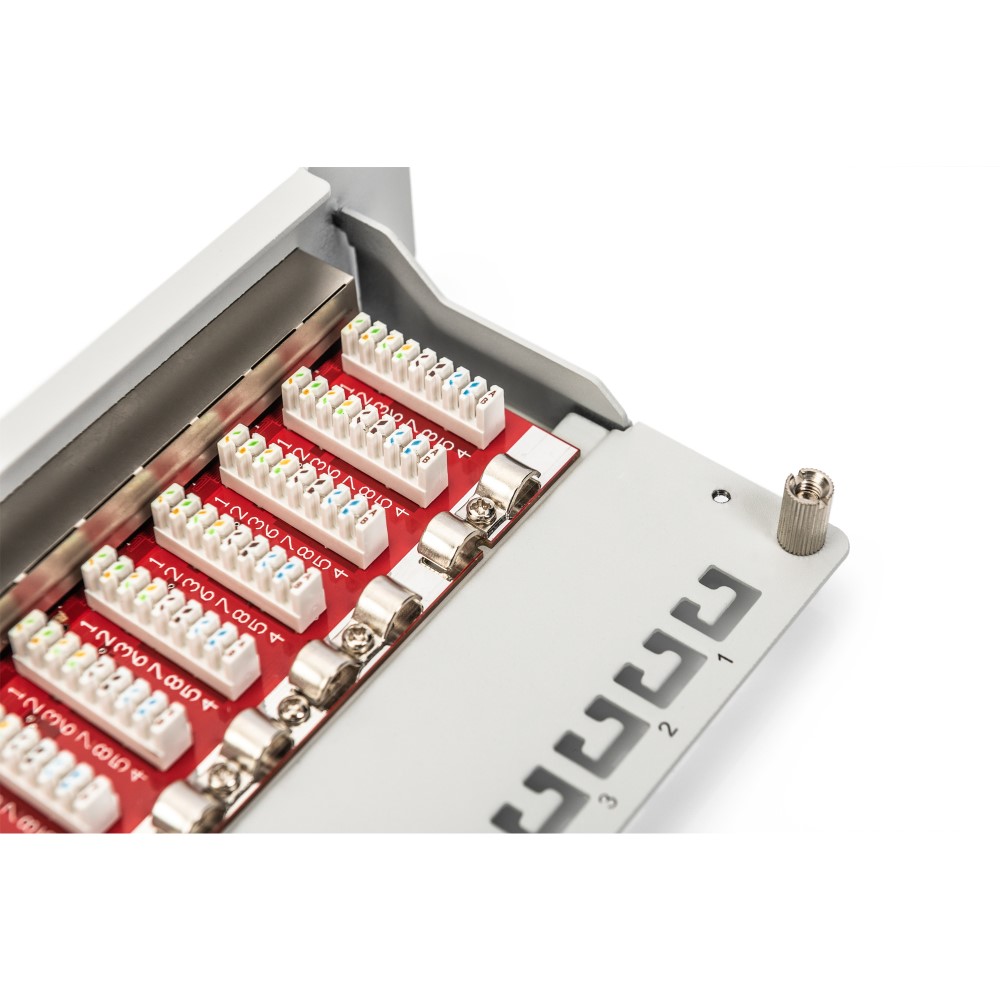

Cable installation via IDC strips, color coded according to EIA/TIA 568 A - B

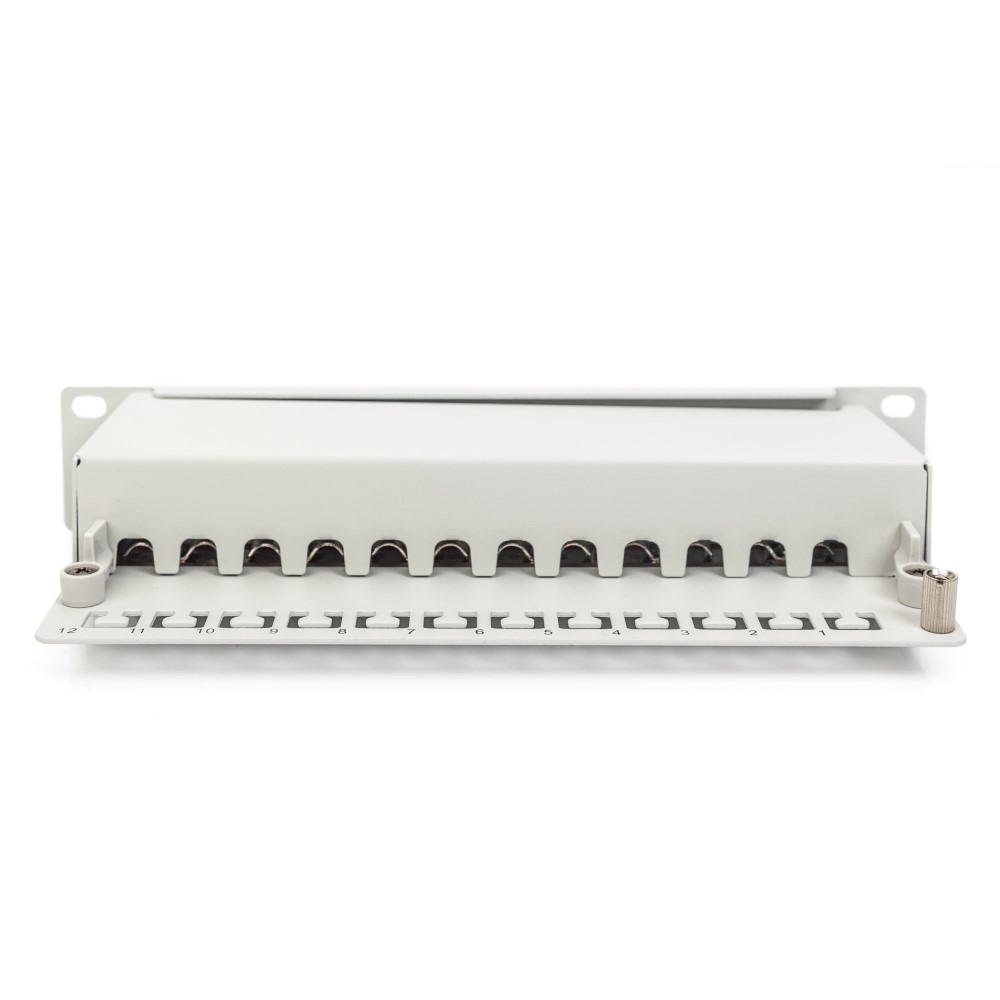

Cable fixing with cable ties
Central ground connection
360° shield coverage
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
IDC termination clamp: Krone IDC+, UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included
Conductor plate: FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: - 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: - 200 acc. to ISO/IEC 11801, IEC 60603-7-5
Insulation resistance: - 500 MOhm
Contact resistance: - 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Color grey (RAL 7035)
Category: Cat.6A
Ports: 12
Units: 1
IDC wire size: 22 – 26 AWG solid and stranded conductor
Color: light grey, RAL 7035
Ports: 12
Units: 1
Category: CAT 6A
