A/C unit type X3,, X4
Direction of A/C installation into the cabinet width
C set 38 pcs M5x12 ; 38 pcs rubber sealing

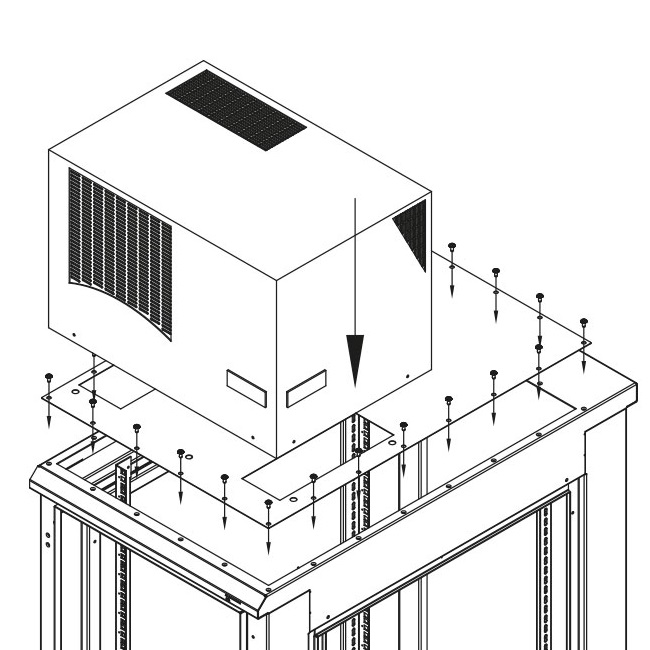

In order to utilise the maximum potential of A/C units with cooling air directed properly according to all equipment needs, we supply installation adapters for RDE and RIE cabinets. This is a metallic panel which is screwed to the large-sized opening at the top of the cabinet where the installation of A/C is required. Adapters are symetric which means that rotating is simple. All sizes of adapters are shown in the table below. For easy access to the controlling panel it is possible to install it in two positions with simply plugging into the connector (see installation manual).

Cooling units 800 mm wide can be mounted on cabinets 800 mm wide only.
Cooling units 600 mm wide can be mounted on cabinets 600 mm and 800 mm wide.
