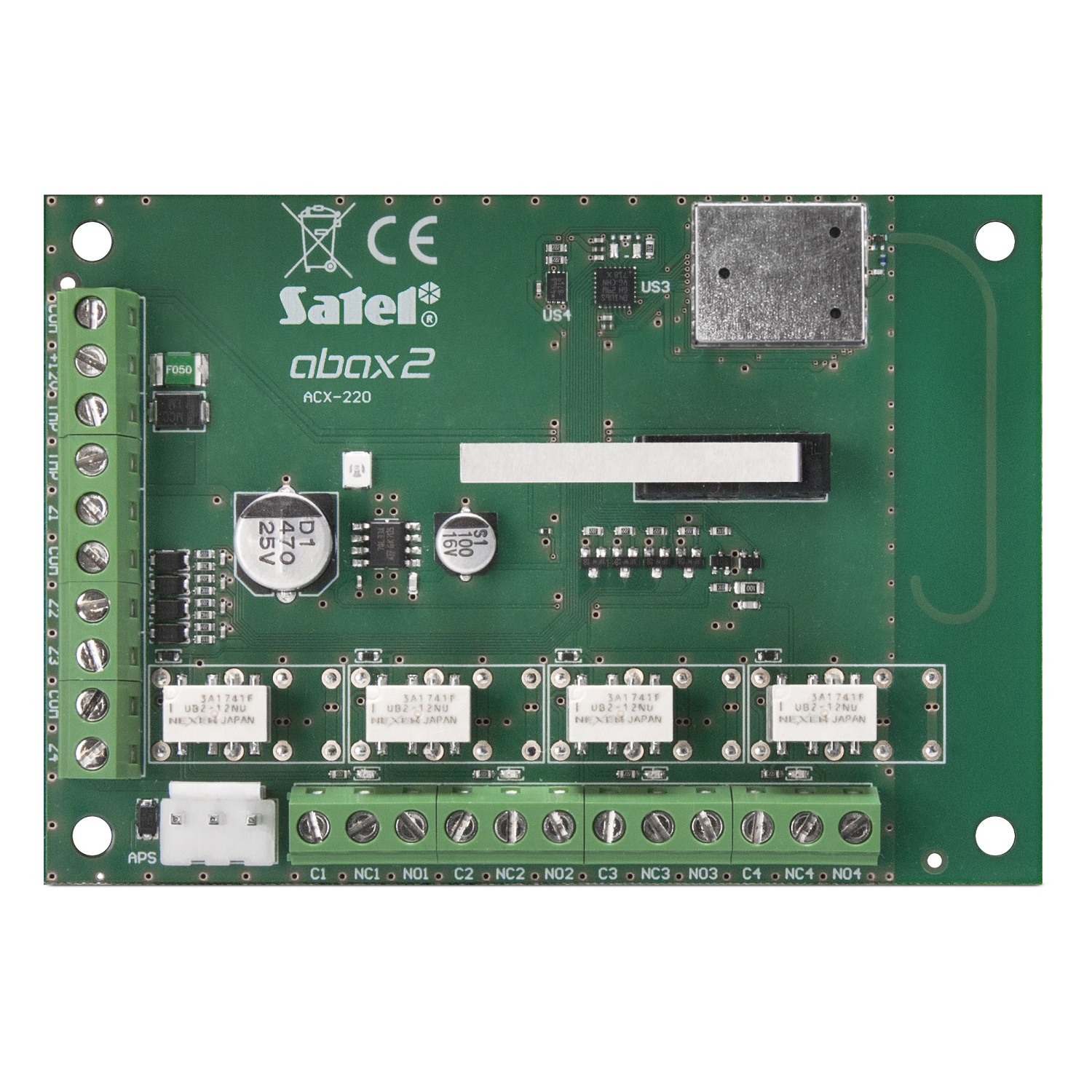

ACX-220
Wireless expander of wired zones/outputs
The ACX-220 module enables wired devices (detectors, sirens, etc.) to be used in the ABAX 2/ABAX wireless system. It has 4 programmable zones with support for the NO and NC type wire detectors and EOL, 2 EOL configurations, as well as 4 programmable relay outputs.

Configuration of settings and updating of firmware of ACX-220 are carried out remotely. In the ABAX 2 system, two-way radio communication is encrypted using is AES encrypted.

The expander is supplied with 12 V DC voltage and works together with the APS-412, APS-612 or APS-1412 buffer power supply units.

The device has a tamper switch that reacts to opening of enclosure.

adding wired devices to the ABAX 2 or ABAX system
compatible with:
ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 radio signal repeater
ABAX (ACU-120, ACU-270 and older ACU-100, ACU-250), INTEGRA 128-WRL control panel and ARU-100 radio signal repeater
range of radio communication in the open area:
in ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280)
in ABAX: up to 500 m
4 programmable zones - support for wired detectors in NO, NC, EOL, 2EOL/NO and 2EOL/NC configurations
4 programmable relay outputs
remote configuration and update of the firmware
tamper protection
power supply: 12 V DC, compatible with APS-412, APS-612, APS-1412
