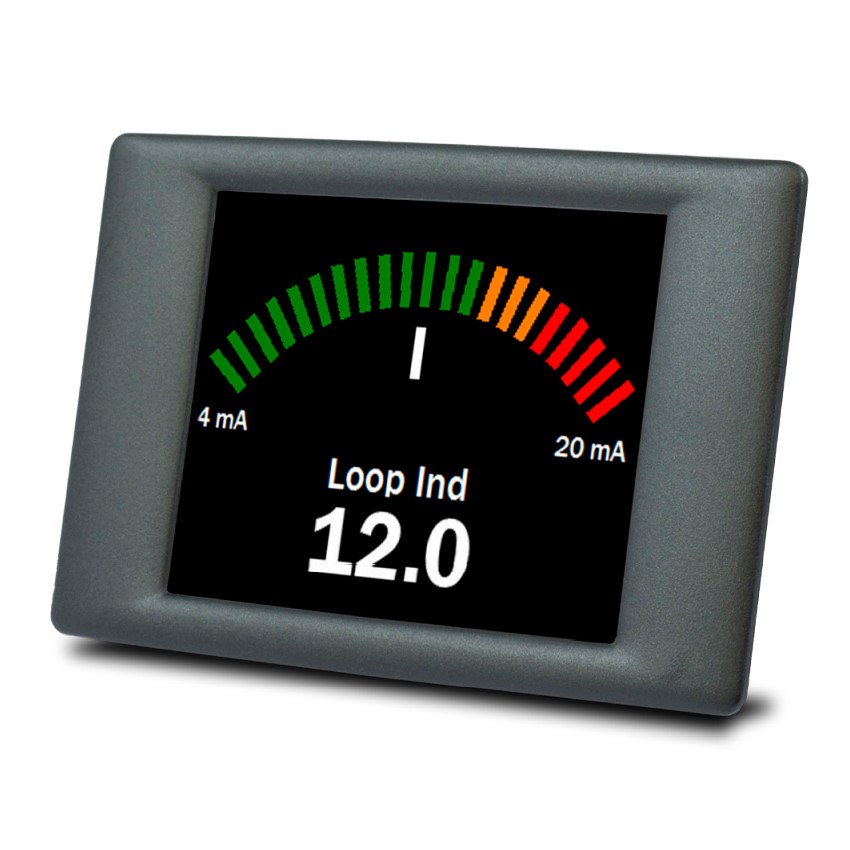

The SGD 35-M420 is a programmable process meter featuring 4-20mA analogue inputs, alarm outputs and 3.5” TFT colour touchscreen display. Configured using the free PanelPilot M Software for Windows, choose from an ever-increasing number of configurations including bar-graph, tank level, analogue style and trend graphs. Then customise colours, text labels, units and input scaling before uploading to a display via USB.
Display: 3.5” colour TFT screen
Resolution: 320 x 240 pixel (QVGA)
Operating Voltage: 4 to 30V d.c.
Measurement range: 4 to 20mA
Viewing Area: 70.1 x 52.7 mm
