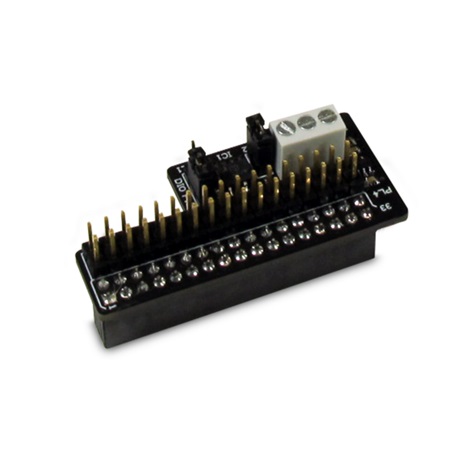

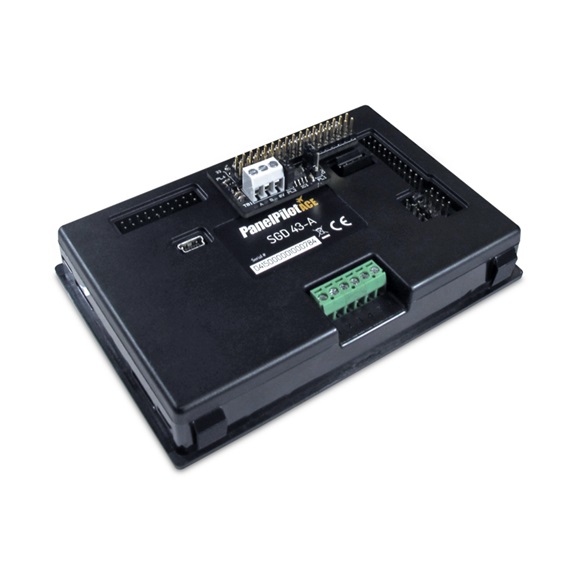

The S43-RS485 is an accessory to the PanelPilotACE range and is compatible with the 4.3” PanelPilotACE display module (SGD 43-A). The S43-RS485 mounts on the rear of the SGD 43-A and provides a 3 wire RS485 interface as well as an optional 120Ω terminator.

This device can be connected to via the A (Data+), B (Data-) and GND pins and provides half duplex communication.

The software currently supports ASCII based serial communication as well as the MODBUS (RTU) protocol. More protocols are being added.

Receiver Output High Voltage: Vcc-0.6 (4.4V)
Receiver Output Low Voltage: 0.17 Typical (0.4 Maximum)
Input Current (V = 12V): 80uA Typical (125uA Maximum)
Input Current (V=-7V): 50uA Typical (-100uA Minimum)
Max Data Rate: 20Mbps
A/B Voltage Absolute Maximum: -8V - +13V
Operating Temperature Range: 0 to 40°C
