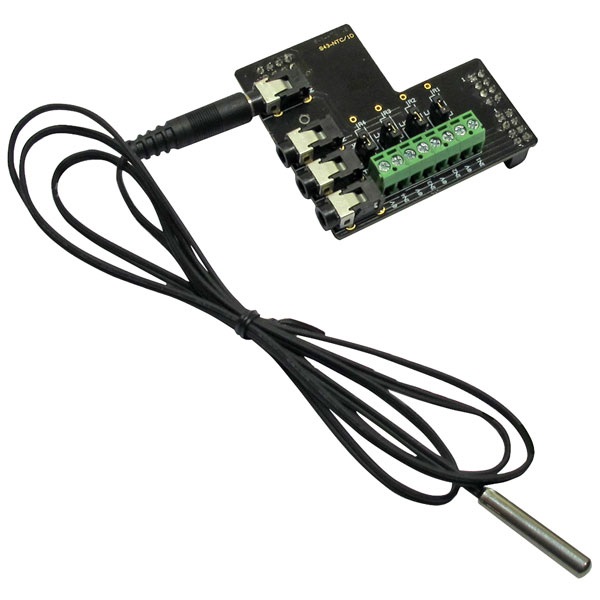

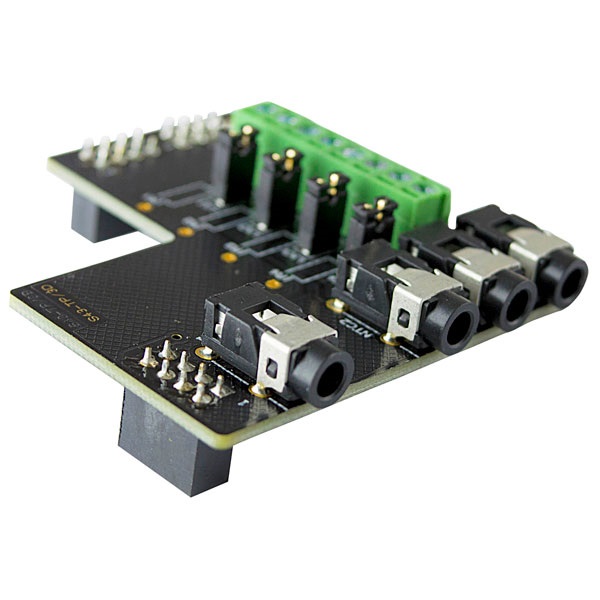

The S43-TP is an accessory to the PanelPilotACE range of compatible displays and panel meters and is compatible with the 4.3” PanelPilotACE display module SGD 43-A. The S43-TP mounts on the rear of the SGD 43-A and provides up to four thermistor inputs which can then be utilised within the free PanelPilotACE Design Studio software to measure, display, log and graph temperature readings. Each S43-TP is supplied with a 1m thermistor probe fitted with a 3.5mm socket and featuring a potted metal sheath (Lascar part number: EL-PROBE2-1.0M-TP)
For a ready-to-go data logging kit, purchase the EL-SGD 43-ATP including a 4.3” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board, x4 compatible temperature probes and pre-loaded with an advanced logging application.
Supplied probe measurement range: -40°C to +80°C
Internal resolution: 0.01°C
Temperature accuracy: ±1.0°C
Number of channels: Up to 4
