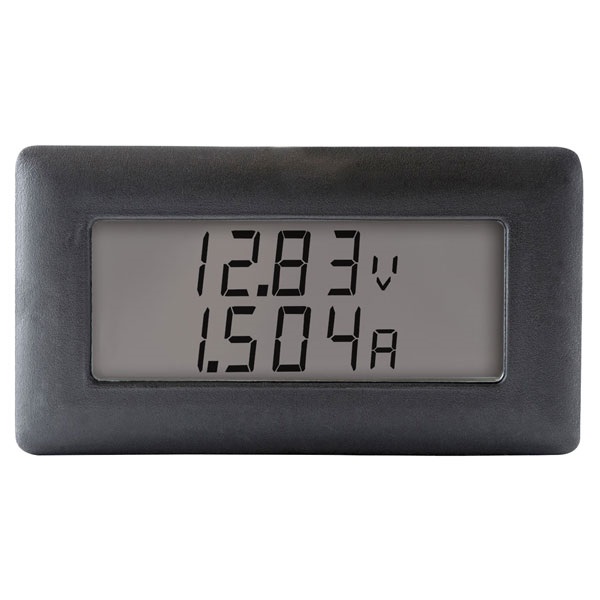

This dual channel 3½ digit LCD panel meter features 6.4mm (0.25-) digit height, 200mV d.c. full scale reading, auto-zero and auto-polarity.

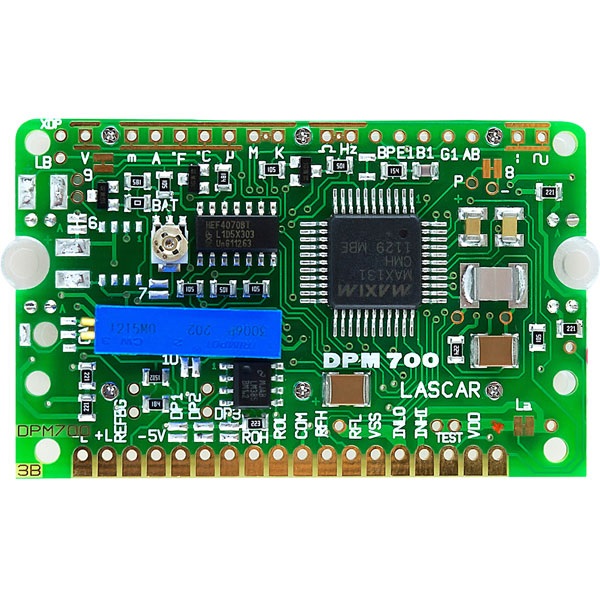

Connection is via a 10-way SIL pin header.
The module is fitted into a panel via the bezel, window and clips provided.
This product is ideal for those applications where -matched- readings are required, e.g.: voltage and current, temperature and humidity, etc.
Both measurement inputs share a common ground line, thereby reducing the number of connections to a minimum.
The very low currentconsumption results in a long battery life and makes it especially suitable for portable equipment. A low battery warning circuit is fitted as standard.

- Dual Channel
- 200mV d.c. Full Scale Reading (F.S.R.)
- Selectable Decimal Points
- Auto-zero, Auto-polarity
- Common Signal Ground
- Annunciators

Accuracy (overall error): 0.05 0.1 % (±1 count)
Operating temperature: 0 to 50 °C
Sample rate: 3 samples/sec
Supply Voltage: 3.5 to 7 V d.c.
Supply Current: 700 uA
