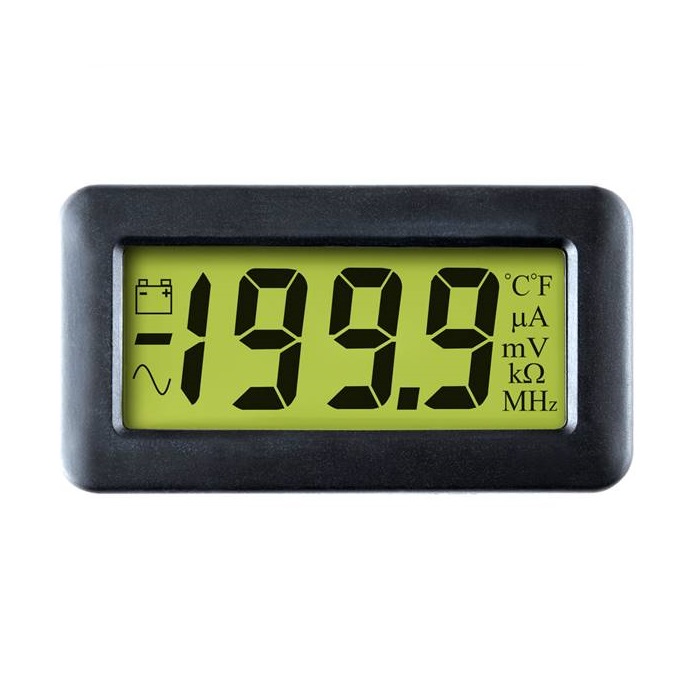

This panel meter features a 3½ digit LCD with 12.7mm (0.5-) digit height, annunciators and LED backlighting.
With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter is connected via solder pads and can be fitted into a panel via the bezel, window and clips provided.

- 3.0 to 7.5V or 6.0 to 15V d.c. Operation
- Programmable Decimal Points
- Low Battery Warning
- Bandgap Reference

Accuracy (overall error): 0.1 % (±1 count)
Operating temperature: 0 to 50 °C
Sample rate: 2.5 samples/sec
Supply voltage (V+ to V-): 6 to 15 V d.c.
Supply Voltage (V+ to GND): 3 to 7.5 V d.c.
Supply current (V+ to V-): 350 uA
Supply current (V+ to GND): 500 uA
