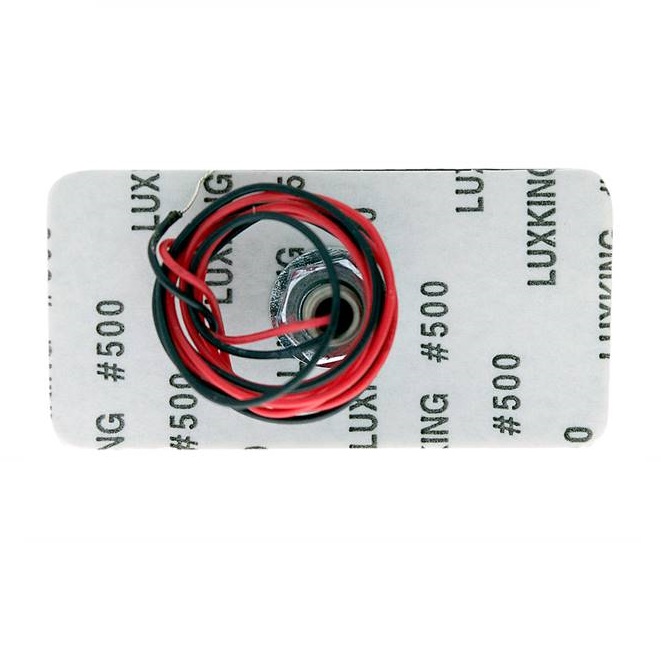

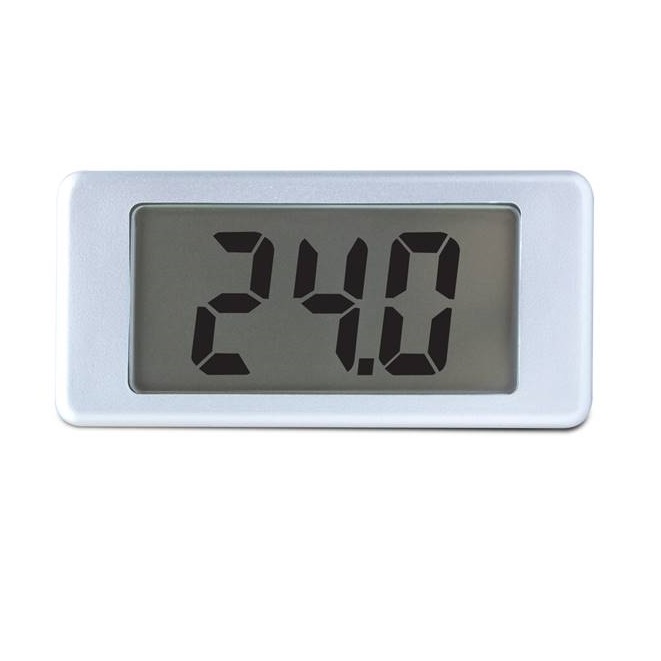

This 2-wire panel meter features a 3 digit LCD with 12.5mm (0.5-) digit height in a low profile housing and a measurement range up to 40V. Fitted with a threaded stud which allows mounting of the product through a 5.5mm (7/32”) drill hole, this unique enclosure provides quick and easy mounting. A rubber seal provides splashproof protection when fitted between the meter and mounting panel. Connection is via wires.

Range: 4 to 40V d.c.
Accuracy (overall error): 0.4V (±1 count)
Operating temperature: 0 to 50°C (32 to 122 °F)
Sample rate: 3 samples/sec
Supply Voltage: 3 to 50 V d.c.
Supply Current: 3mA
