DESCRIPTION

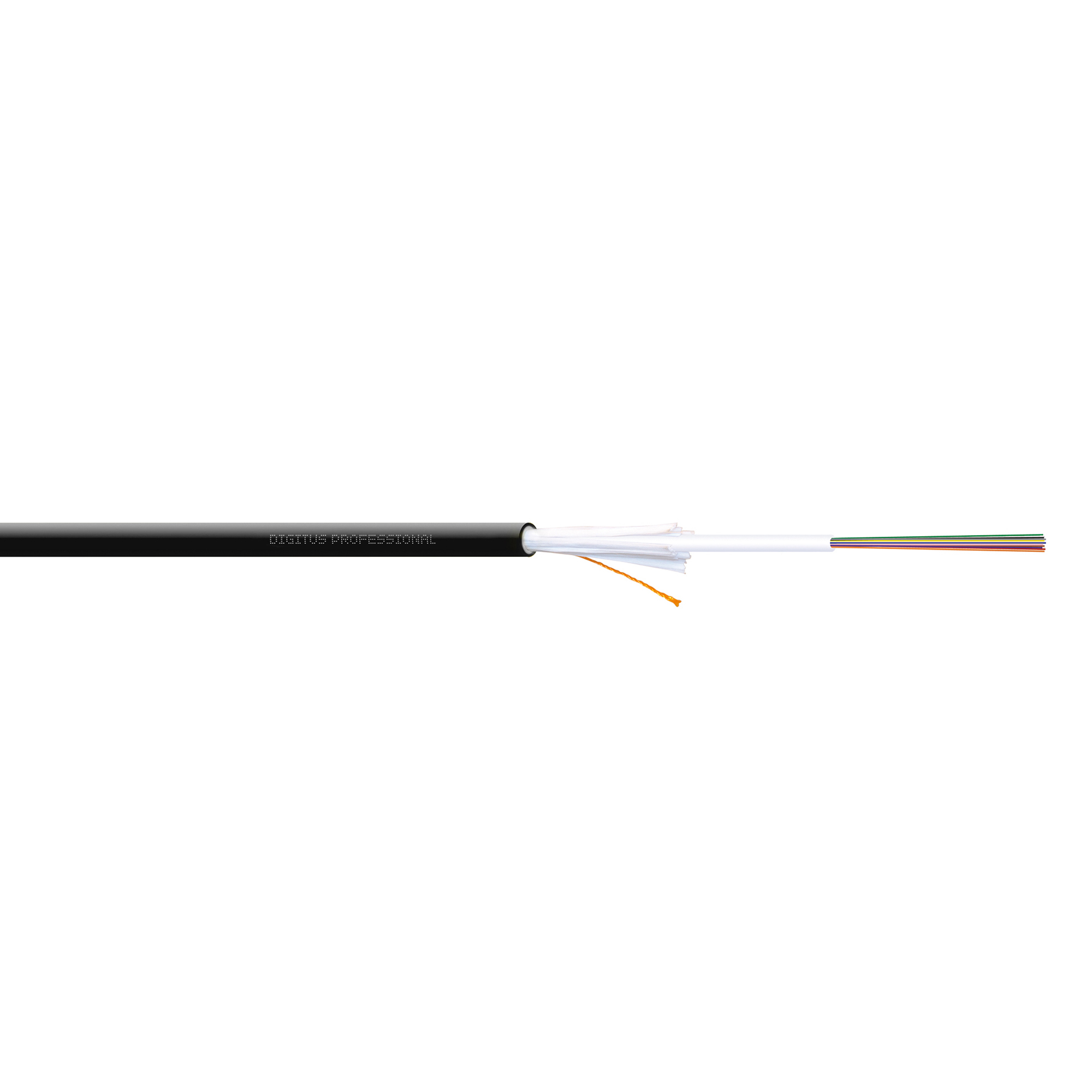

Loose tube cable is a design that has high tensile strength and flexibility in a compact cable size. Our loose tube cable provides excellent optical transmission and physical performance. We ensure a continuing level of quality in our cable products through several quality control programs including ISO 9001 and all the materials have passed REACh and RoHS. We ensure product reliability through rigorous qualification testing of each product family. Both initial and periodic qualification testing are performed to assure the cables performance and durability in the field environments.

TECHNICAL DETAILS
LSZH – low smoke zero halogen
UV-resistant
Longitudinaly and laterally water-resistant
Glass yarn armoured
Non-metal rodent protection
Metal free
Core diameter : 50.0 ± 2.5 µm
Cladding diameter : 124.8 ± 1.0 µm
Core-non-circularity : ≤ 5.0 %
Cladding-non-circularity : ≤ 1.0 %
Core-cladding concentricity error : ≤ 1.0 µm
Coating diameter : 245 ± 7 µm
Coating non-circularity : ≤ 6.0 %
OFL bandwidth : at 850nm : ≥ 3500 MHz x km ; at 1300nm : ≥ 500 MHz x km
Effective modal bandwidth : at 850 nm : ≥ 4700 MHz x km ; at 1300nm : ≥ 500 MHz x km
Fiber count (OM4) : 2-12 pc
Max. number of loose tube : 1 pc
Fiber number per tube : 2 - 12 pc
Loose tube : 2.0 ± 0.2 mm
Outher sheath material : LSZH, CPR Dca, EN 50575: 2014+A1: 2016
Cable outer diameter : 6.5 ± 0.5 mm
Max. allowable pulling force : 1400 N
Crush resistance : 1000/200 N/100mm
Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C
Min. bending radius : installation : 20 x OD ; operation : 10 x OD
Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C

ATTRIBUTES
Application: universal
Cable jacket: LSOH
Cable type: U-DQ (ZN) BH X G 50/125µm
Color cable: black
Fiber class: OM4
Fiber diameter: 50/125µ
Mode: Multimode
Number of fibers: 8
