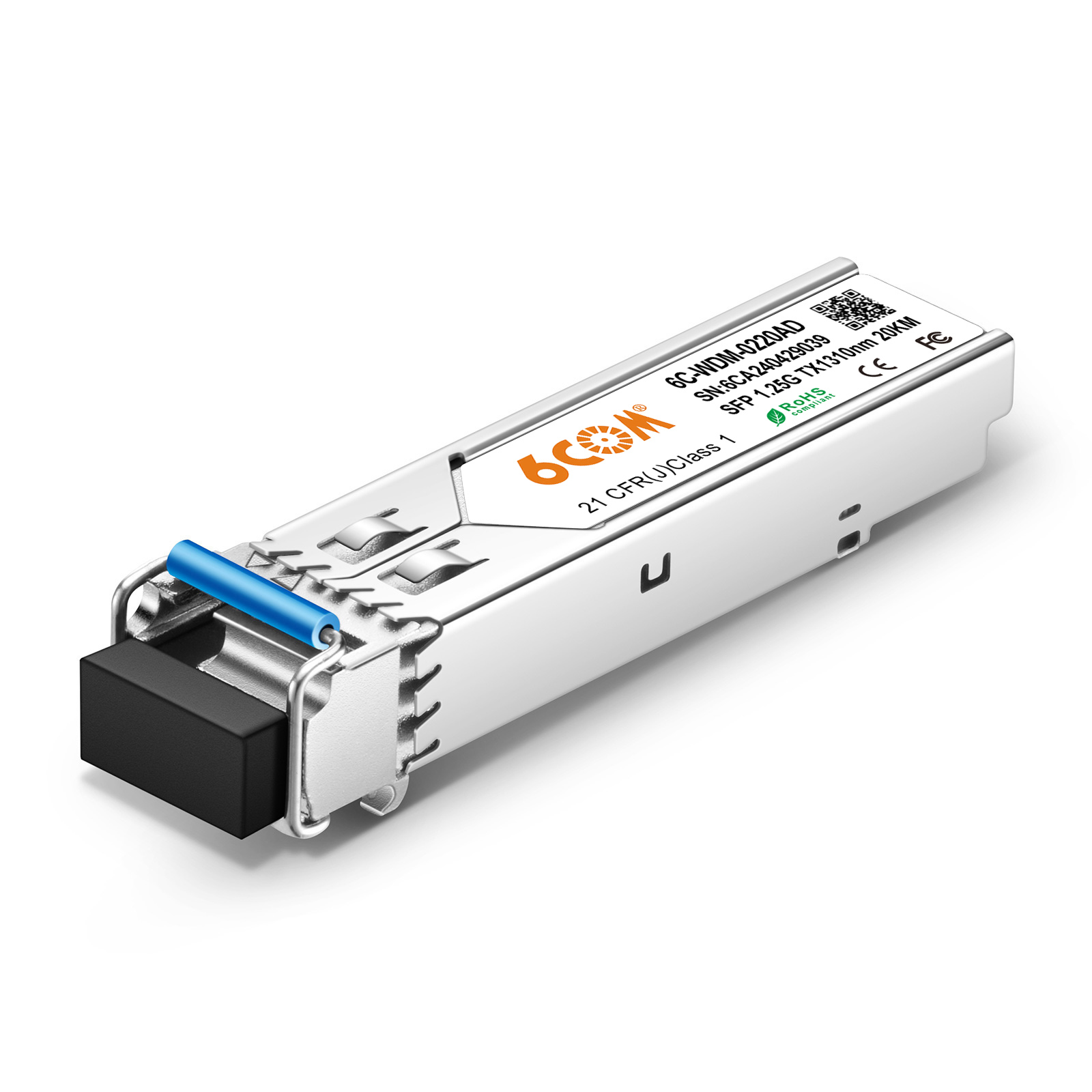

SFP-1GBX-U-20 1000BASE BiDi SFP 1310nm-TX/1550nm-RX 20km Simplex LC Optical Transceiver Module

Features
1. Support Data Rate Up to 1G
2. FP+PIN; Low Power Consumption -1W
3. Applied in Data Center and Campus Network
4. Fully Compatible with 100+ Vendors
5. SFP MSA Compliant

Parameters Table
Part Number: 6C-WDM-0220AD Vendor Name: 6COMGIGA
Form Factor: SFP Data Rate: 1.25Gbps
Wavelength: 1310nm-TX/1550nm-RX Distance: 20km
Connector: LC Simplex Cable Type: OS2 SMF
Transmitter: FP Receiver Type: PIN
TX Power: -9~-3dBm Receiver Sensitivity: --22dBm
Power Consumption: -1W Temperature 0 to 70°C (32 to 158°F)
DDM: Support Bit Error Ratio (BER): 1E-12
Protocols: Fast Ethernet, Gigabit Fibre Channel, MSA Compliant Warranty: 3 Years
