Description

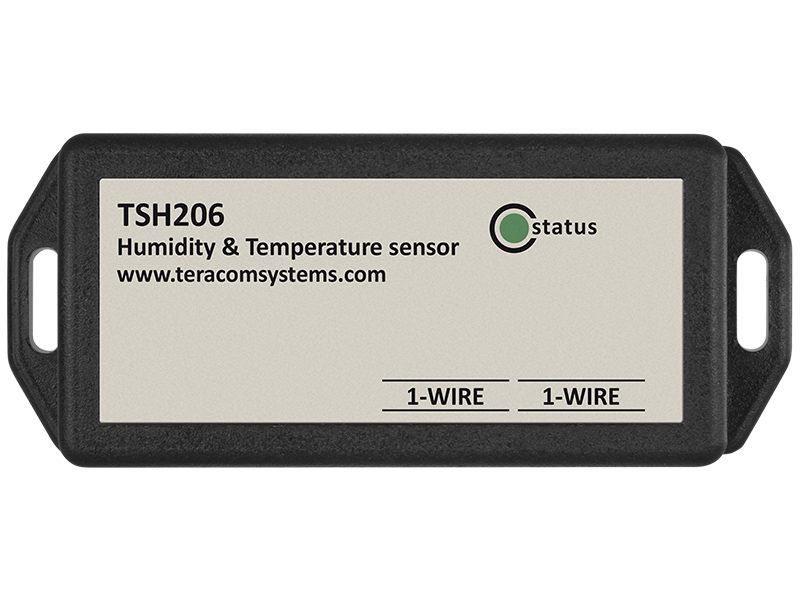

TSH206 is a digital humidity and temperature sensor with a 1-Wire interface. It is an excellent solution for humidity and temperature measuring. With one of Teracom Ethernet or GSM controllers, it is an ideal choice for humidity monitoring of server rooms, data centers, offices, stores etc.
The digital humidity and temperature sensor integrates basic elements as well as signals processing and provides a fully calibrated digital output. This results in superior measurement quality.
TSH206 communicates over a 1-Wire bus. Each sensor has a unique 64-bit serial code, which allows multi-sensors support on the same 1-Wire bus.

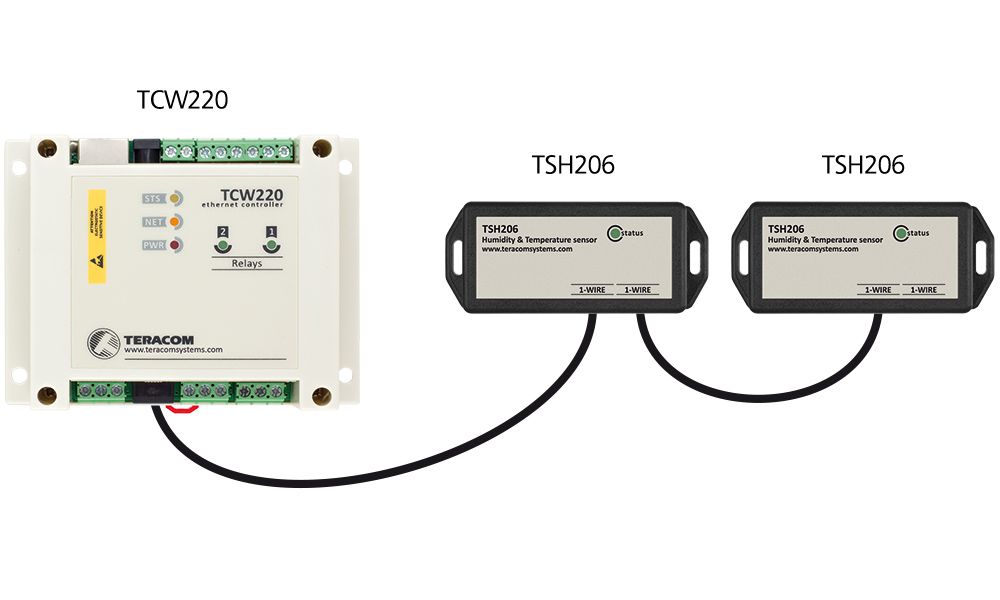

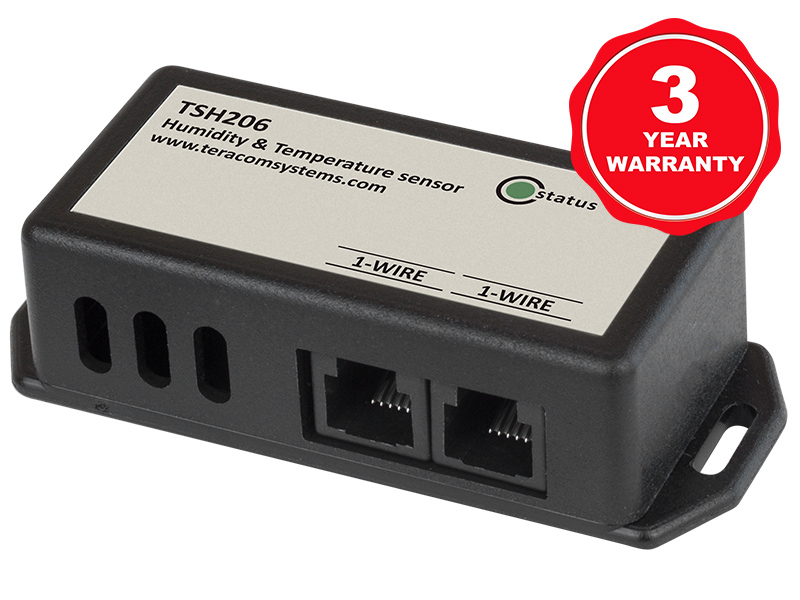

The digital humidity sensor utilizes two RJ11 connectors for easy daisy chain sensors wiring. A special accessory, allows easy installation on 19” cabinets, can be ordered separately.
Features
3.0% relative humidity accuracy;
12 bit resolution for humidity measurements;
14 bit resolution for temperature measurements;
Easy 19” cabinets installation;
Excellent long-term stability;
Unique 64-Bit serial number for multi-sensors support.
Applications
Humidity and temperature monitoring for facilities, vineyards, greenhouses, etc.;
Server room and data centers humidity and temperature monitoring;
Environmental quality monitoring and assessment;
Humidity and temperature monitoring in building management systems (BMS).
The digital humidity sensor can be used with
Ethernet IO module TCW241
Ethernet data logger TCW220
Remote IO module TCW122B-CM
GSM-GPRS remote monitoring controller TCG120
IP watchdog monitoring module TCW122B-WD
Remote environmental monitoring module TCW112-CM
IP watchdog relay board TCW112-WD
