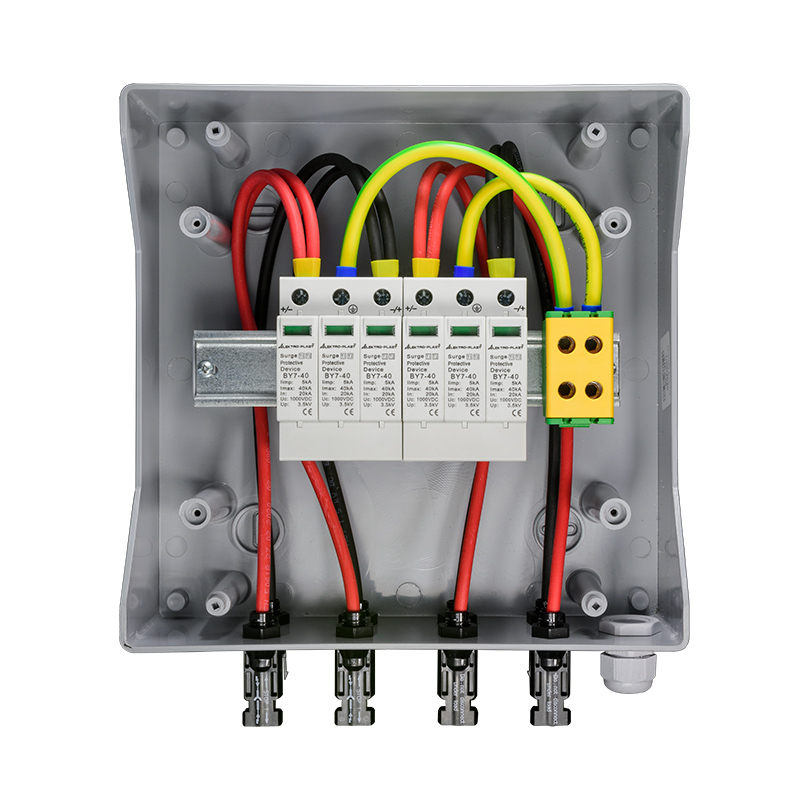

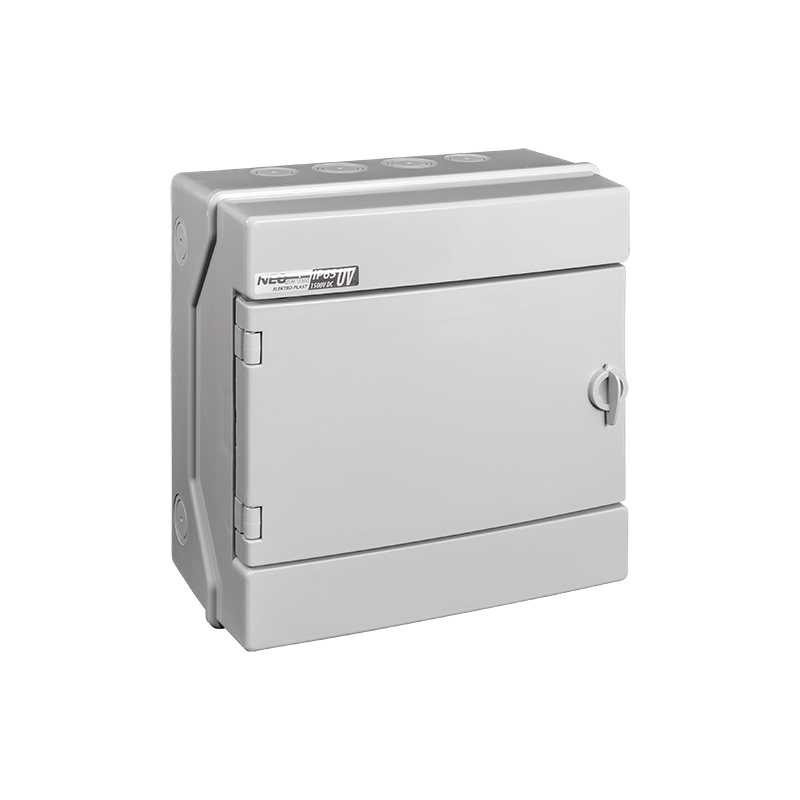

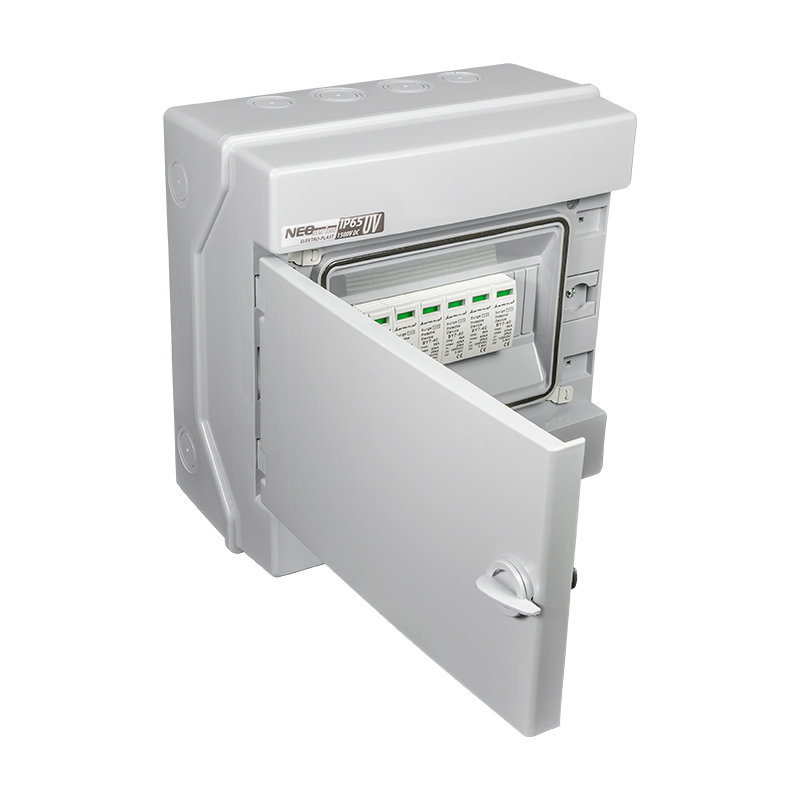

NEOseries RH distribution boards are now available in a version made of UV-resistant plastic, they are ideal for surface mounting indoors and outdoors. They have a high degree of protection IP65, degree of mechanical strength IK07 and protection class II. The rated voltage of the case is 1500VDC, 500VAC. The door and housing are made of high-quality ASA material, gray (RAL 7040). RH / UV distribution boards are recommended for photovoltaics and have a number of optional extensions increasing their functionality. Currently, versions for 8, 12 and 24 modules are available.

Technical characteristics:

distribution boards equipped with a gray door that opens to the side up to 180o (to the left or to the right), adapted to the installation of a key lock,
made of high-quality ASA material,
stability of operation from -25o C to + 60o C,
impact resistance: IK07,
protection class II,
degree of protection IP65,
possibility to install devices with a depth of 68-75mm (option: 95mm after lowering the TH35 rail),
the possibility of sealing the door,
switchgears equipped with: terminal strips for N and PE lines,
DIN rail TH35,
self-adhesive label for descriptions.
