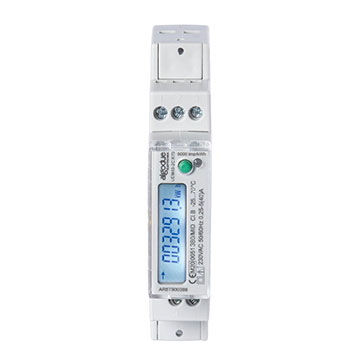

40A single phase energy meter with built-in communication

• For RS485 Modbus RTU communication
• Direct connection up to 40 A
• Up to 70°C operating temperature
• Fully bi-directional 4-quadrant measurements for all energies and powers
• High reliability
• 1 DIN module compact size
• Quick installation
• S0 output for energy pulse emission
• LCD display with 7 main digits

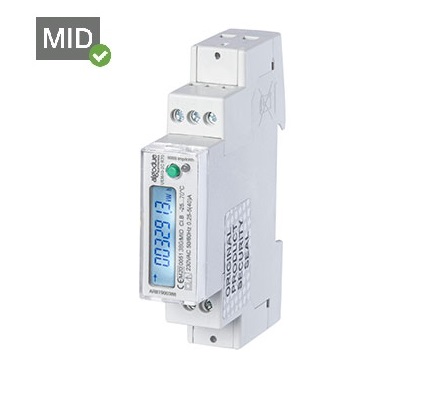

• Available with MID certification

General features

1 DIN module energy meter for the energy measurement in industrial and civilian application, with RS485 Modbus RTU built-in
communication. Available with MID certification suitable for billing.
Besides the energy, the meter can measure the main electrical parameters and makes them available on the display and on the
built-in COM port. The COM port allows to manage the connected meter by a remote station and data is transmitted on a RS485
line. Moreover, a dedicated application for remote management is provided:
• Modbus Master software - for energy meter management by PC in RS485 Modbus network.
The meter is built according to EN 50470-1 standard. The active energy is compliant to IEC/EN 62053-21 class 1, but for MID
certified device it moreover fulfills class B requirements according to EN 50470-3. The accuracy of the reactive energy is compliant
to IEC/EN 62053-23 class 2.
Backlighted LCD display with clear graphic symbols comprehensible at a glance. Metrological LED on front panel and sealable
terminal covers. The analysis of the MTBF values, the accurate selection of components and the reduction of the internal working
temperatures together with strict production and control standards guarantee a product with an excellent quality and a long
lasting reliability.
