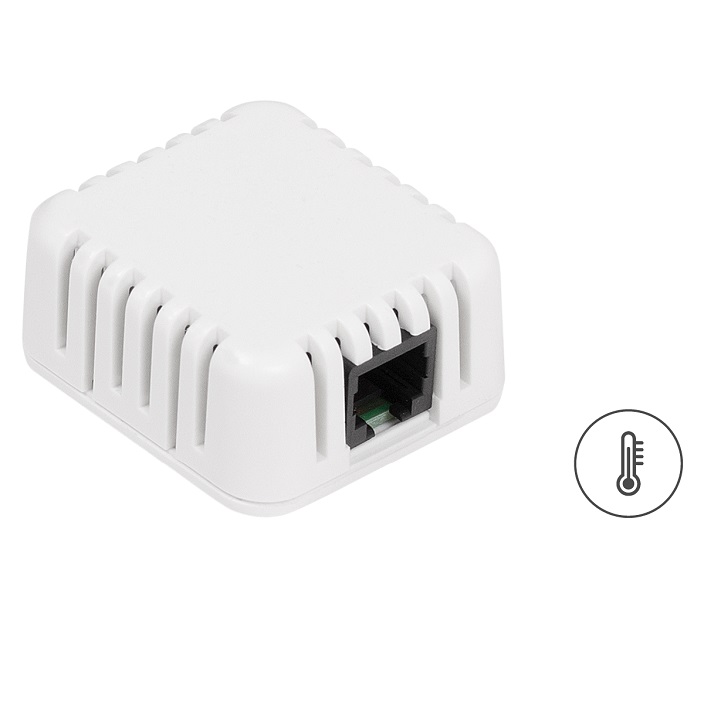

Temp HomeBox is a simple temperature sensor. RJ11 interface (1-Wire bus) can be connected to all HW group monitoring devices.

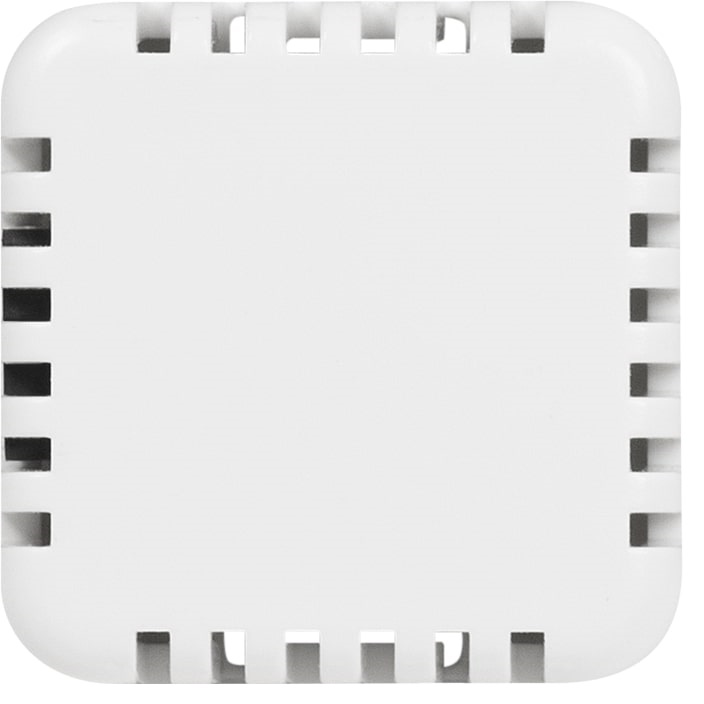

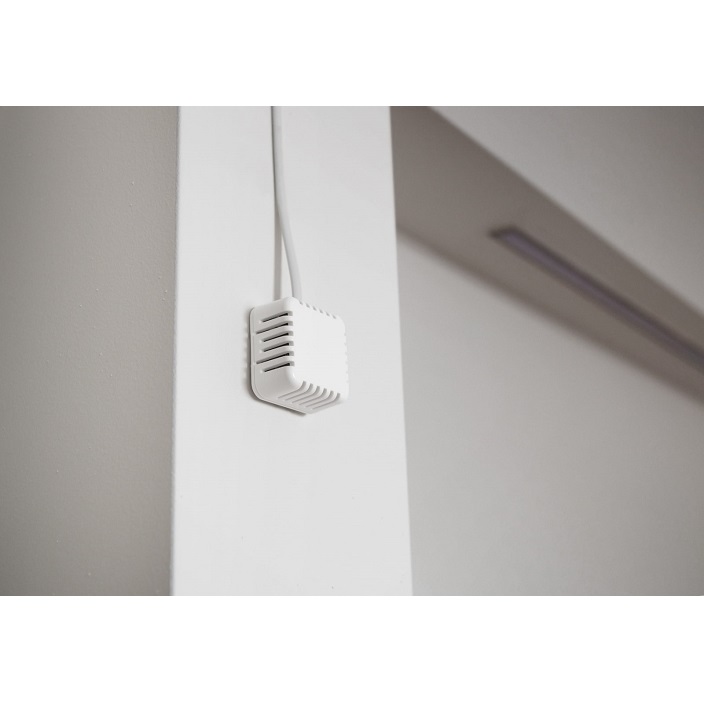

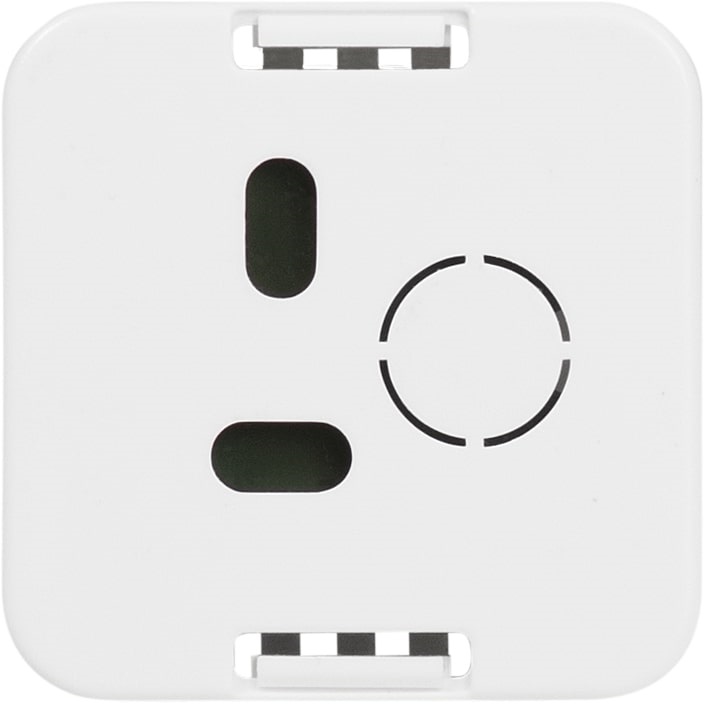

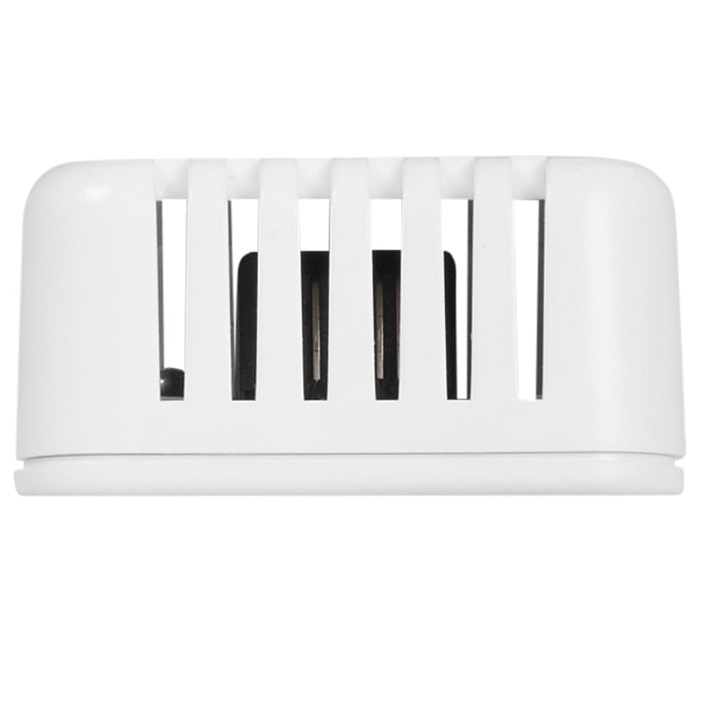

Housed in a small elegant plastic box, this sensor can be mounted on a wall or a ceiling or placed on a desk. It is small and lightweight so can be secured in place with a piece of double-sided adhesive tape. A detachable cable with RJ-11 jacks is used for the connection. Connection cable 3 m included in the package.
Features:
Communication interface: 1-Wire bus, RJ-11 jack
Maximum length of the 1-Wire bus: 60m
Temperature range: -30 to +70 °C, resolution – 0.1 °C
Power supply: 5V from RJ11 port
Applications and usage:
This sensor can be used in many areas. In addition to monitoring in households, commercial buildings, and school buildings, it will also help you in various measurement and regulation projects.
Installation and use

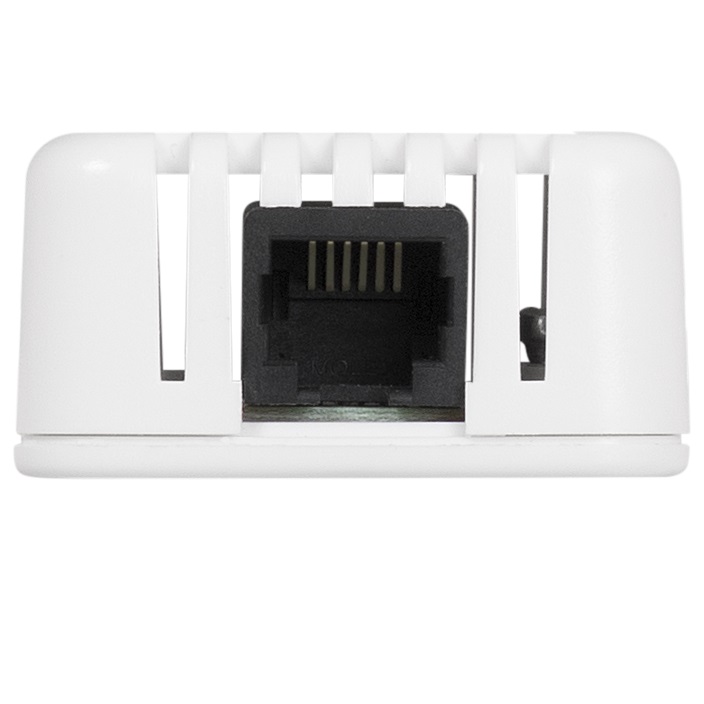

A detachable cable with RJ-11 jacks is used for the connection. Included 3-meter RJ11 cable to connect the sensor to any HW group device.
