*Mounting options: DIN rail or wall mounting (additional kit needed), flat surface placement

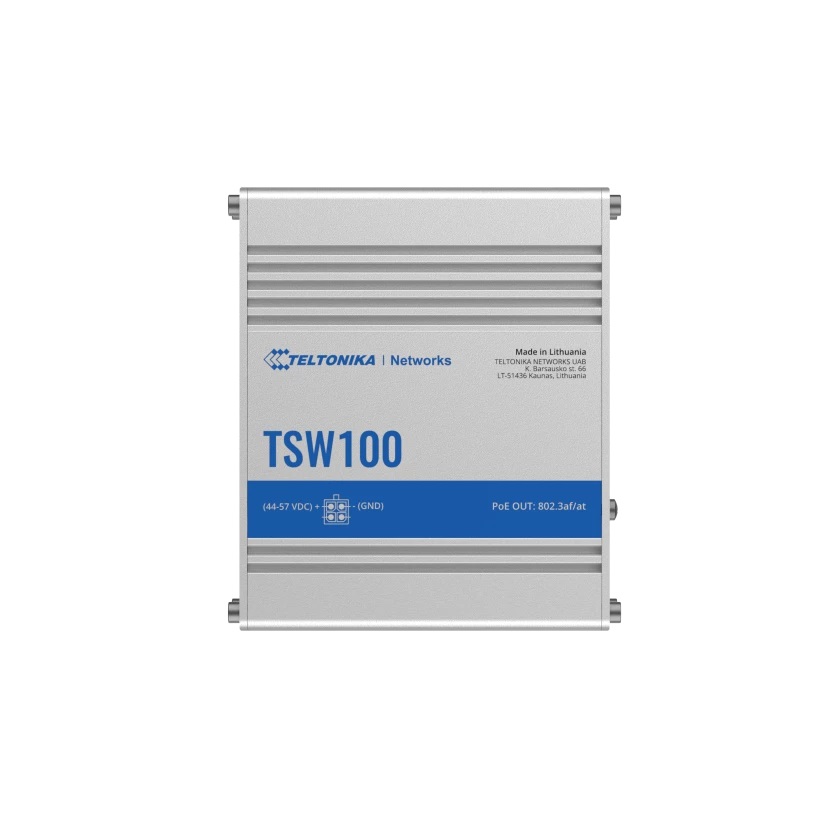

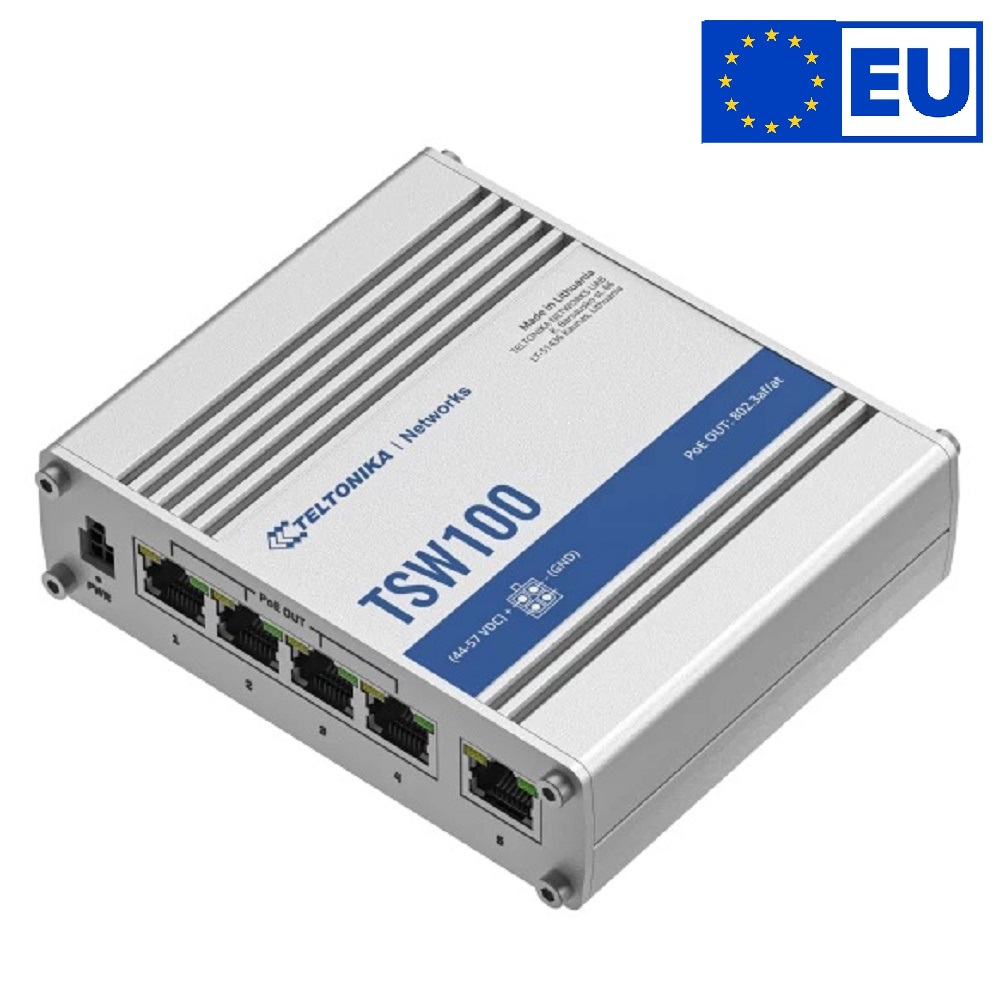

INDUSTRIAL UNMANAGED POE+ SWITCH
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.

POE+
4 x PoE+ ports with 802.3af and 802.3at support

POWER BUDGET
Total power budget at PSE up to 120 W

ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps

MOUNTING
DIN rail and surface mounting options

ETHERNET
LAN 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

POE
PoE ports Port 1- 4
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
PoE Power Budget (at PSE) 120 W

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 10 Gbps
Packer buffer 128 KB
MAC address table size 2K entries

POWER
Connector 4-pin industrial DC power socket
Input voltage range 7-57 VDC
Power consumption Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)

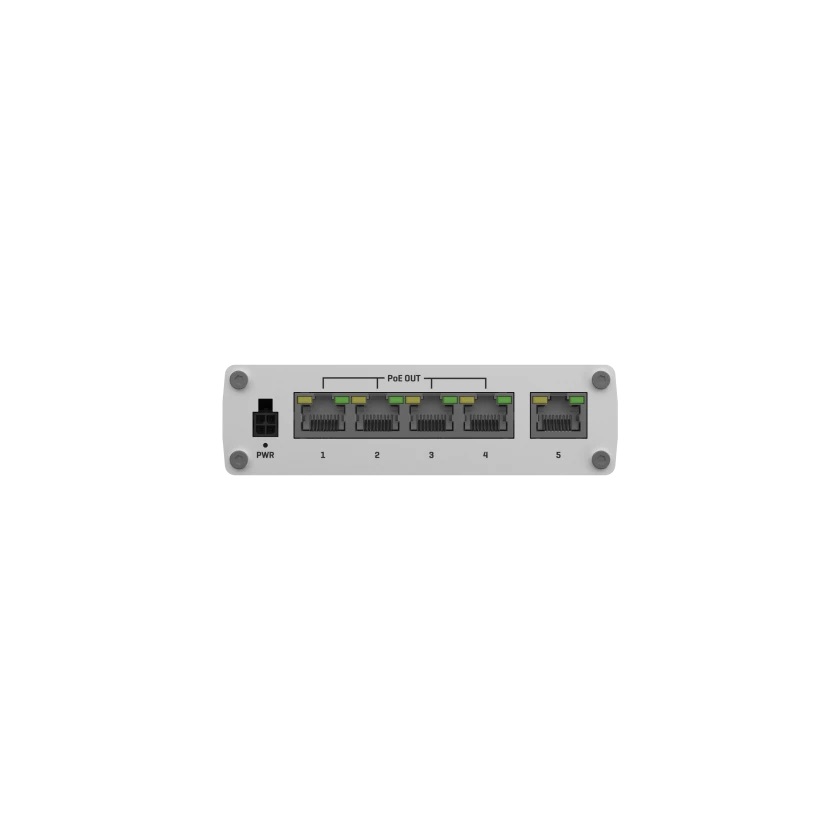

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 10 x LAN status LEDs
Power 1 x 4-pin power connector
Other 1 x Grounding screw

PHYSICAL SPECIFICATION
Casing material Full aluminum housing
Dimensions (W x H x D) 115 x 32 x 95 mm
Weight 350 g
Mounting options DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
