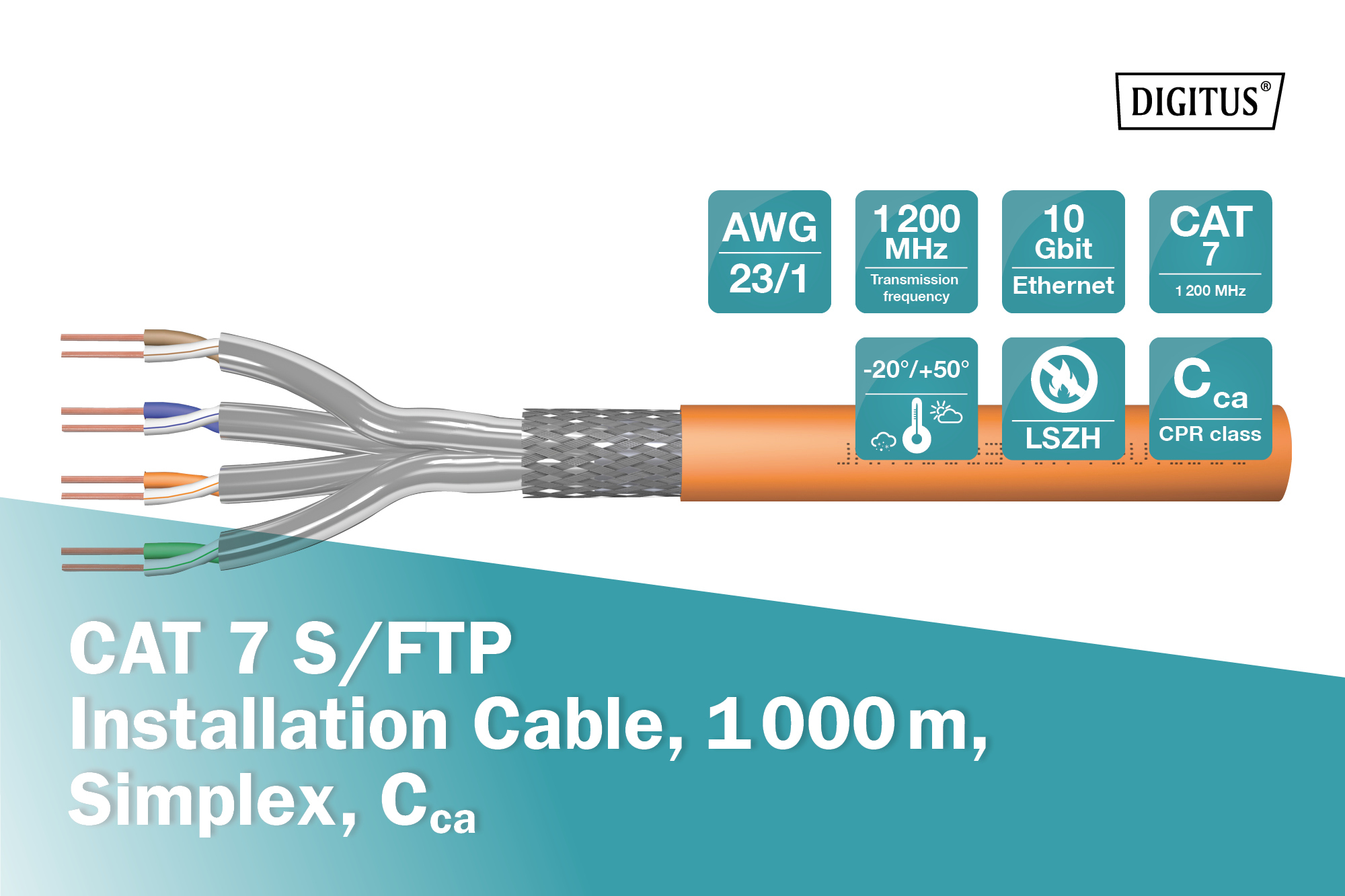

DIGITUS Cat.7 S/FTP installation cable, 1000 m, simplex, Cca
Product number: DK-1744-VH-10
EAN: 4016032441281
CAT 7 S-FTP installation cable, 1200 MHz Cca (EN 50575), AWG 23/1, 1000m, simplex, orange

Future-oriented standards and high-end quality for your network.

10GBit Ethernet
1200 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
CPR class Cca-s1a d1 a1

Description

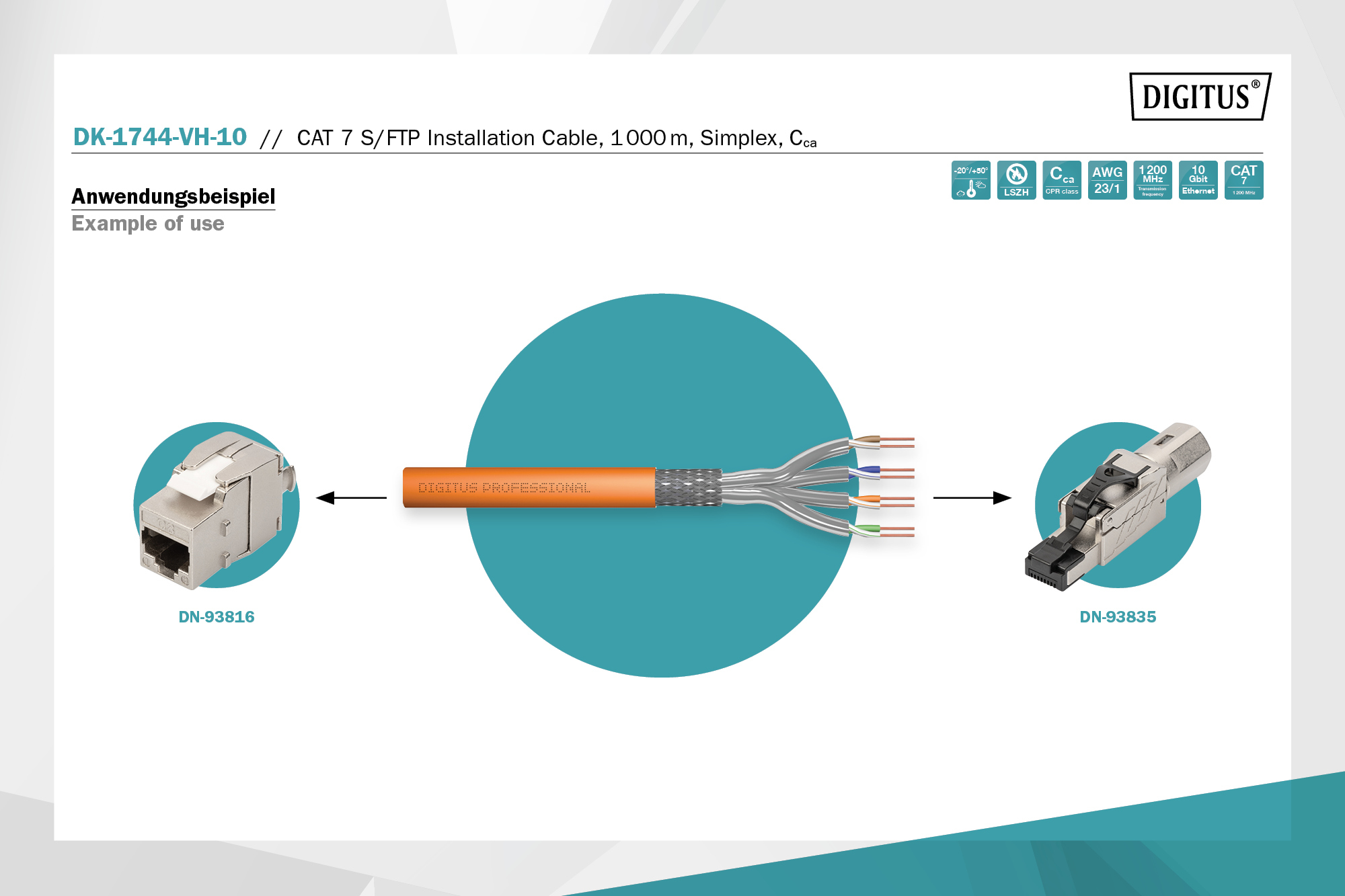

The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 60332-3-24, EN 50575. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Technical details

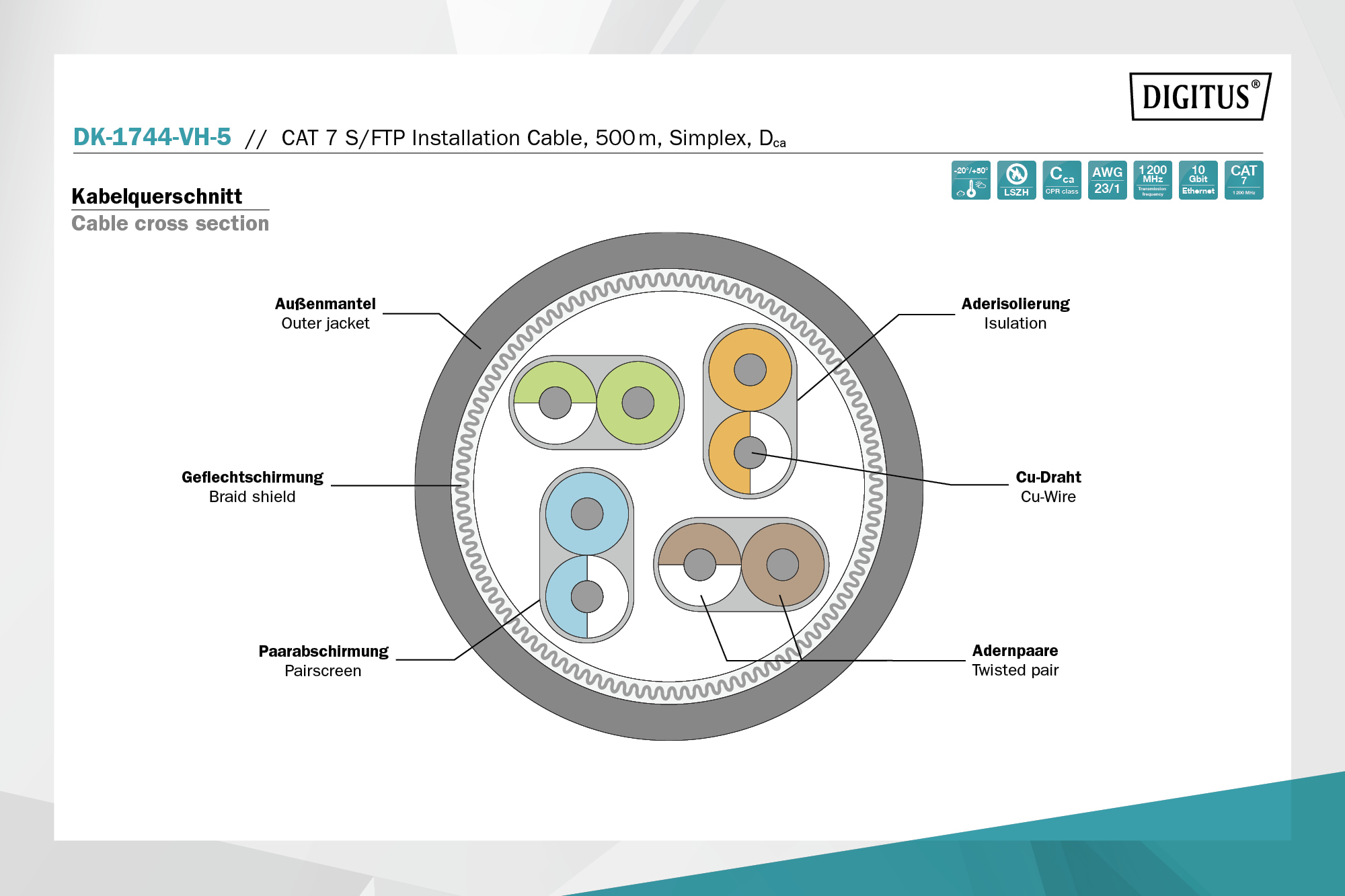

Physical properties:
Conductor: Bare copper wire, AWG 23/1
Insulation: SFS-PE (foamed polyethylene jacket)
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
Overall shielding: copper braiding
Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH
Outer sheath thickness (nominal): 0.50 mm (Eca); 0.52 mm (Dca); 0.60 mm (Cca); 0.60 (B2ca)
Color: Orange (RAL 2008)
Mechanical properties:
Strain relief: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to +75 °C
Operating temperature range: -20 °C to +50 °C
Installation temperature range: 0 °C to +50 °C
Outer diameter simplex (nominal): 7.0 mm (Eca); 7.2 mm (Dca); 7.5 mm (Cca); 7.5 mm (B2ca)
Weight (kg/km): 49.5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca)
Electrical properties:
Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
Capacitance: 45 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Phase delay: 450 nS/100 m max.
Time delay: 10 nS/100 m max.
Separation class: -d- according to EN 50174-2
NVP: 79%
Assortment: Twisted Pair Installation Cables
Category: CAT 7
Shielding: S-FTP, pairs in metal foil and braid shielding
CPR: Cca

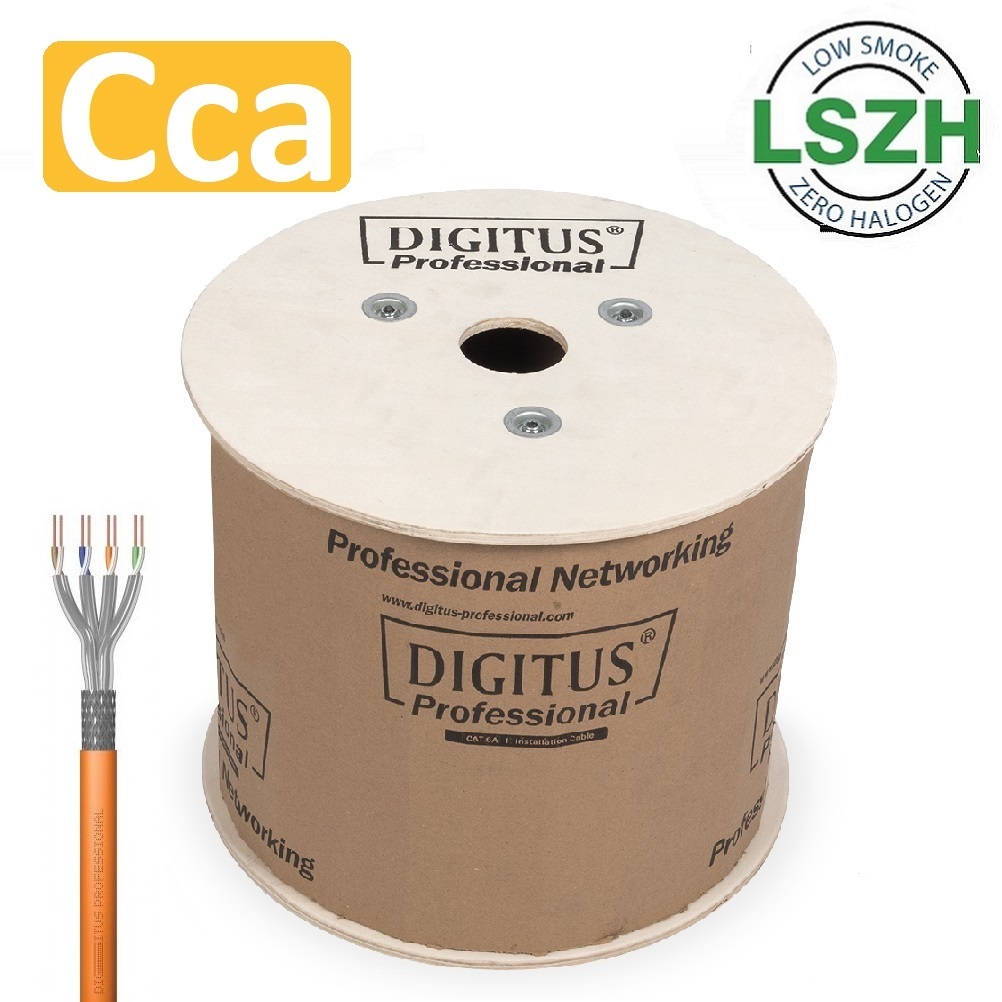

Length: 1000 m
Color: orange
Jacket: LSOH
Structure: 4 x 2 AWG 23/1, solid twisted pair
