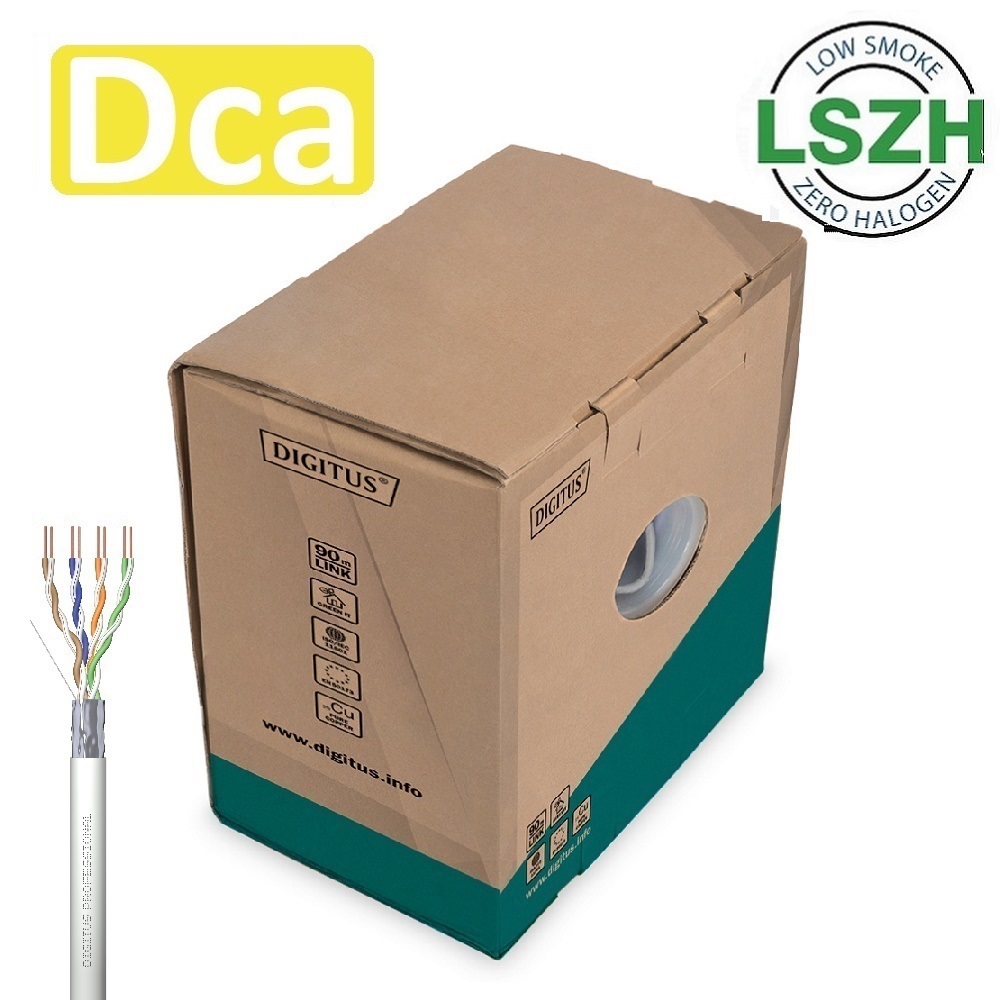

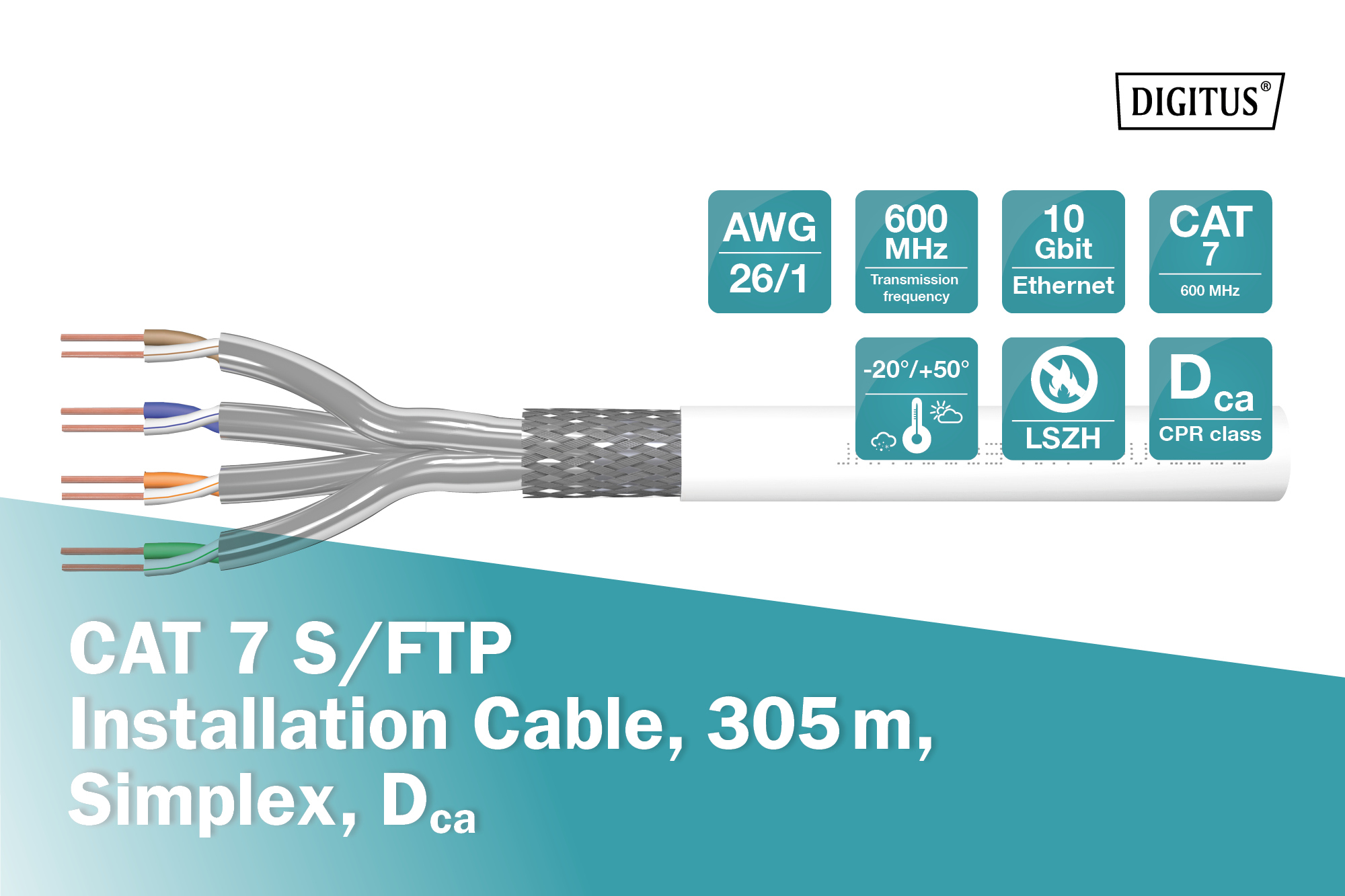

DIGITUS Cat.7 S/FTP installation cable, 305 m, simplex, Dca-s1a,d0,a1
Product number: DK-1743-VH-305-MF-W
EAN: 4016032454557
CAT 7 S-FTP installation cable, 305 m, box, 1200MH AWG 26/1, 600 MHz, Dca, LSZH-3, color RAL9003

Future-oriented standards and high-end quality for your network.

10GBit Ethernet
1200 MHz transmission frequency
PoE Power over Ethernet support
CPR class Dca-s1a,d0,a1
Maxflex - maximum flexibility for your network cabling

Description
The DIGITUS® Cat.7 S/FTP installation cable is characterized by the following cable construction 4x2x AWG 26/1 and reaches a transmission frequency up to 1200 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for laying in residental as well as SoHo areas.

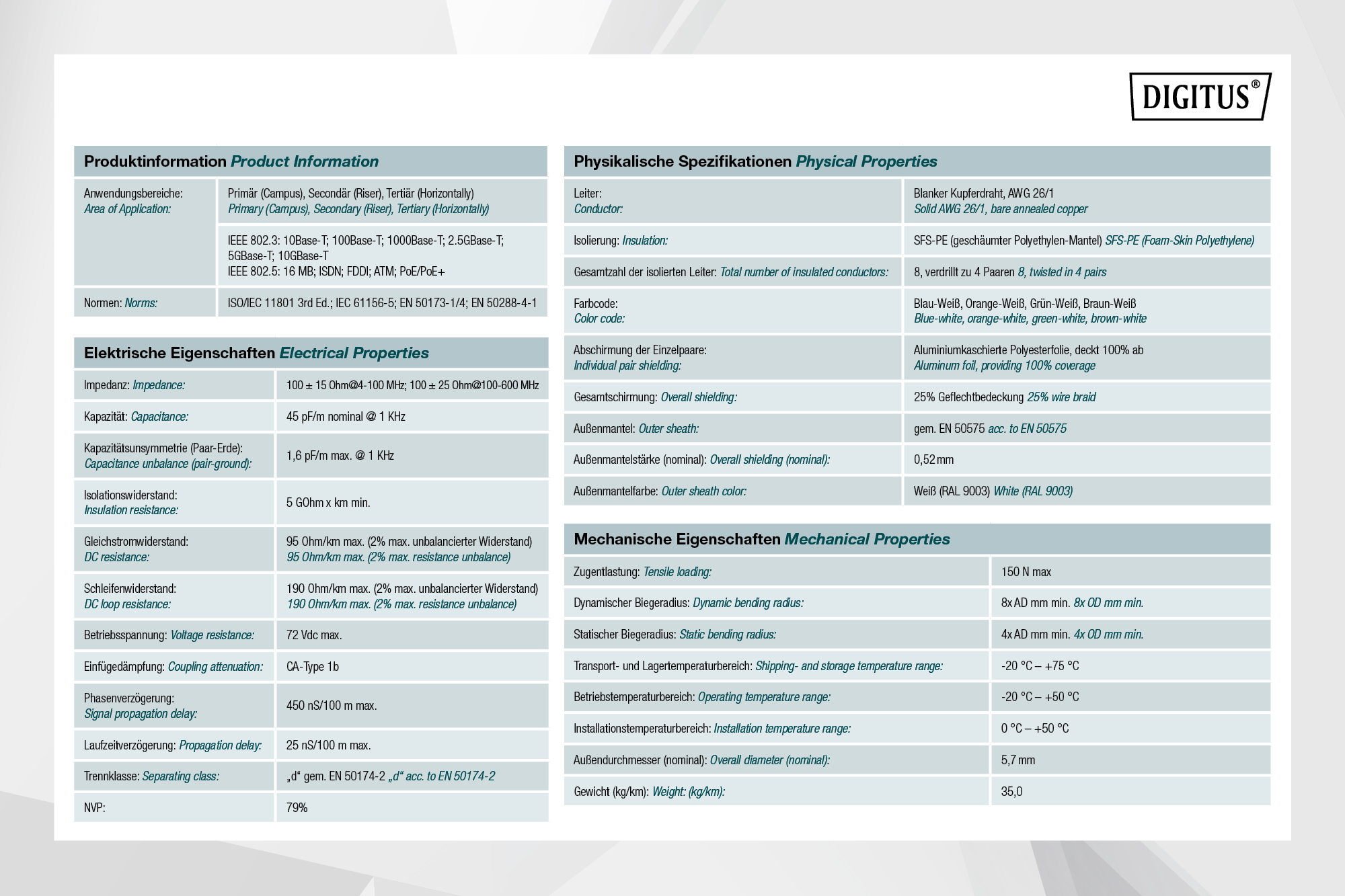

Technical details

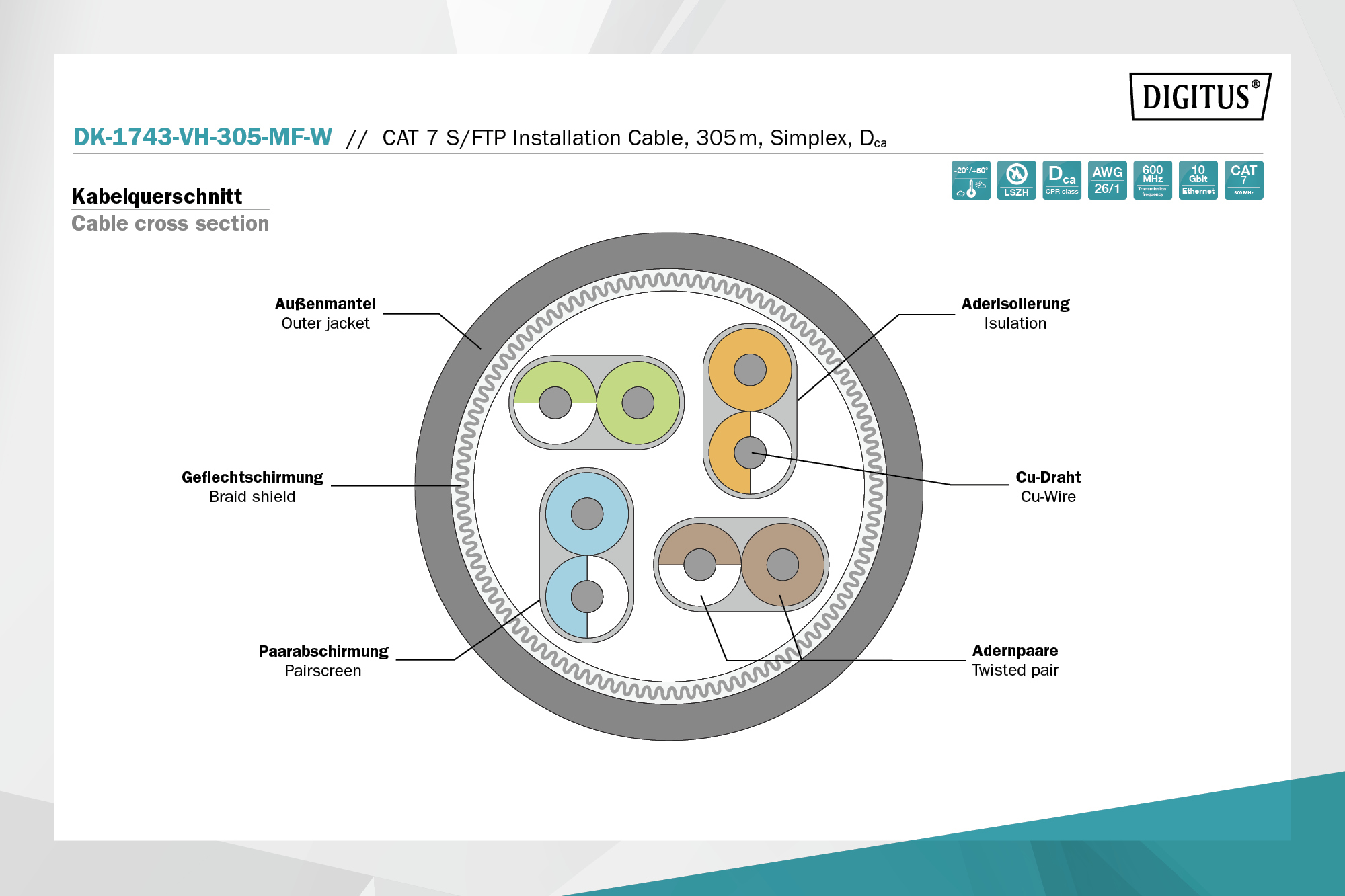

Physical properties:
Conductor: Bare copper wire, AWG 26/1
Insulation: SFS-PE (foamed polyethylene jacket)
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
Overall shielding: copper braiding
Outer sheath: Dca acc. to EN 50575; LSZH
Outer sheath thickness (nominal): 0.52 mm nominal
Outer casing color: White (RAL 9003)
Mechanical properties:
Strain relief: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to +60 °C
Operating temperature range: -20 °C to +50 °C
Installation temperature range: 0 °C to +50 °C
Outer diameter simplex (nominal): 5.7 mm nominal
Weight (kg/km): 35 kg/km
Electrical properties:
Impedance: 100±15Ohm @ 4 - 100MHz; 100±25Ohm @ 100 - 600MHz
Capacitance: 45 pF/m nominal @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
Loop resistance: 190 Ohm/Km max. (2% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Phase delay: 450 nS/100 m max.
Time delay: 25 nS/100 m max.
Separation class: -d- according to EN 50174-2
Maximum insert length: 60 m
NVP: 79%
Flame spread: EN EN 60332-1-2 (LSOH-PVC)
Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
Smoke density EN 61034-2
Assortment: Twisted Pair Installation Cables
Category: CAT 7
Shielding: S-FTP, pairs in metal foil and braid shielding
CPR: Dca
Length: 305 m
Color: white
Jacket: LSOH
Structure: 4 x 2 AWG 26/1, solid twisted pair
