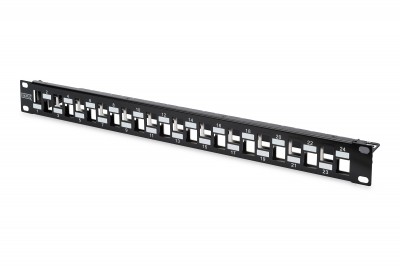

DIGITUS Modular Patch Panel, 24-port
Product number: DN-91410
EAN: 4016032280781
Modular Patch Panel, shielded 24-port, blank, 1U, rack mount, grey RAL 7035

Description

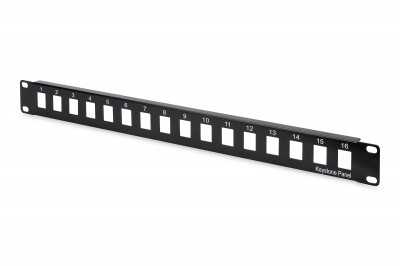

The Modular Patch Panel from DIGITUS® is available as 16- or 24-port version. The 1.5 mm cold rolled c-steel provides the best storage of your Keystone Modules.

Technical details
Layout Keystone Entry: Straight
Area of application: 483 mm (19-) cabinet
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19-) cabinet mounting
Suitable for shielded Digitus® Keystone Modules and Couplers
Central ground connection
Technical properties:
Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated
Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
Grounding bar material: Galvanized steel
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Colour: Grey RAL7035
Attributes
Color: light grey, RAL 7035
Ports: 24
Units: 1
