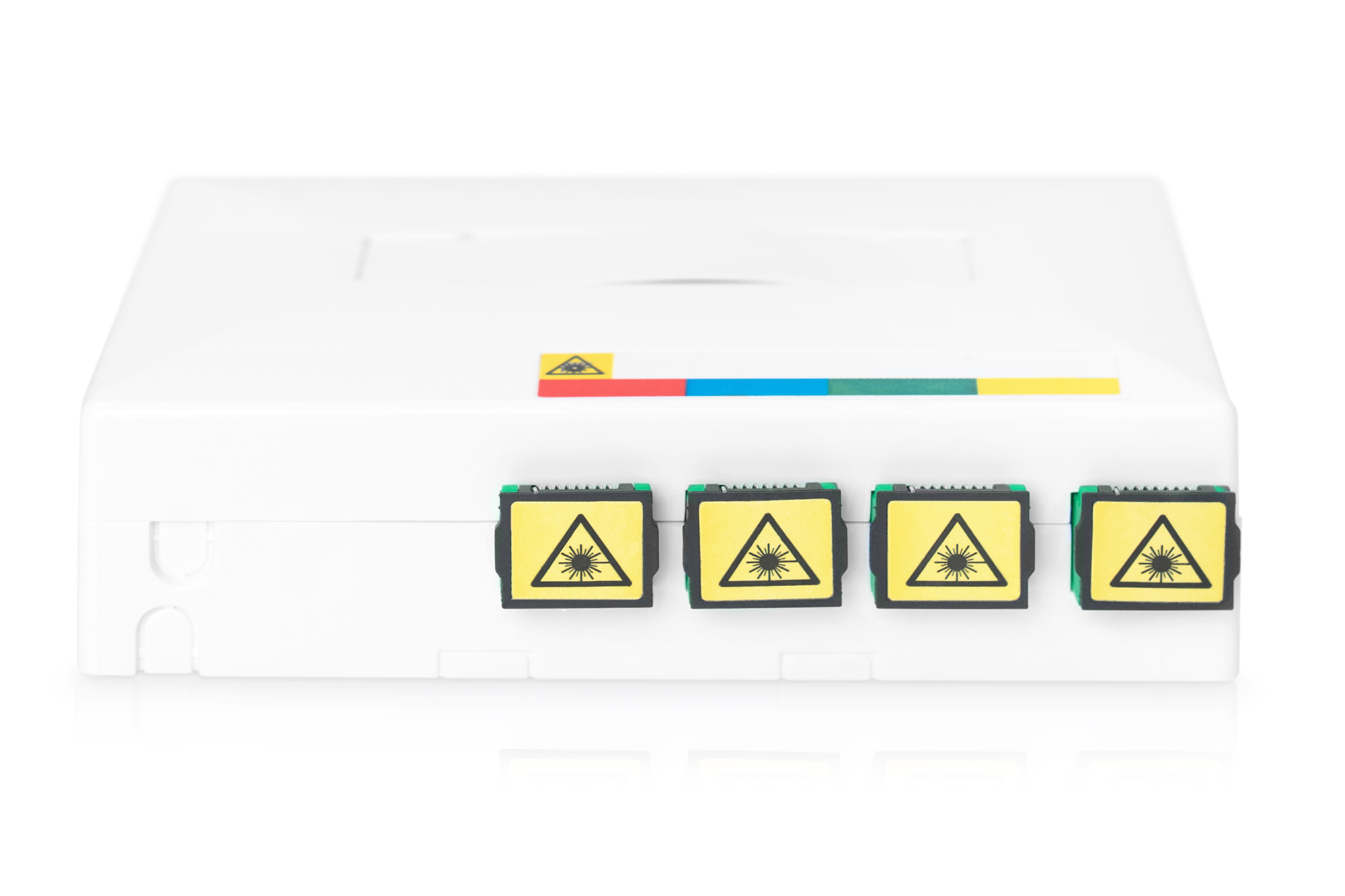

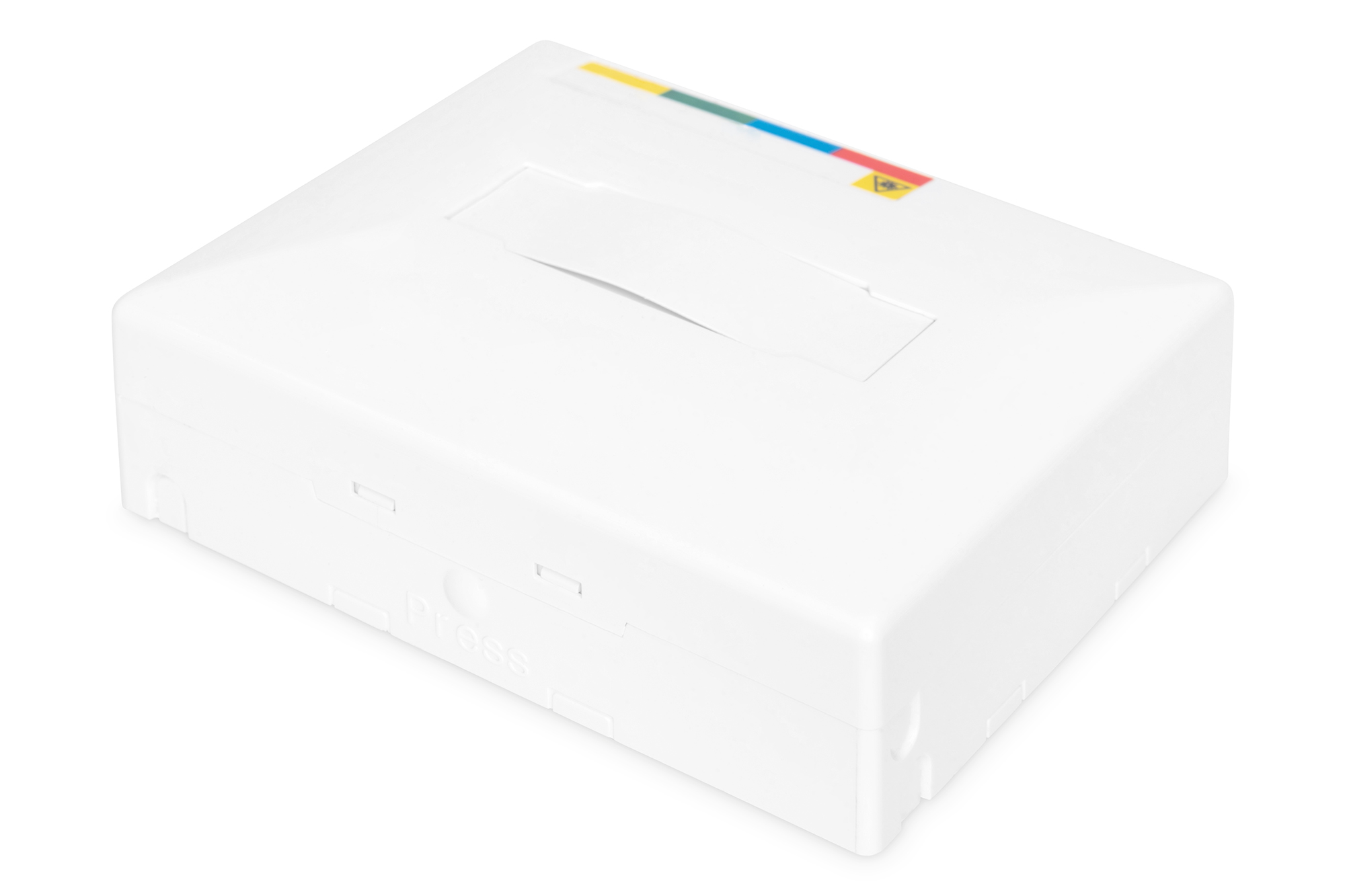

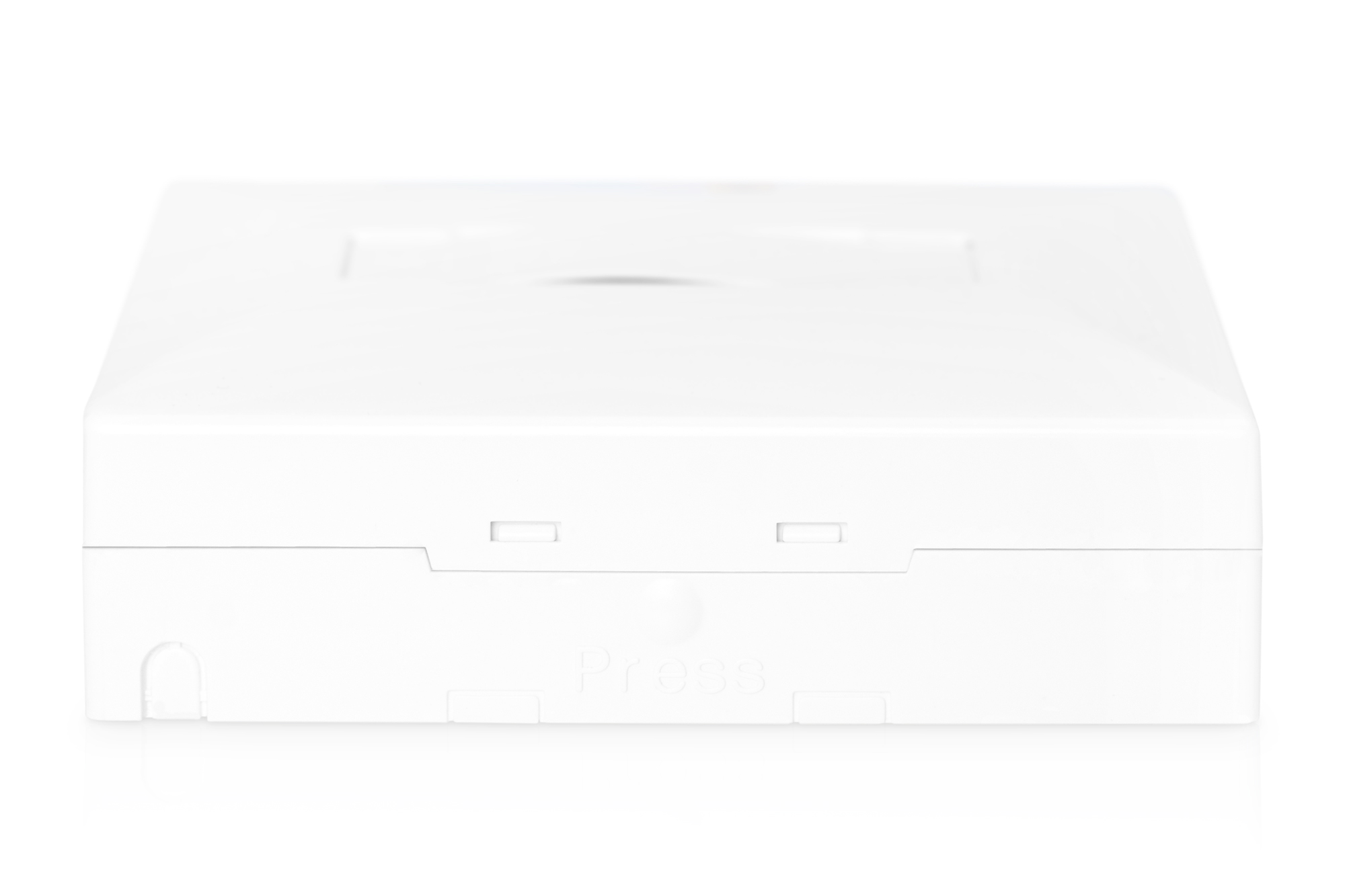

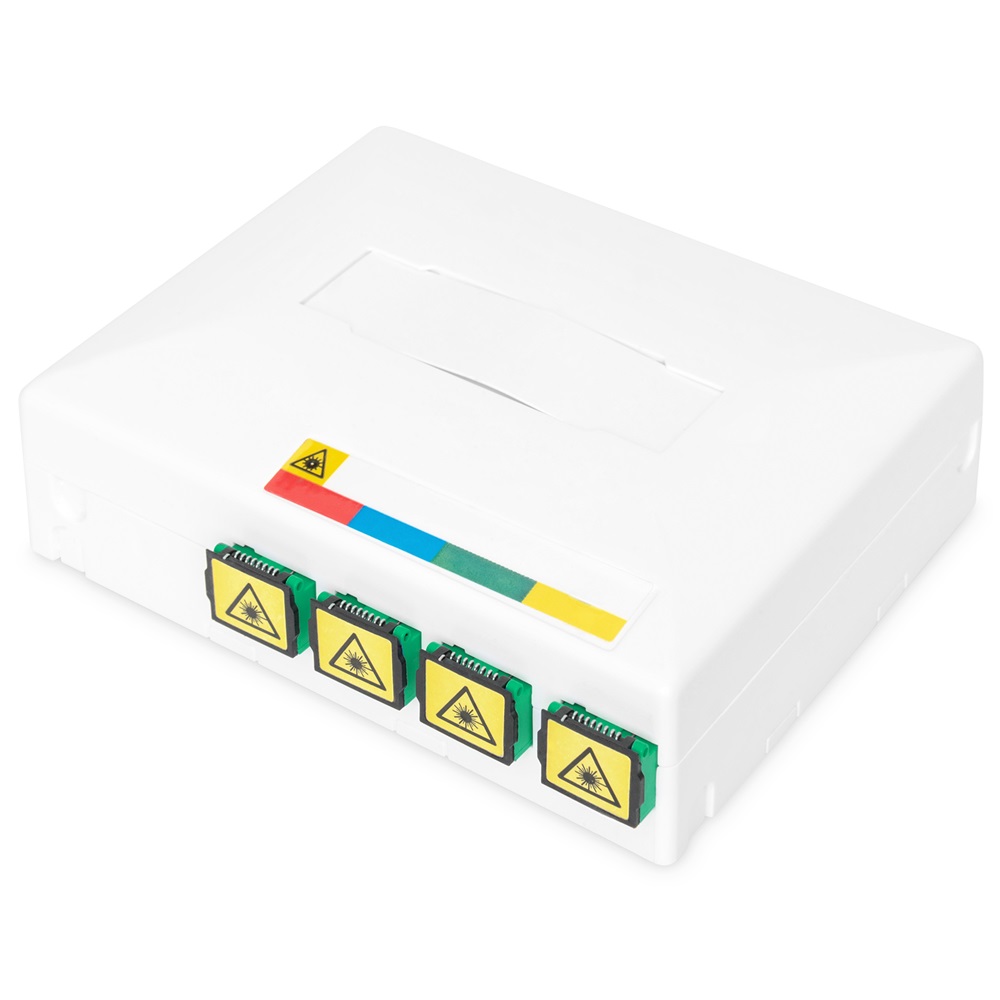

DIGITUS FTTX enclosure with 4 x SC SX couplers
Product number: DN-931094
EAN: 4016032466536
FTTH Outlet, with 4x SC (APC) SX adapter surface and DIN-rail mount

FTTX housing for fiber splices, terminations, storage and connections in a compact protective housing

Ideal connection box for fiber optic cables in the area of FTTX / FTTH
Suitable for 4 x SC SX or 4 x LC DX couplings (without flange) (4 x SC SX incl.)
Suitable for wall installation and profile rail installation (DIN rail)

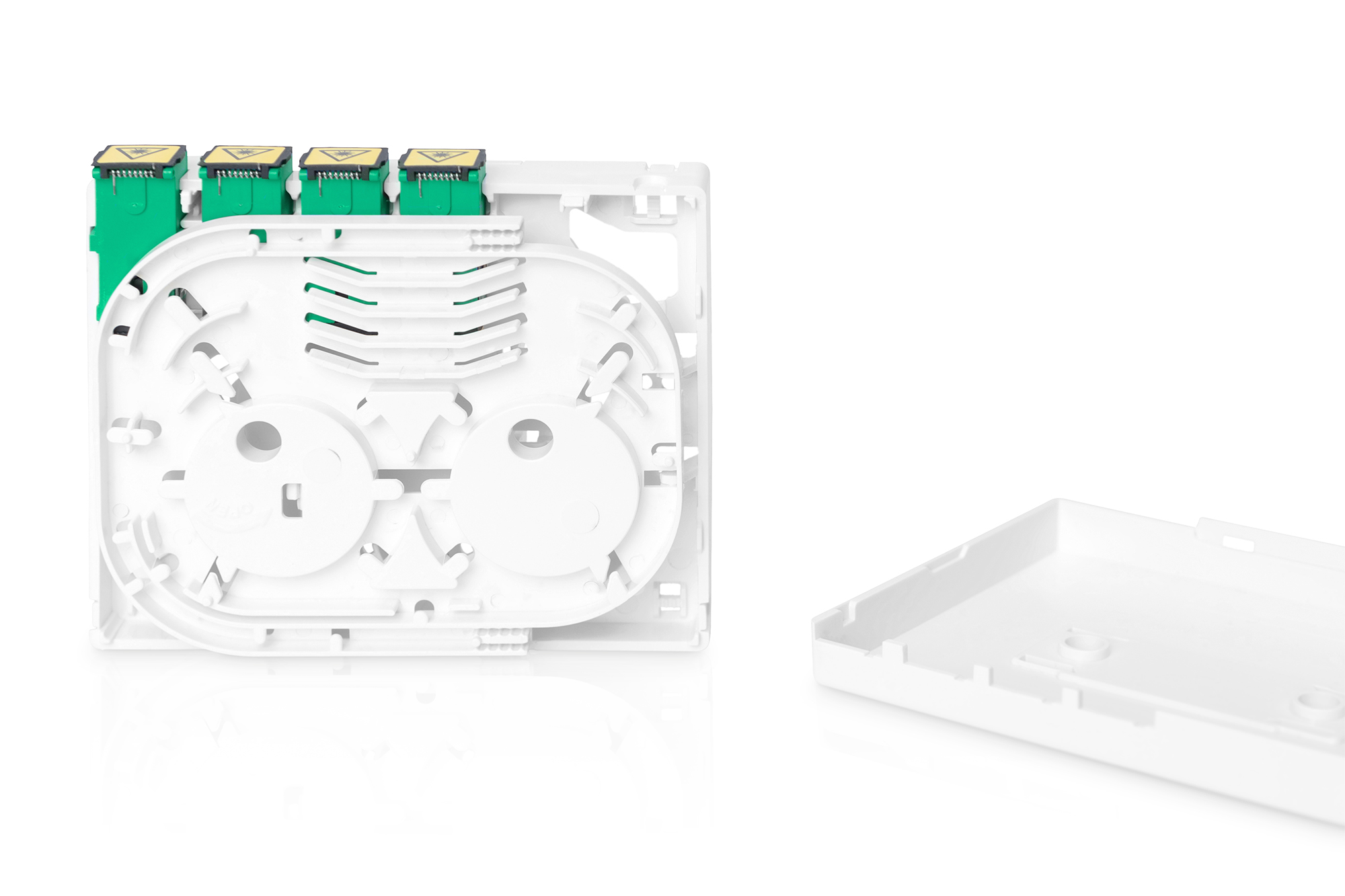

Integrated splice cassette, hinged with cable routing
Dust protection design with protection type IP45
Integrated labeling field on the housing cover
Suitable for fusion splicers or mechanical splicers
Easy maintenance and expansion

DESCRIPTION

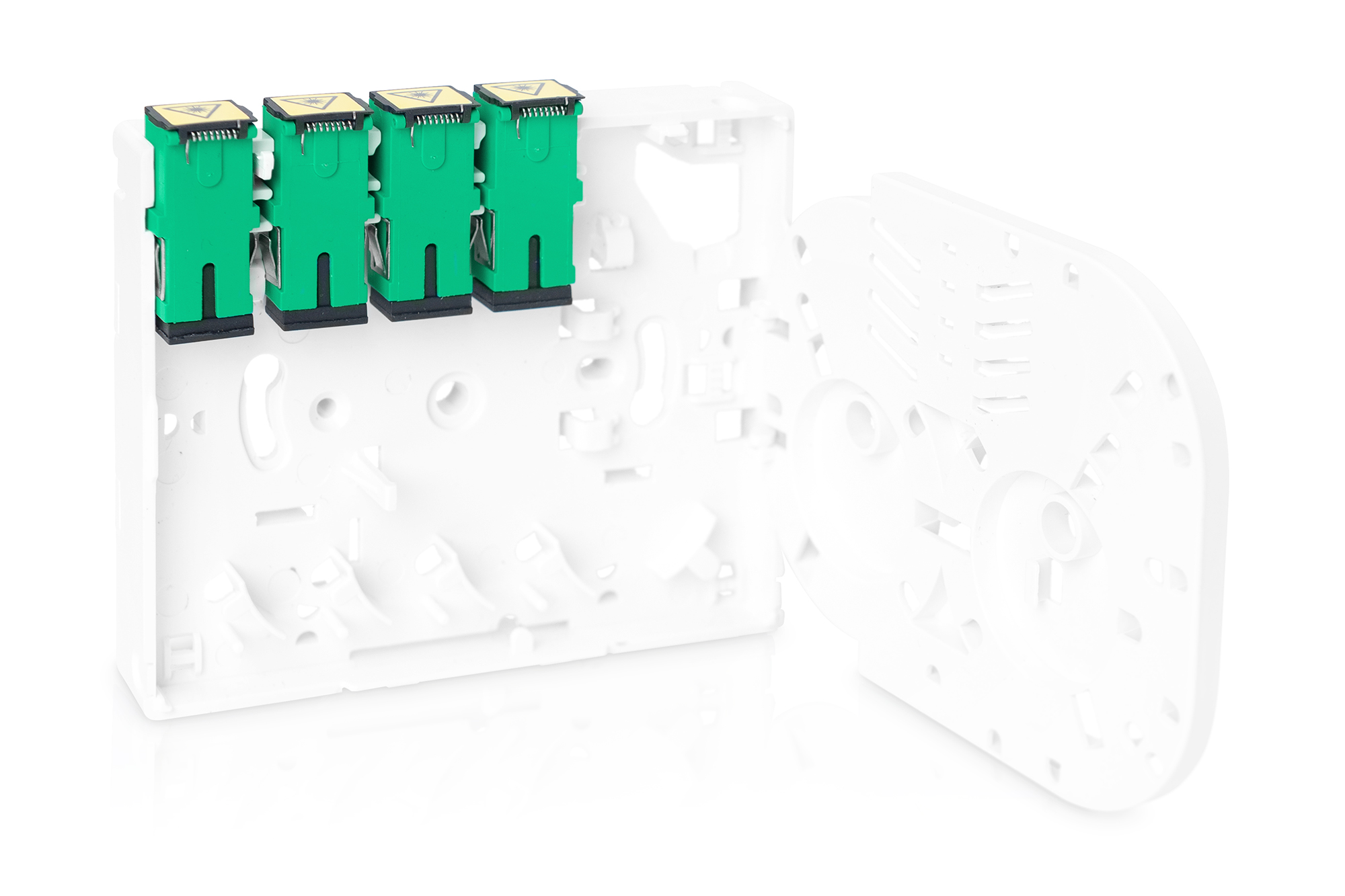

The FTTX housing can hold up to 4 fiber optic cables and distribute them to 4 end devices with the matching couplings. This housing is equipped with 4 x SC Simplex couplings; alternatively, 4 x LC Duplex couplings (without flange) can be inserted. The housing consists of a front panel, the housing with expandable splice cassette and a transparent plastic cover for additional protection of the spliced fiber optic cable. The box can be mounted on the wall or snapped onto a profile rail (DIN rail). Bring together fiber splices, terminations, storage and connections in a minimal space with the ultra-compact DIGITUS® FTTX.

TECHNICAL DETAILS
Suitable for 4 ports: 4 x SC SX (integrated) / alternative: 4 x LC DX (not incl.) (without flange)
Integrated splice cassette
Protection type: IP45
Installation: Wall or profile rail (DIN rail)
Suitable for single-mode and multi-mode fiber optic cables
Return loss: -50dB(UPC), 60dB(APC)
Operating temperature: -40°C ~ +85°C
Housing material: PC + ABS
Dimensions: 100 x 80 x 30 mm (LxWxH)
Weight: 0.4 kg (without couplings)
PACKAGE CONTENT
FTTX housing equipped with 4 x SC SX couplings
