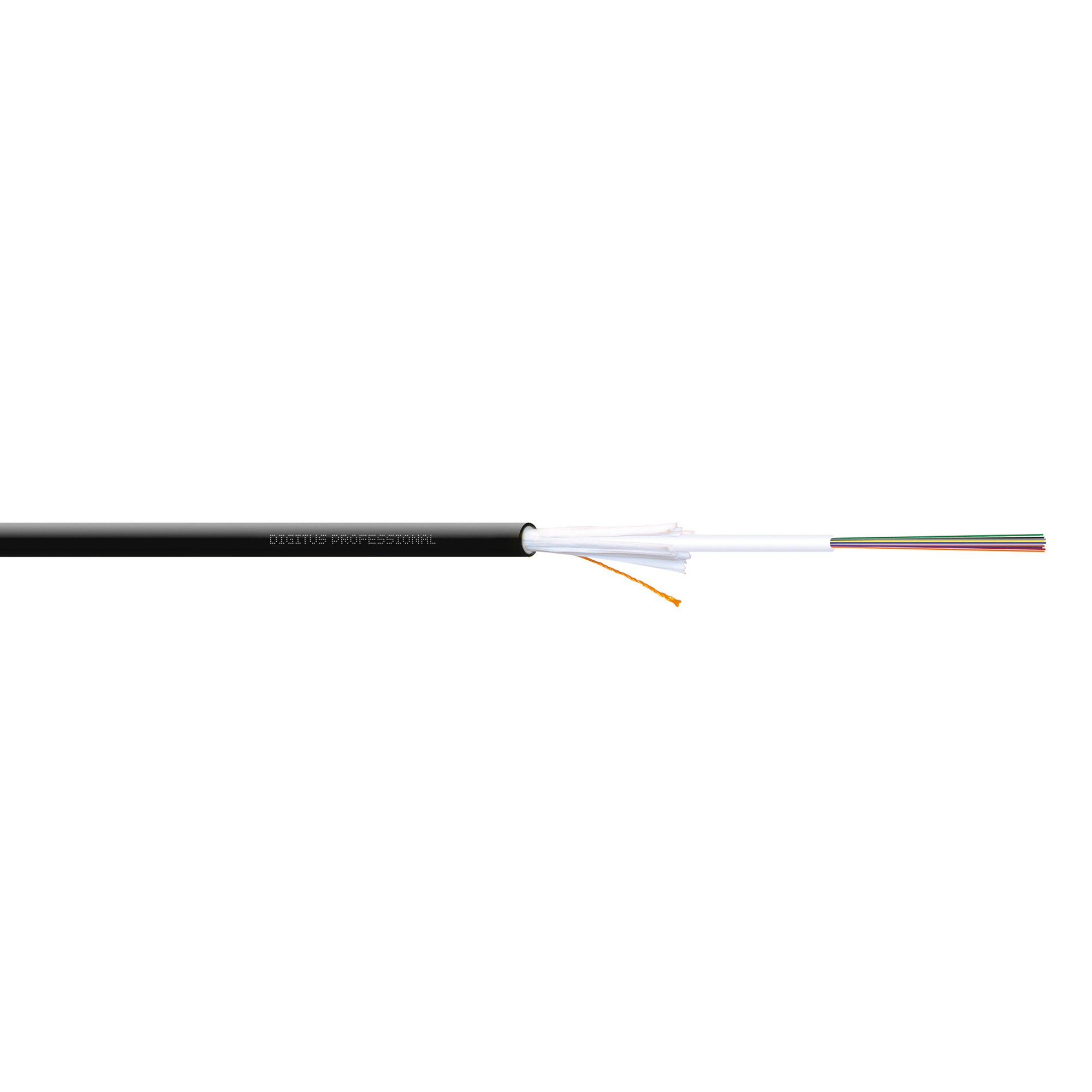

DIGITUS Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125µ OS2, 12 fibers, CPR Dca, LSZH
Product number: DK-39121-U
EAN: 4016032272199
FO A-I-DQ(ZN)BH 12E9/125µ, SM, OS2, 12 fibers Indoor/Outdoor, LSZH, Dca, black, length 1 m
Future-oriented standards and high-end quality for your network.
OS2 9/125µ

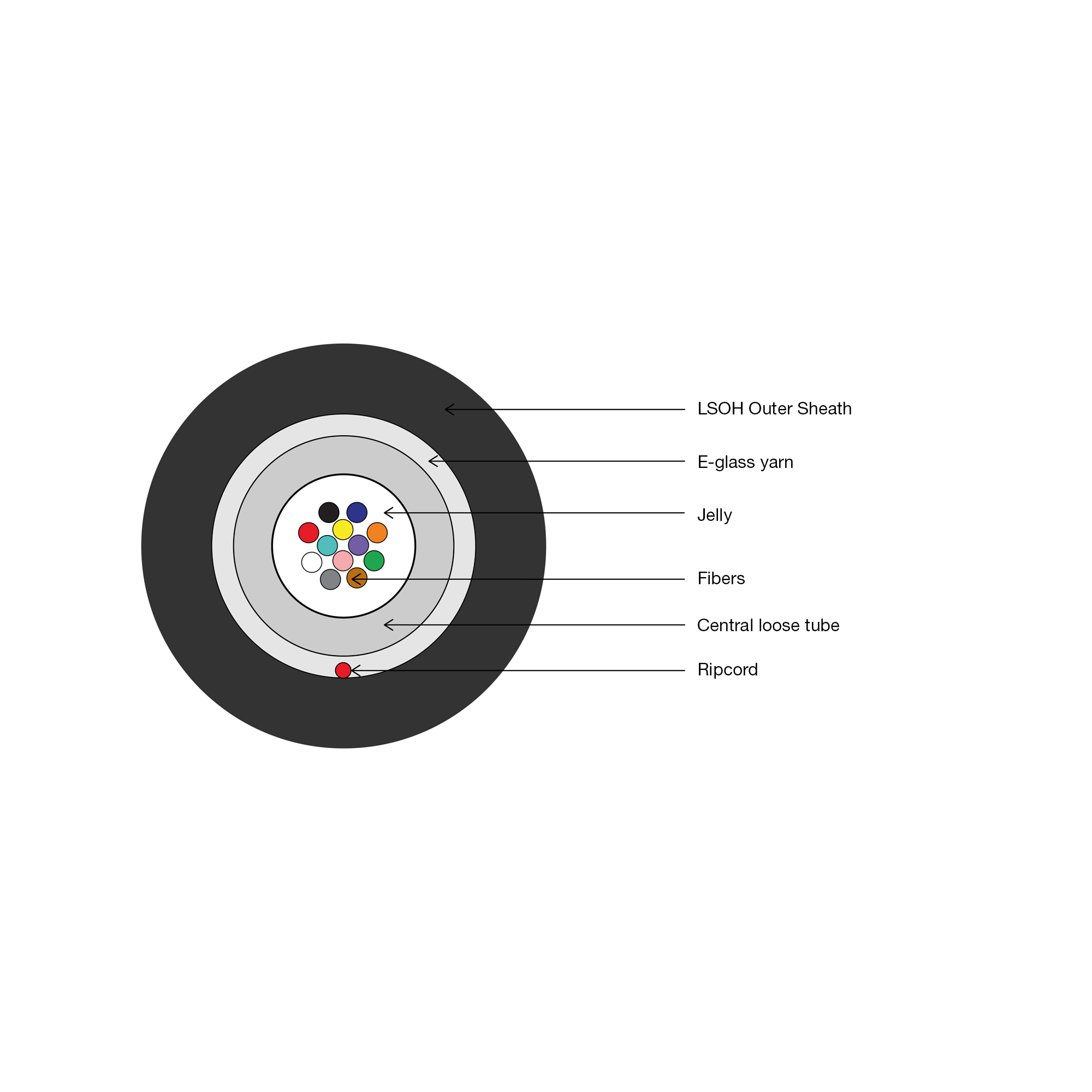

Central loose tube 12 fibers
Non-metallic rodent protection
LSZH, CPR Dca
DESCRIPTION
Loose tube cable is a design that has high tensile strength and flexibility in a compact cable size. Our loose tube cable provides excellent optical transmission and physical performance. We ensure a continuing level of quality in our cable products through several quality control programs including ISO 9001 and all the materials have passed REACh and RoHS. We ensure product reliability through rigorous qualification testing of each product family. Both initial and periodic qualification testing are performed to assure the cables performance and durability in the field environments.
TECHNICAL DETAILS
LSZH – low smoke zero halogen
UV-resistant
Longitudinaly and laterally water-resistant
Glass yarn armoured
Non-metal rodent protection
Metal free
Attenuation at 1310nm : ≤ max. 0.34 dB/km (before cabling) ; ≤ max. 0.36 dB/km (after cabling)
Attenuation at 1550nm: ≤ max. 0.21 dB/km (before cabling) ; ≤ max. 0.22 dB/km (after cabling)
Attenuation at 1625nm : ≤ max. 0.23 dB/km (before cabling) ; ≤ max. 0.25 dB/km (after cabling)
Zero Dispersion Wavelength : 1302 ~ 1324 nm
Zero Dispersion Slope : ≤ 0.092 ps/nm 2 x km
PMD Link value ( M= 20 cables Q= 0.01%) max. PMDQ : 0.2 ps/√km
Cable Cutoff Wavelength (λcc) : ≤ 1260 nm
Macro bending Loss (100 turns ; Φ50nm) at 1550 nm : ≤ 0.05 dB
Macro bending Loss (100 turns ; Φ50nm) at 1625 nm : ≤ 0.10 dB
Mode Field Diameter at 1310nm : 9.2 ± 0.4 µm
Cladding diameter : 125 ± 1 µm
Core/ clad concentricity error : ≤ 0.6 µm
Cladding Non-Circularity : ≤ 1.0 %
Proof stress : ≥ 0.69 Gpa
Fiber count (OS2 G.652D) : 2-12 pc
Max. number of loose tube : 1 pc
Fiber number per tube : 2 - 12 pc
Loose tube : 2.0 ± 0.2 mm
Outher sheath material : LSZH, CPR Dca, EN 50575: 2014+A1: 2016
Cable outer diameter : 6.5 ± 0.5 mm
Max. allowable pulling force : 1400 N
Crush resistance : 1000/200 N/100mm
Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C
Min. bending radius : installation : 20 x OD ; operation : 10 x OD
ATTRIBUTES
Application: universal
Cable jacket: LSOH
Cable type: U-DQ (ZN) BH X E 9/125µm
Color cable: black
Fiber class: OS2
Fiber diameter: 9/125µ
Mode: Singlemode
Number of fibers: 12
