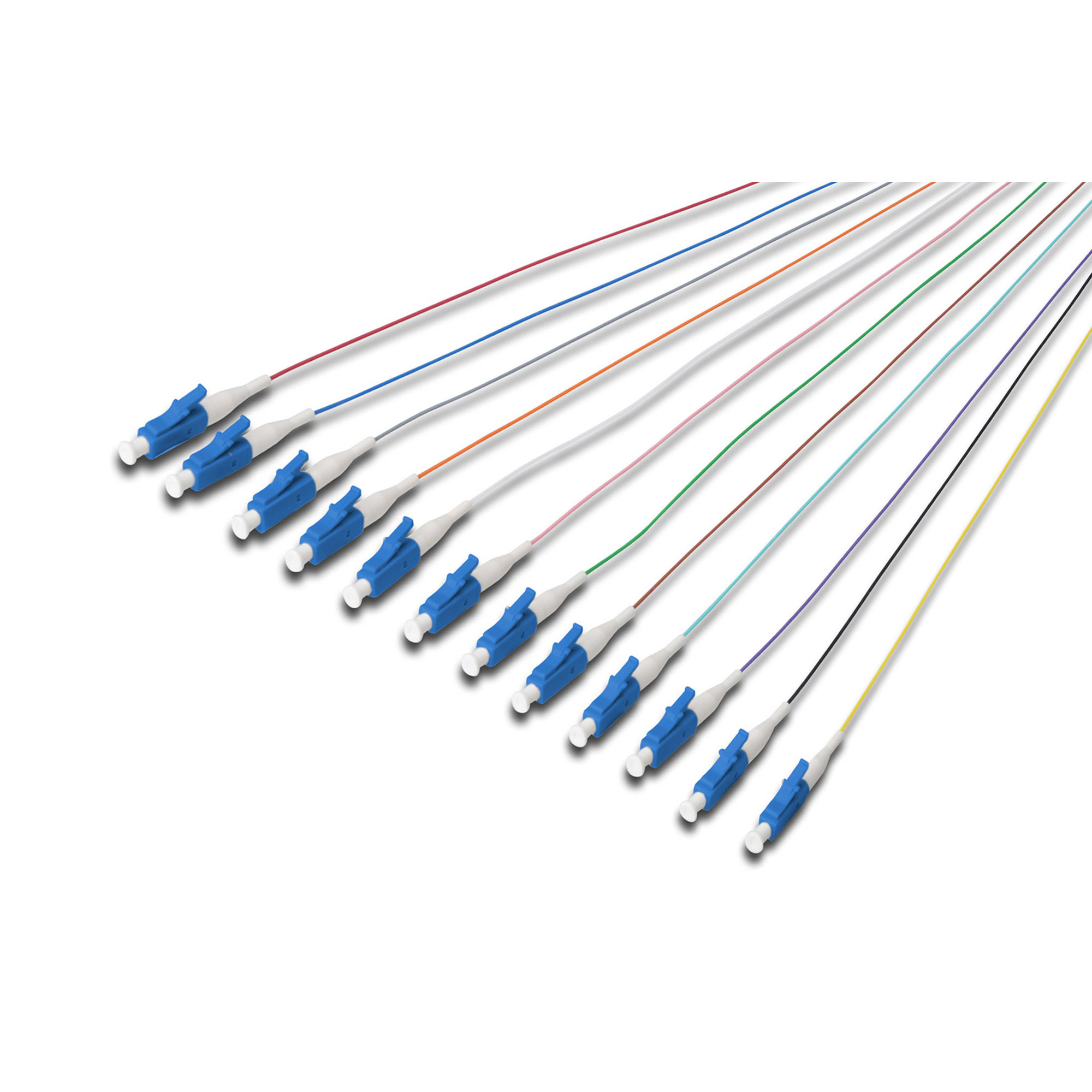

DIGITUS colored pigtails, LC OS2 09/125 µ, Simplex

Product number: DK-29332-02
EAN: 4016032280170
FO pigtail set, 12 pcs., LC, SM OS2 09/125 µ loose buffer, color code DIN IEC 304, 2 m

Future-oriented standards and high-end quality for your network.

DESCRIPTION
The DIGITUS® Fiber Optic Colored Pigtails are available as LC Simplex, SC Simplex and ST Simplex version and offer with the classes OS2, OM2, OM3 and OM4 best performance and link quality for your network. The connector conforms acc. IEC 61754-4 2002 and is equipped with a Zirconia ceramic ferrule. The colored buffers are color coded according to IEC 304 (white, violet, turquoise, black, red, pink, orange, gray, green, yellow, brown, blue).

TECHNICAL DETAILS
Simplex OS2 09/125 µ 2 m
Standard connector acc. IEC 61754-4 2002
Operating temperature: -25 °C ... +80 °C
Storage temperature: -20 °C ... +65 °C
Insertion loss MM PC: max. 0.4 dB
Return loss MM PC: - 25 dB
Zirconia ceramic ferrule
Secondary coating dimensions: Ø 0.9 ± 0.1 mm
Primary coating: Acrylate; Ø 250 ± 15 µm
Colored buffer, according to IEC 304 in the colors white, violet, turquoise, black, red, pink, orange, grey, green, yellow, brown, blue
12 pcs in package
Loose buffer

ATTRIBUTES
Boot: single-color
Connector 1: LC
Fiber class: OS2
Fiber diameter: 9/125µ
Mode: Singlemode
Length: 2 m
