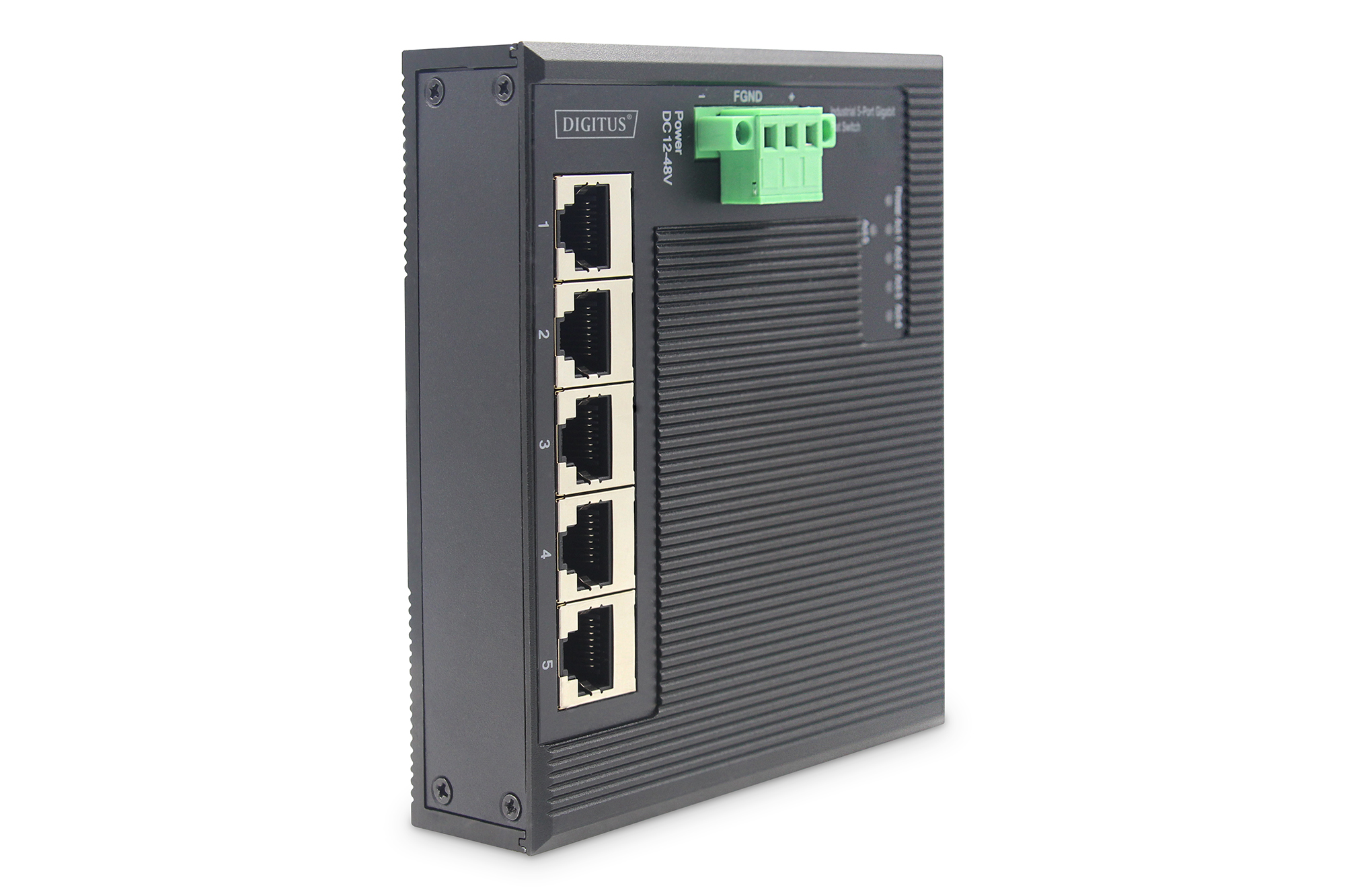

DIGITUS 5 Port Gigabit Ethernet Network Switch Switch, Flat, Industrial, Unmanaged
Product number: DN-651126
EAN: 4016032462835
Industrial 5-Port Gigabit Flat Switch 5-port, DIN rail, extended temp. range

Robust industry solution, high temperature range, space-saving flat case for profile rail mounting

5 x 10/100/1000 Base-TX Ethernet ports
Suitable for DIN rail (top-hat rail) mounting
Space-saving, flat housing
Fanless design
Store and forward technology for optimized data transfer
Backplane capacity: 14 Gbps
MAC address memory: 2K (auto-learning, auto-aging)
Excellent protection against short circuits
Lightning and surge protection

DESCRIPTION
The DIGITUS® Industrial Flat Gigabit Switch was developed for harsh environments in which it is exposed to moisture, temperature fluctuations and vibrations. With a temperature range from -40 °C to 80 °C, the Industrial Flat Gigabit Switch can be used under the most adverse of conditions. The flat, fanless casing saves space and additional energy costs. It guarantees constant availability in highly sensitive sectors such as transport, production, transport and security surveillance. The simple plug and play system lets the Industrial Flat Gigabit Switch be quickly integrated into the respective environment. With its gigabit connectivity, the Industrial Gigabit Switch is a flexible and cost-effective solution for industrial environments.

TECHNICAL DETAILS
5 x 10/100/1000 Base-TX Ethernet ports
Automatic cable recognition - auto MDI/MDI-X function
Supports standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
LED display: Power (on/off), link (on/off/data)
Store and forward technology for optimized data transfer
Automatic speed and half/full duplex detection/adjustment
Backplane capacity: 14 Gbps
MAC address memory: 2K (auto-learning, auto-aging)
Robust, flat metal case
Excellent protection against short circuits
Lightning and surge protection
Suitable for DIN rail (top-hat rail) mounting
Fanless design
Electrostatic standard: Contact 8kV, air 12kV
Power supply via terminal strip (3 clamps, +/-/PE)
Power supply: DC 12 - 48 V
Operating temperature: -40 °C to +80 °C
Storage temperature: -40 °C to +80 °C
Operating humidity: 5% - 95% (non condensing)
Storage humidity: 5% - 95% (non condensing)
Dimensions: L 121 x W 104 x H 29,5 mm
Protection type: IP40
Power consumption: max. 3 Watts
