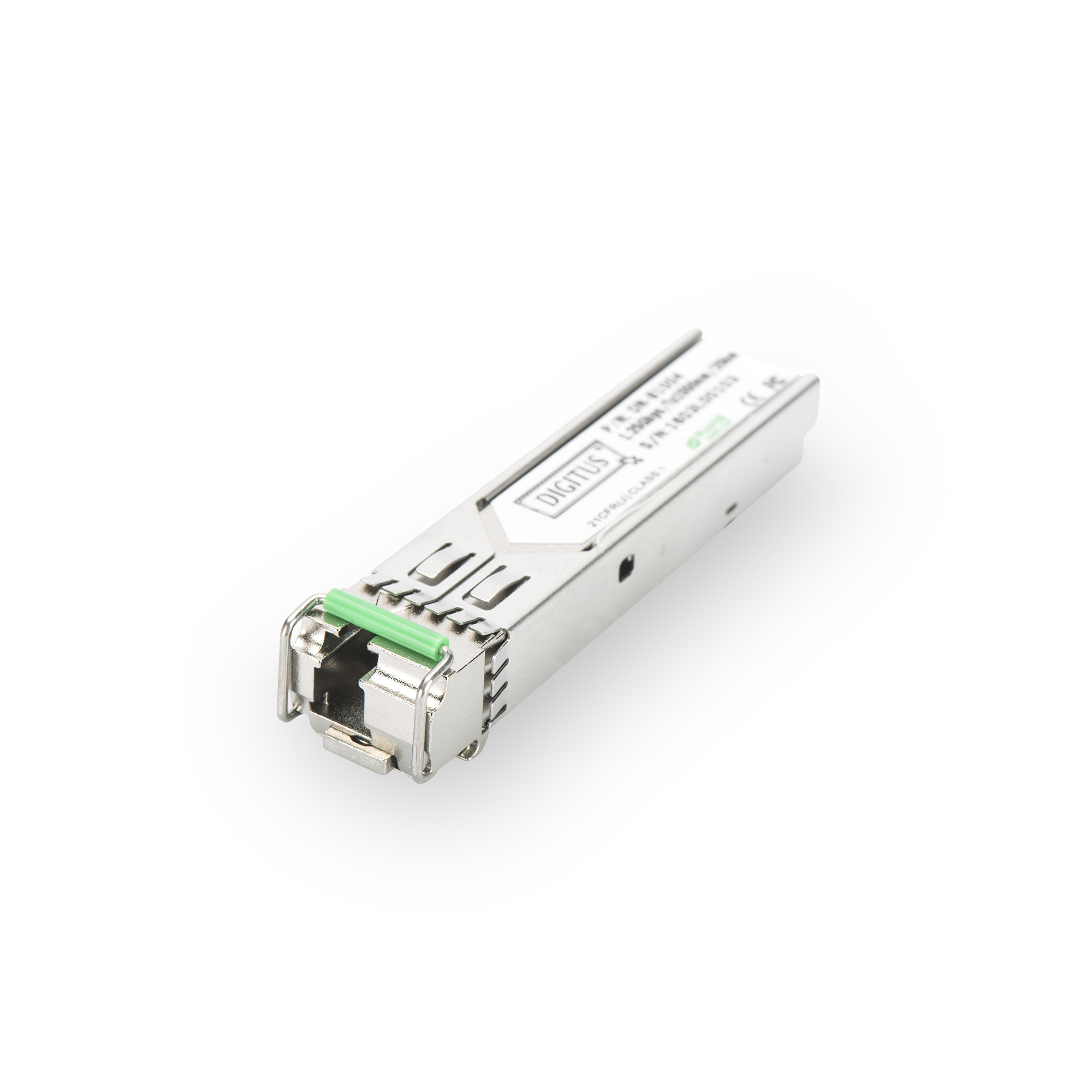

DIGITUS HP-compatible mini GBIC (SFP) Module, 1.25 Gbps, 20km, with DDM Feature
Product number: DN-81004-01
EAN: 4016032391555
1.25 Gbps SFP Module, Singlemode, BiDi, HP-comp. LC Simplex, Tx1550nm/Rx1310nm, up to 20km, HP

The plug and play fiber connection

The Plug - Play fiber optic link enables quick installation
Sends data in high quality and additionally provides excellent reliability
Distance up to 20 km at a maximum data rate of 1.25Gbps
Operating temperature: 0 °C ~ 70 °C

DESCRIPTION
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

TECHNICAL DETAILS
HP compatible
HP-Aruba compatible
Mini GBIC SFP (Small Form Factor Pluggable) module
Supports DDM (Digital Diagnostic Monitoring)
Bidirectional WDM Module - Only one fiber is needed
High quality and excellent reliability
1.25 Gbps Maximum Data Rate
Compliant to IEEE 802.3z Gigabit Standard
Class 1 laser product compliant with EN 60825-1
Easy plug-and-play installation
MSA (Multi Source Agreement) compliant
Hot pluggable

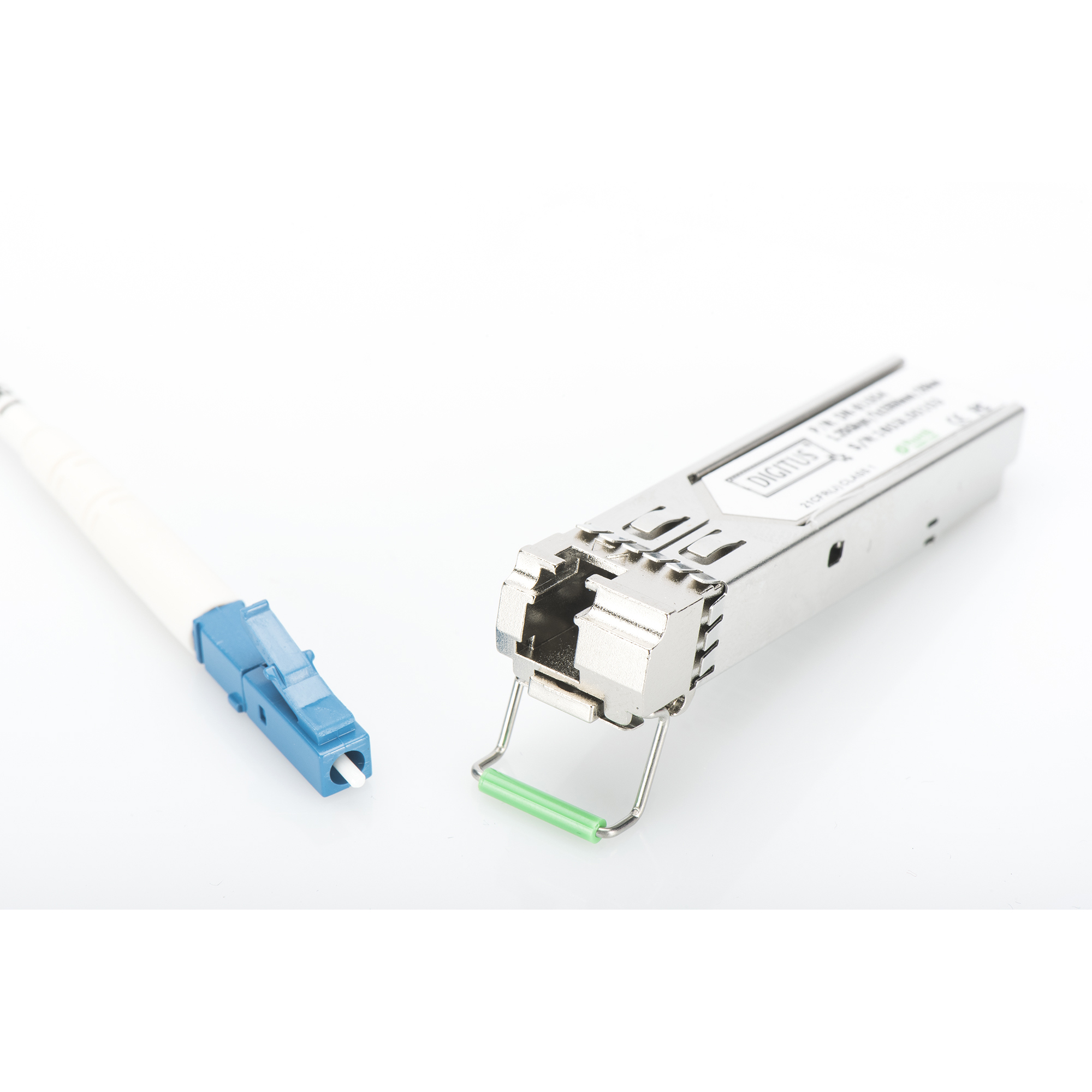

Connector: 1x LC Simplex
Wavelength: Tx 1550nm / Rx 1310nm
Transmission Power: Minimum -5 dBm, Maximum 0 dBm
Sensitivity receiving power: minimum -24 dBm
For a Distance of up to 20km
Suitable for 09/125µm Singlemode Fiber Cables
Safe fast-locking mechanism
3.3V power supply
Suitable Module for Opposite Side: DN-81003
Operating temperature: 0 °C ~ 70 °C
Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXE
