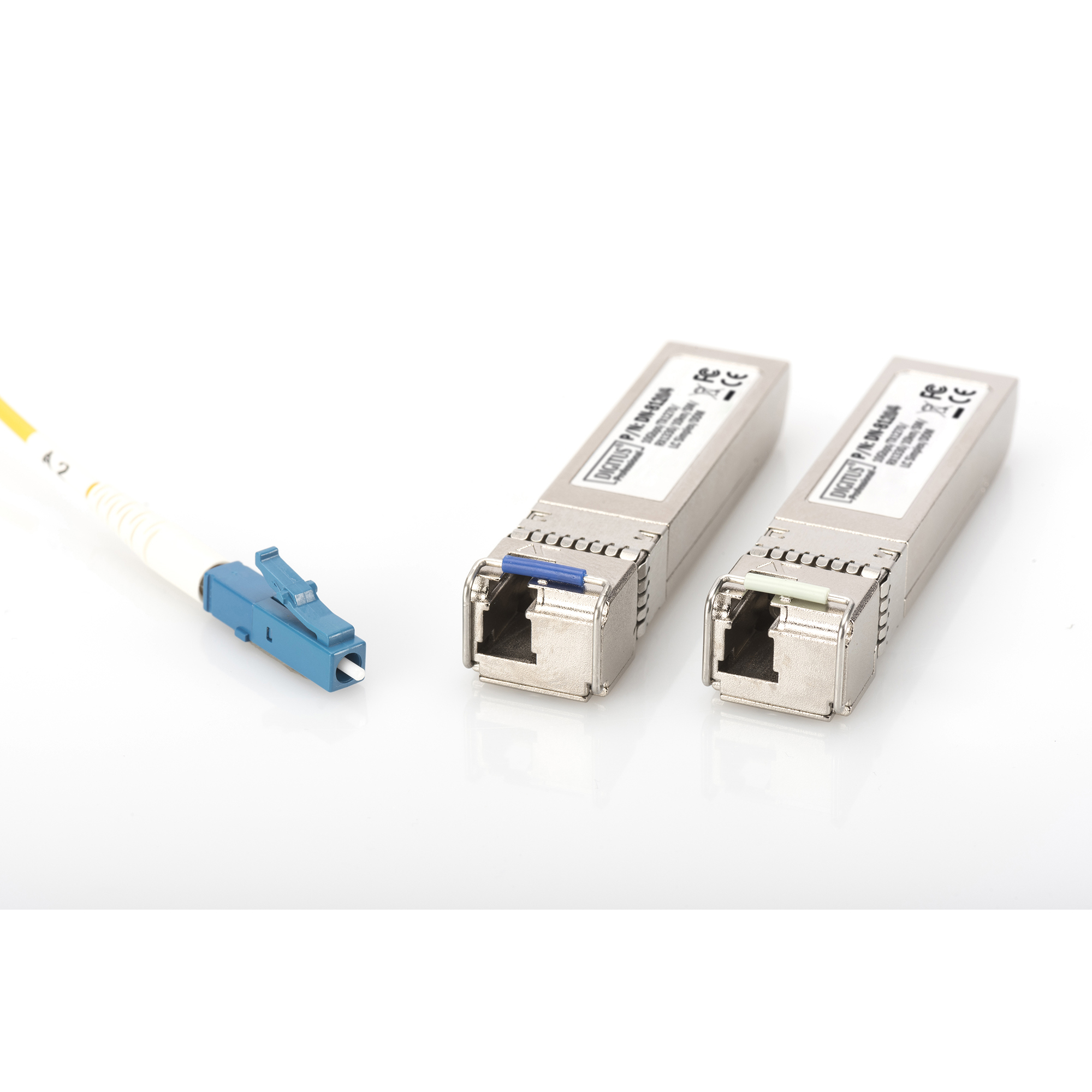

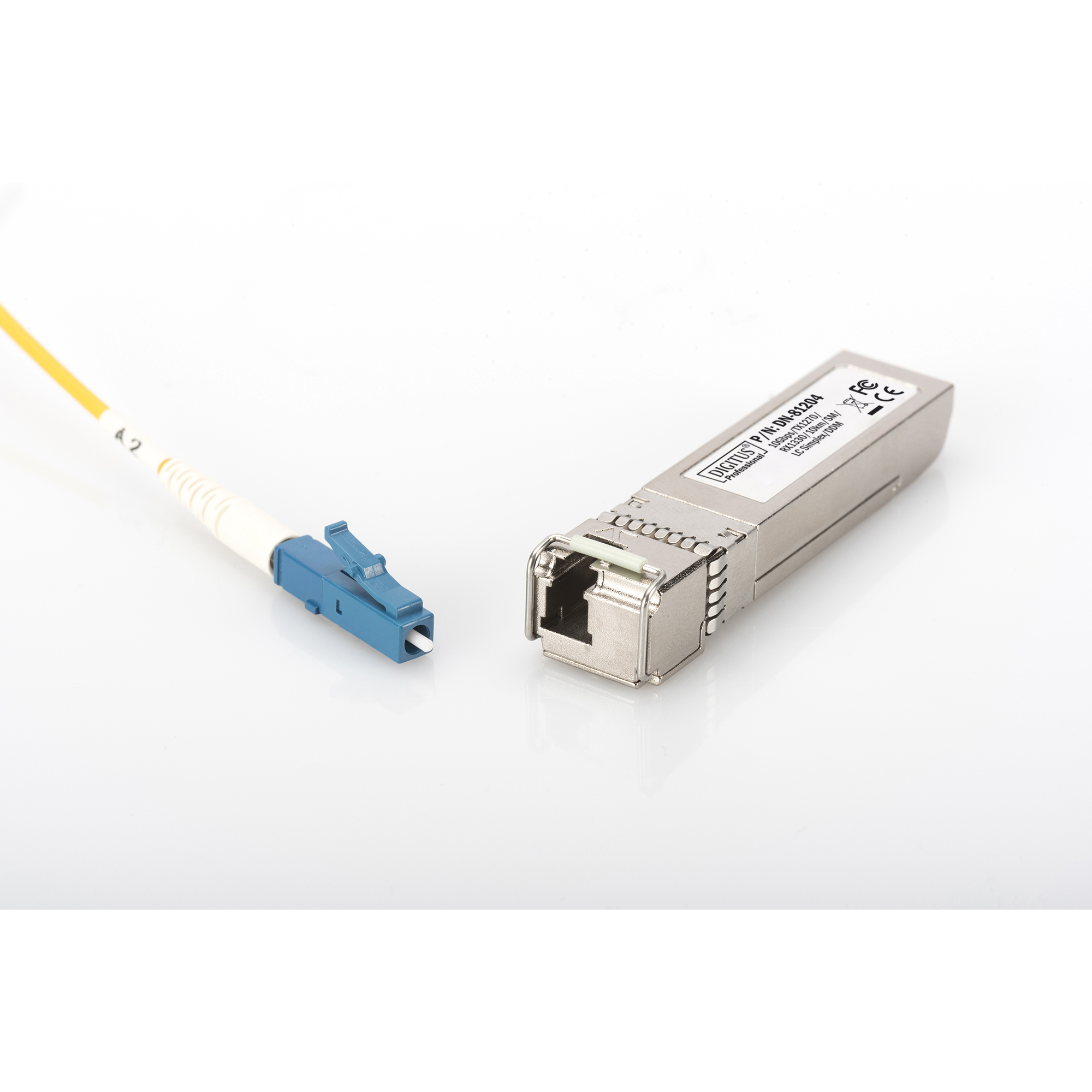

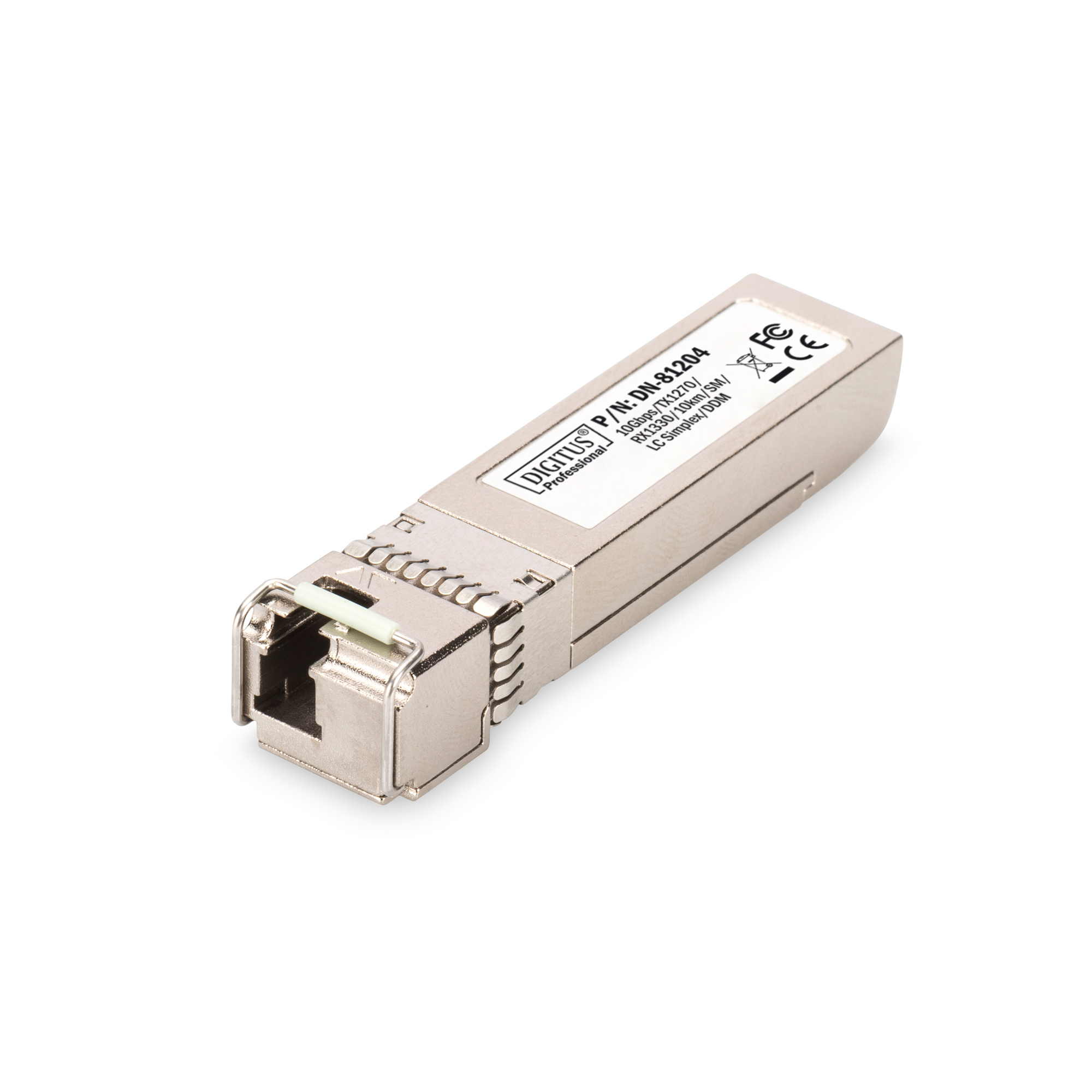

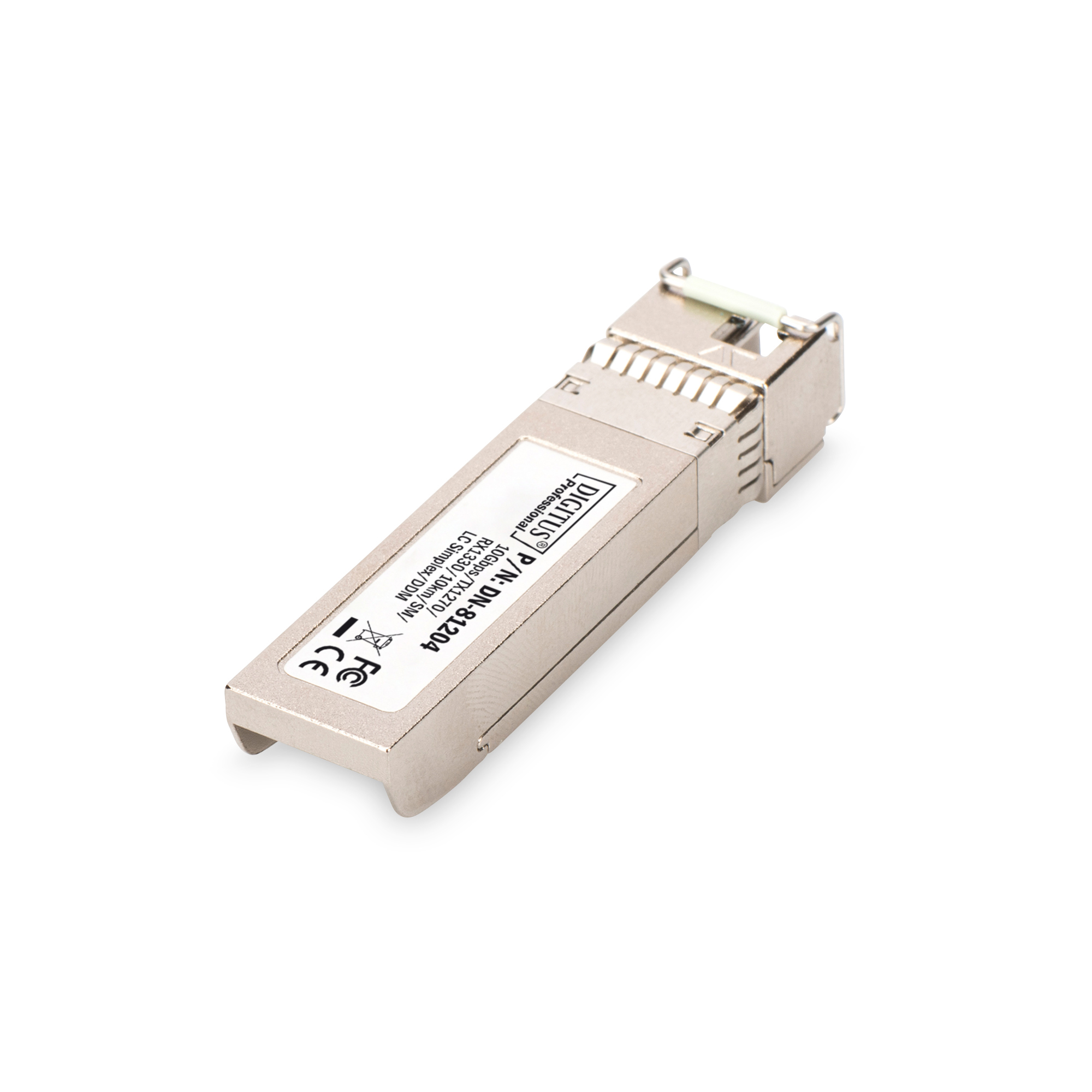

DIGITUS SFP+ 10 Gbps Bi-directional Module, Singlemode, TX1270/RX1330, 10km
Product number: DN-81204
EAN: 4016032424260
10G SFP+ Module, Singlemode, BiDi, DDM LC Simplex Connector, Tx1270/Rx1330, up to 10km

The plug and play fiber connection

The Plug - Play fiber optic link enables quick installation
Distance up to 10km at a maximum data rate of 10Gbps
Sends data in high quality and additionally provides excellent reliability
Bidirectional WDM Module - Only one fiber is needed
Operating temperature: 0 °C ~ 70 °C

DESCRIPTION
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

TECHNICAL DETAILS
SFP+ (Small Form Factor Pluggable) module
Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyX
Connector: 1x LC Simplex
Bidirectional WDM Module - Only one fiber is needed
Wavelength: TX 1270 / RX 1330, Singlemode
10Gbps Maximum Data Rate
Transmission power: minimum -5 dBm, maximum 0.5 dBm
Sensitivity Receiving Power: Minimum -13 dBm
For a Distance of up to 10km
Safe fast-locking mechanism
Supports DDM-Feature (Digital Diagnostic Monitoring)
High quality and excellent reliability
Compliant to IEEE 802.3ae 10 Gigabit Standard
Class 1 laser product compliant with EN 60825-1
Easy plug-and-play installation
MSA (Multi Source Agreement) compliant
Hot pluggable
3.3V power supply
Suitable for 09/125µm Singlemode Fiber Cables
Operating temperature: 0 °C ~ 70 °C
