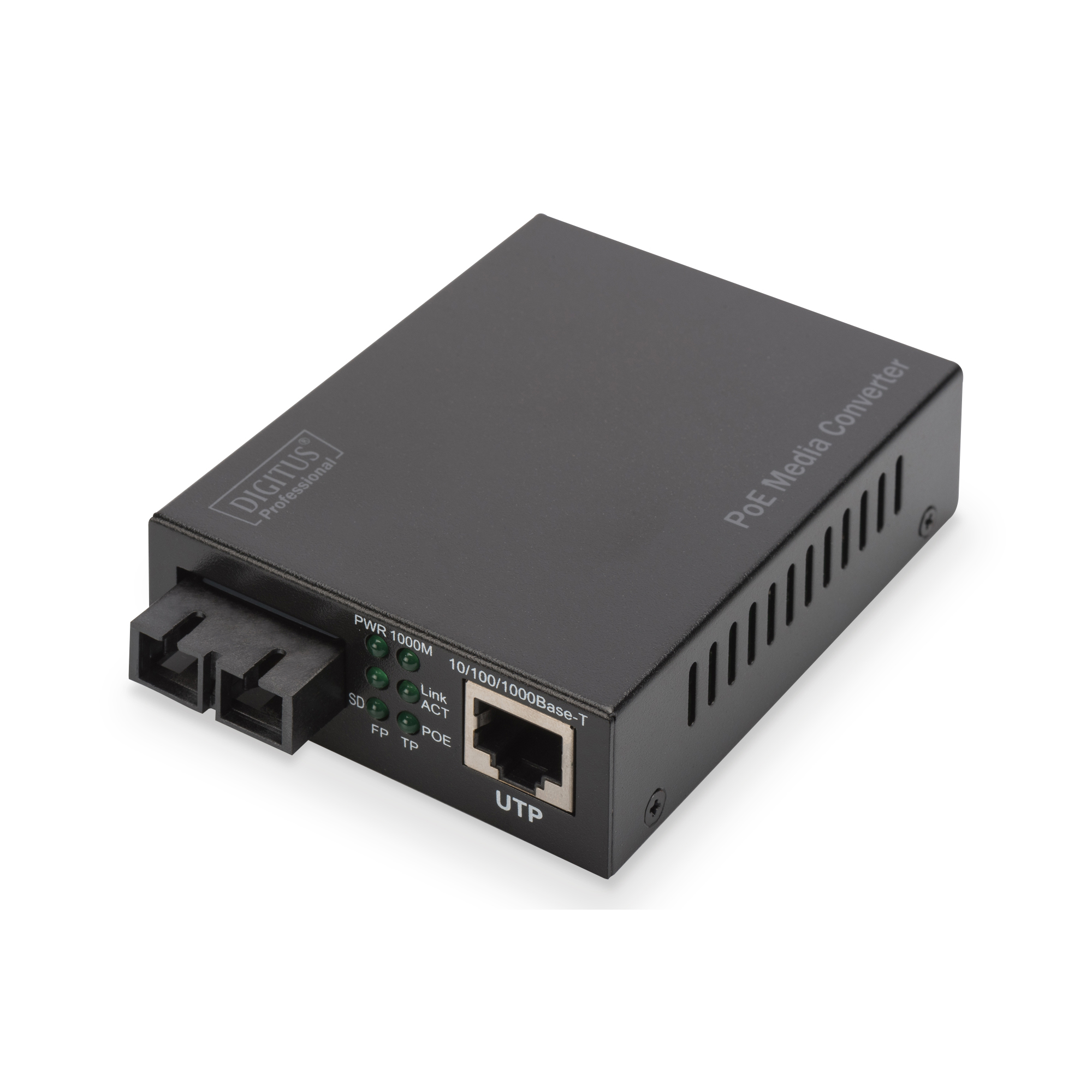

DIGITUS Gigabit PoE media converter, RJ45 / SC, SM, PSE
Product number: DN-82160
EAN: 4016032390039
Gigabit Ethernet PoE+ Media Converter, Singlemode 802.3at, 30W, SC connector, up to 20km

The perfect converter solution for optical data transmission

PoE power supplier, PSE
Sends data with high quality and additionally offers the highest level of failure safety
A fast transfer in the gigabit range is guaranteed
Range of up to 20km

DESCRIPTION
The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

TECHNICAL DETAILS
PoE power supplier, PSE

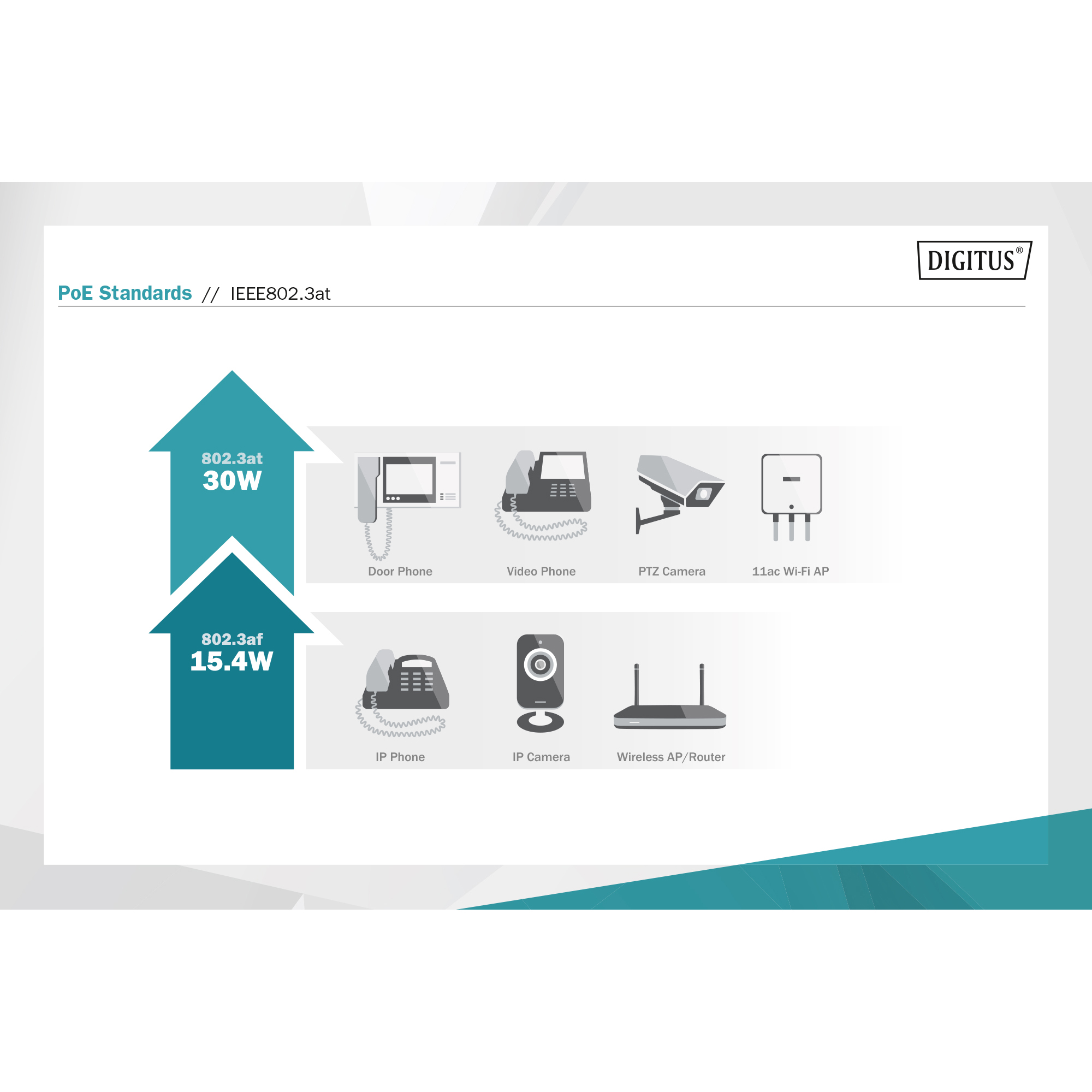

Compatible with the IEEE802.3af and IEEE802.3at standards
PoE power supply via PIN 4/5 (V-) and PIN 7/8 (V+)
Maximum total output of 30 watts
Compatible with IEEE802.3, IEEE802.3u and IEEE802.3z standards
Automatic cable recognition - Auto MDI/MDI-X function
Auto recognition of full and half duplex
Converts wire-based network signals into fiber optic signals
10/100/1000Base-TX to 1000Base-LX

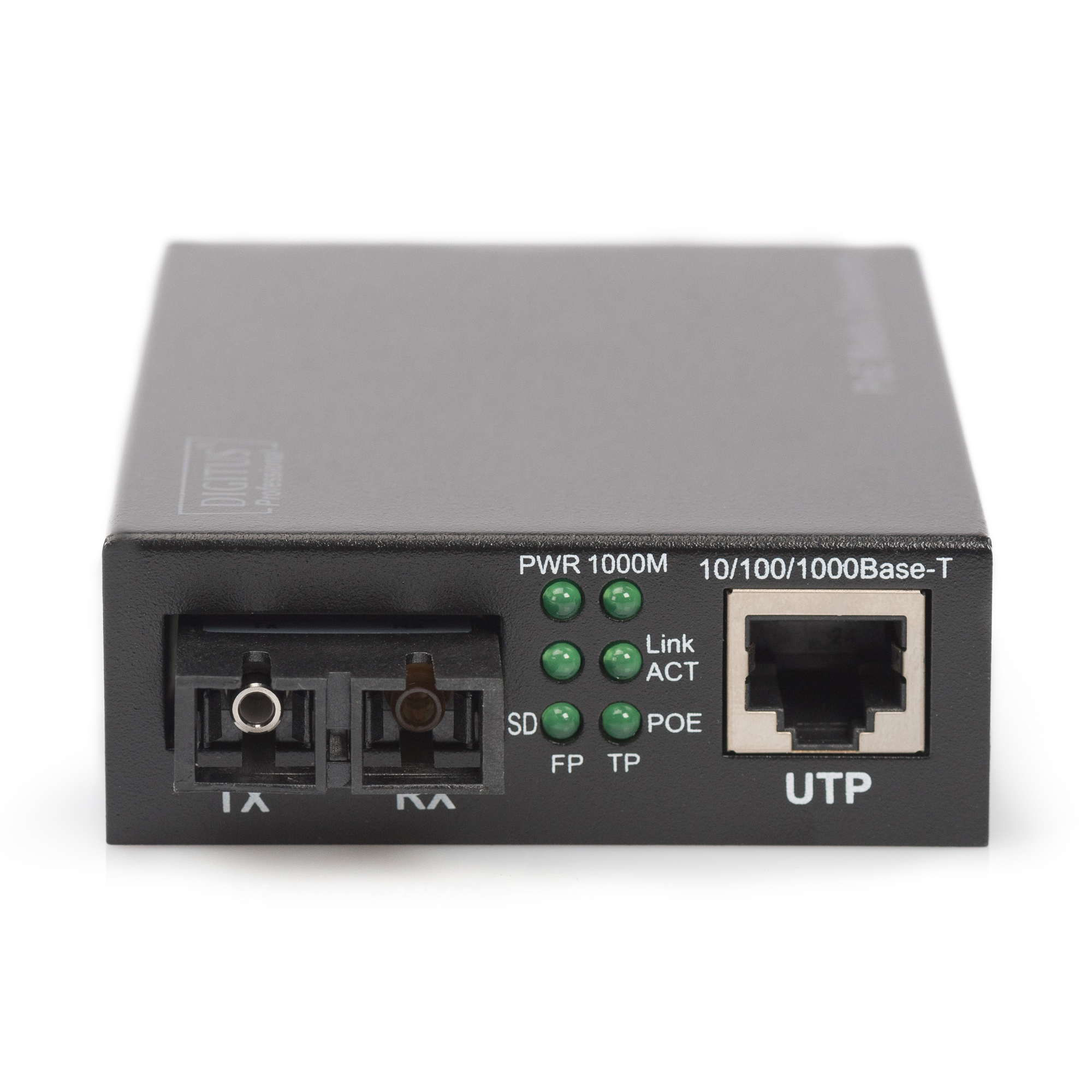

Ports: 1x RJ45, 1x SC duplex
Range of up to 20km
Wavelength: 1310nm
Singlemode Dual Fiber
Diagnostic LEDs for status and activity monitoring

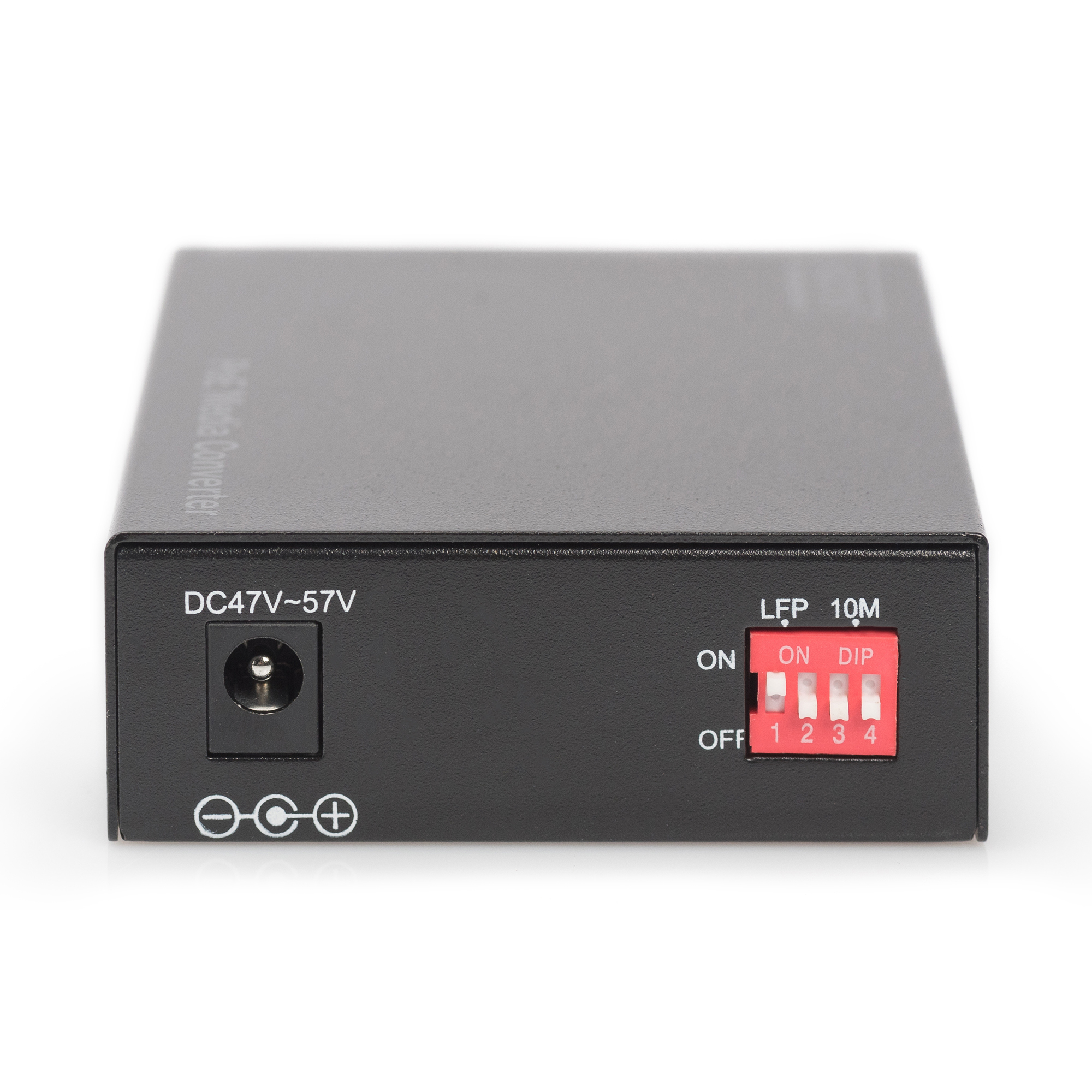

Power supply: 48~52V DC
Operating temperature: -20°C - 65°C
Storage temperature: -40°C - 85°C
Dimensions (mm): 95(L) x 71(W) x 26(H)
MTBF: 500,000 hours
