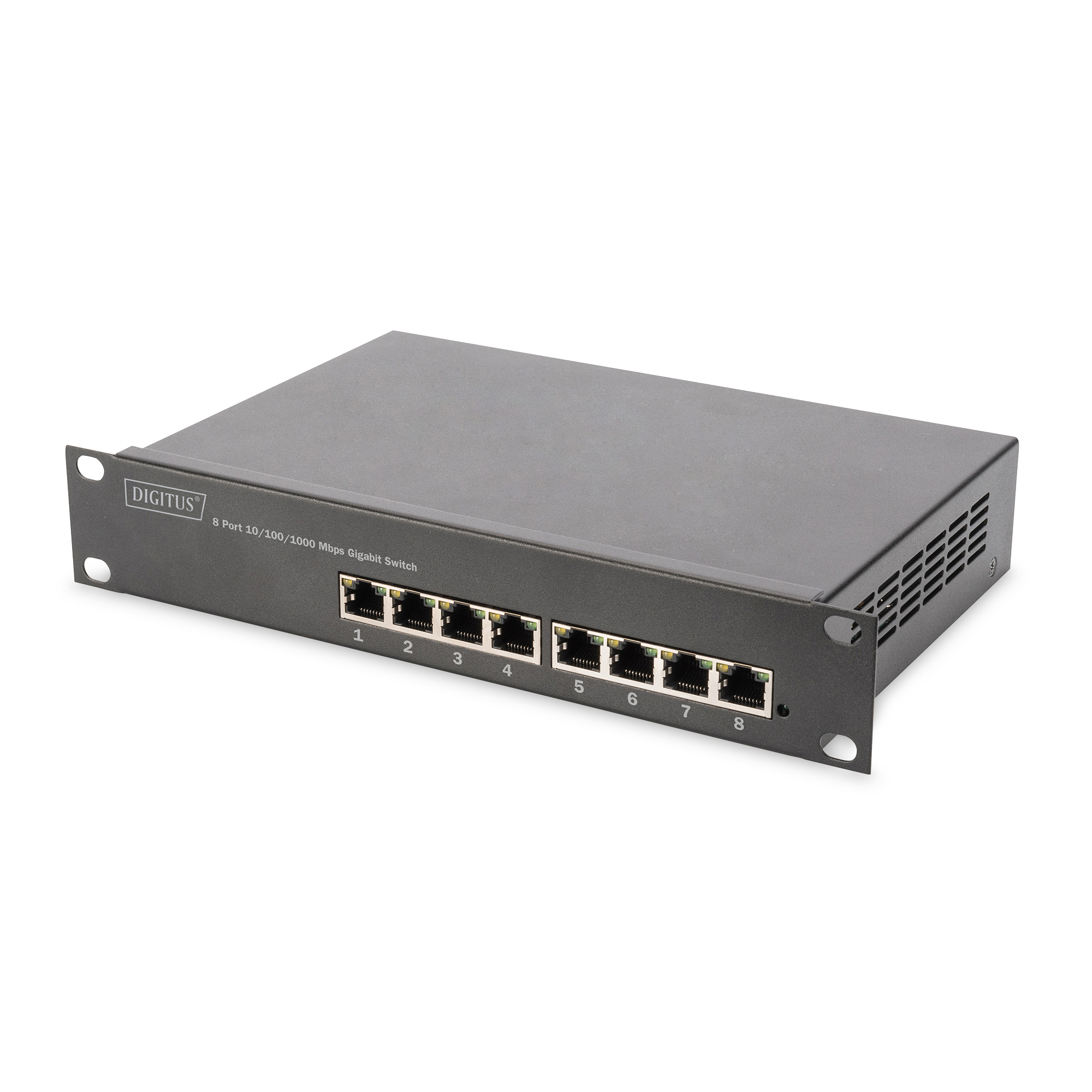

DIGITUS 10- Gigabit 8-Port L2 Managed PoE+ Switch
Product number: DN-95331
EAN: 4016032464365
L2+ managed Gigabit Ethernet PoE Switch 8-port PoE, 10 inch, 80W PoE budget

Combines professional network security, VLAN segmentation and PoE+ supply in a compact and quiet 10- switch.

Eight Gigabit PoE+ ports for APs, cameras, VoIP - IoT
L2 managed functionality for professional network control
VLAN support for secure segmentation
QoS for prioritizing important applications (e.g. VoIP, video)
IGMP Snooping - ideal for surveillance - IPTV
Link aggregation for reliability and higher bandwidth
Extensive security functions (port security, access control)
Fanless, reliable metal housing for 24/7 operation
Compact 10- design for small network distributors
Simple management via web GUI, SNMP or CLI

DESCRIPTION
The DIGITUS® DN-95331 is a professional 8-port Gigabit PoE+ switch in a compact 10- form factor, developed for high-performance networks in corporate, security and building technology environments. With eight PoE+-capable RJ45 ports, the switch enables the central supply of IP cameras, WLAN access points, VoIP telephones or IoT components - each with up to 30 W per port (IEEE 802.3af/at). In contrast to simple PoE switches, the DN-95331 offers extensive L2 management functions such as VLAN, QoS, IGMP snooping, link aggregation, port mirroring, security mechanisms and traffic control. This makes it ideal for professional installations in which networks need to be precisely segmented, secured and prioritized. The compact 10- design makes it the ideal choice for small technology distributors, wall-mounted housings or floor installations. Its fanless metal housing ensures reliable and silent continuous operation. The combination of PoE+, Gigabit performance and L2 management makes the DN-95331 an ideal basis for CCTV systems, digital building infrastructure, WLAN distribution and networked workplaces. Top USP: Managed PoE+ with comprehensive L2 functions in a space-saving 10- format - ideal for professional CCTV - WLAN installations.

TECHNICAL DETAILS
Network - Performance
8 × 10/100/1000 Mbps RJ45 ports
PoE standards: IEEE 802.3af/at (PoE+)
Max. Power per port: up to 30 W (PoE+)
Total PoE budget: ~120 W (depending on model)
Auto MDI/MDI-X
Non-Blocking Gigabit Switching
Store-and-forward technology
Gigabit speed per port
Optimized for IP cameras, WLAN APs - IoT
Stable data forwarding without packet loss
Fanless - silent operation
Robust metal housing
Suitable for 10- network cabinets
Compact design (typically approx. 250 × 150 × 42 mm)
VLAN support (port-based / 802.1Q)
Link aggregation (LACP support depending on model)
IGMP snooping for multicast optimization
QoS for prioritized network traffic
Port mirroring for diagnosis
Broadcast - Storm Control
Traffic rate limiting
Access control functions (depending on model)
Web GUI
SNMP (v1/v2c, depending on model v3)
CLI / Telnet / SSH (depending on model)
Firmware and configuration backup
Design - assembly
Completely fanless
Metal housing
Suitable for 10-inch rack mounting
Weight: approx. 2 kg
Electrics - environment
Internal power supply unit, 100-240 V AC
Power consumption: ~10-140 W
Operating temperature: 0-40 °C
Storage: -10-70 °C
Humidity: 5-95 %, non-condensing
