DIGITUS Wall Mounting Cabinet, SOHO, unmounted - 540x400 mm (WxD)
Product number: DN-19 07U-S-1
EAN: 4016032331698

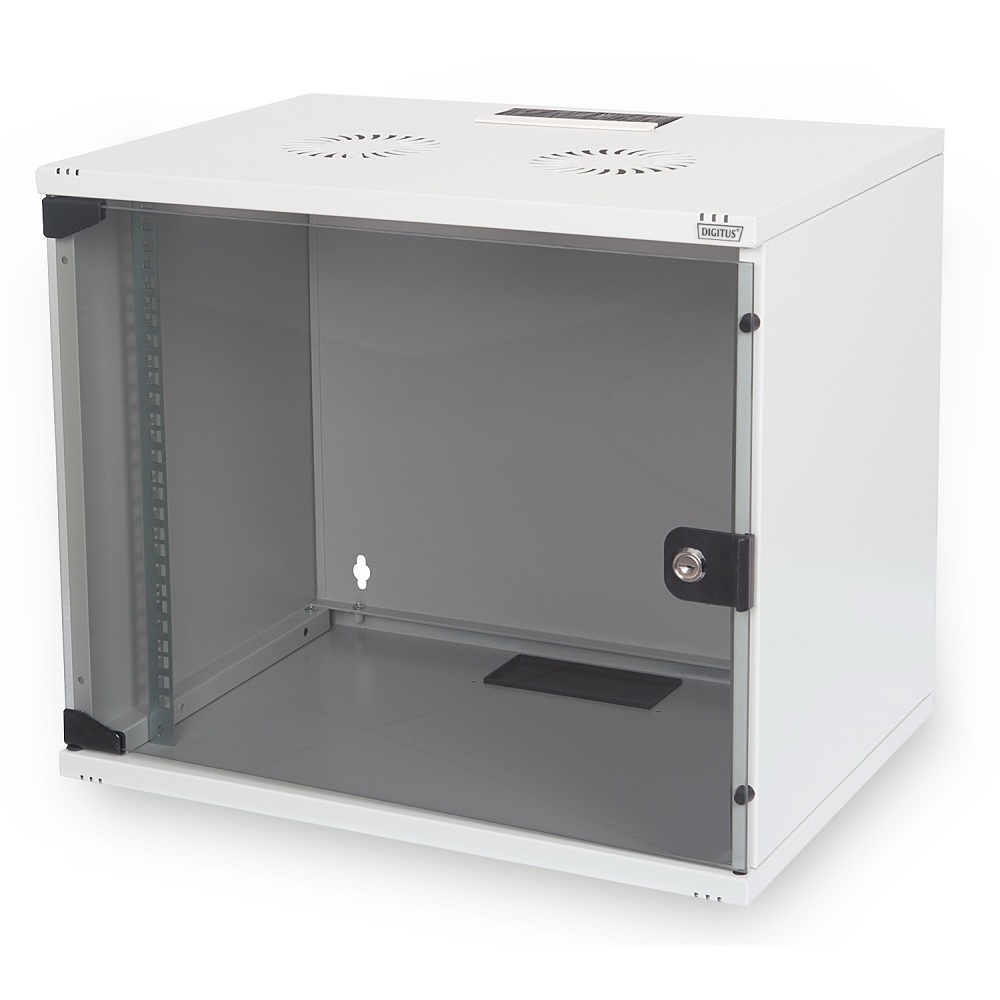

7U wall mounting cabinet, SOHO, unmounted 370x540x400 mm, full glass front door, grey
The DIGITUS® Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

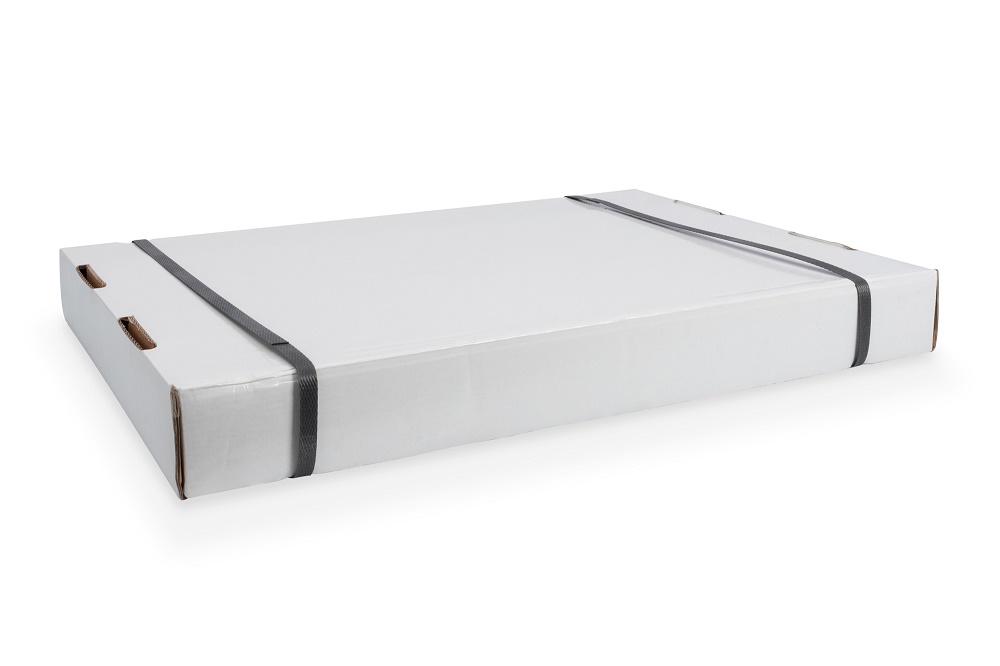

Unmounted flat package delivery for cost- and space effciency
Optimized air ventilation and exhaustion
Lockable glass door ensures safety
DESCRIPTION
The 483 mm (19”) network cabinets for wall installation from the SOHO series are delivered unassembled using a flat pack to optimize costs. Available in four rack units and equipped with a full glass door as well as a cable entry with brushes in the roof and floor, this is the perfect product for subdividing or building up a small to medium-sized network. Two pairs of galvanized 483 mm (19”) profile rails labeled with easy-to-read rack units are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). The door hinges can be switched. Installation takes just a few steps and is extremely easy thanks to the step-by-step instructions included.
TECHNICAL DETAILS
Safety class rating IP20
Lockable safety-glass door
200° door opening angle
1-point-locking-mechanism on the front door
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
483 mm (19”) profile rails are adjustable in depth
1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
Cable entry with brush strip on the top and with plastic cover on the base
Roof is prepared for fan units (punched out entries)
Ventilation slots for active and passive ventilation and exhausting
Equipment mounting depth min.-max.: 170-270 mm
Cabinet type: Wall mounting cabinet
Color: light grey, RAL 7035
Depth: 400 mm
Front door: Glass door, single opening
Load capacity: 60 kg
Side panels: Both sides
Units: 7
Width: 540 mm
IP protection class: IP20
Mounted: no
