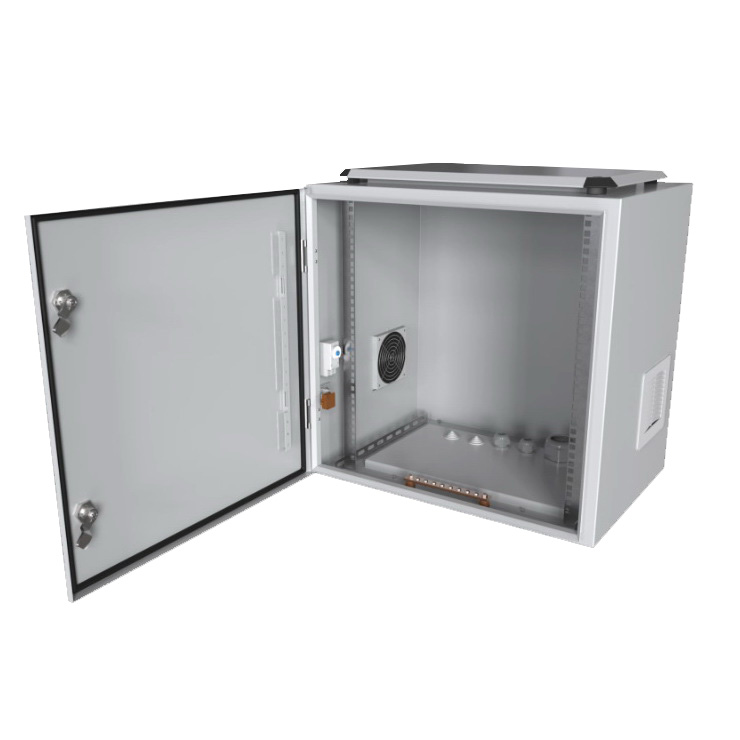

19″ Structure
All kinds of 19” devices and equipment can be connected to the device mounting rails. 2 device mounting rails are used in 600×450 cabinets, and 4 device mounting rails are used in 600×600 cabinets.

Locking System
In IP54 cabinets, 1 butterfly lock system is used in 7U and 2 in other upper sizes. It provides maximum protection. Optional lever lock can be requested.

Top Cover Model
Thanks to the pagoda type top cover model, it provides protection against water and dust dripping from the top. When the fan module is not connected, the pagoda top cover acts as passive ventilation.

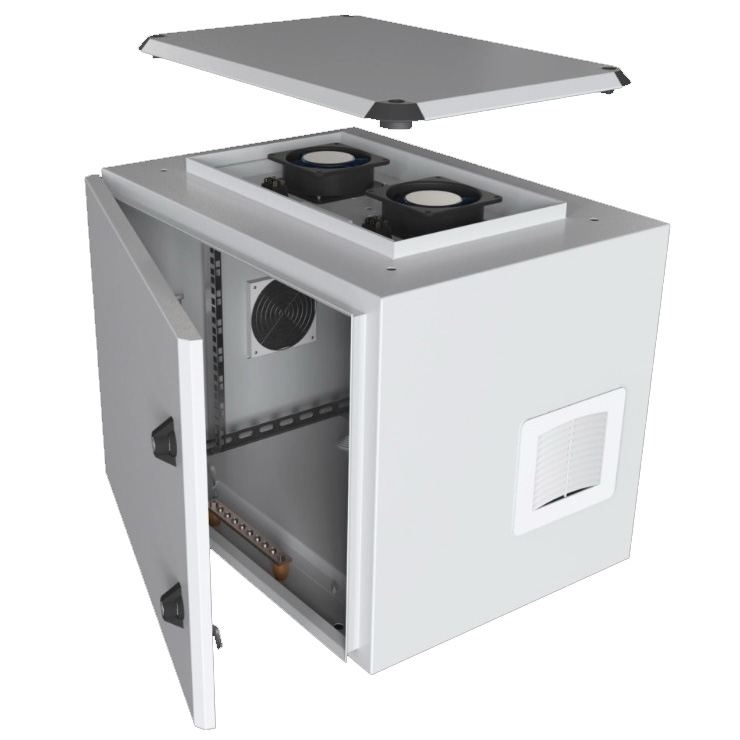

Ventilation System
Thanks to the PVC protected filter system on the right and left of the cabinet, it provides passive ventilation, while the pagoda type cover allows the hot air to be discharged.

Sealed Structure
Thanks to the gasket system on its cover, it provides protection against dust and water.

Cable Entries
It allows dense cable entries from the bottom thanks to 1 PG48 IP gland, 2 PG21 IP glands and 3 28mm diameter PVC blind plugs located at the base of the cabinet.

Wall Mount
It can be easily mounted on the wall thanks to the wall brackets.
