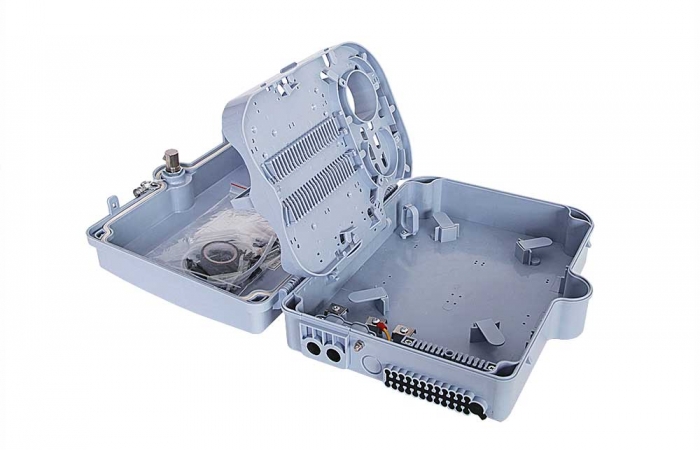

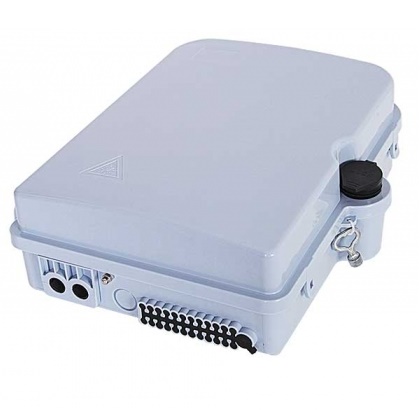

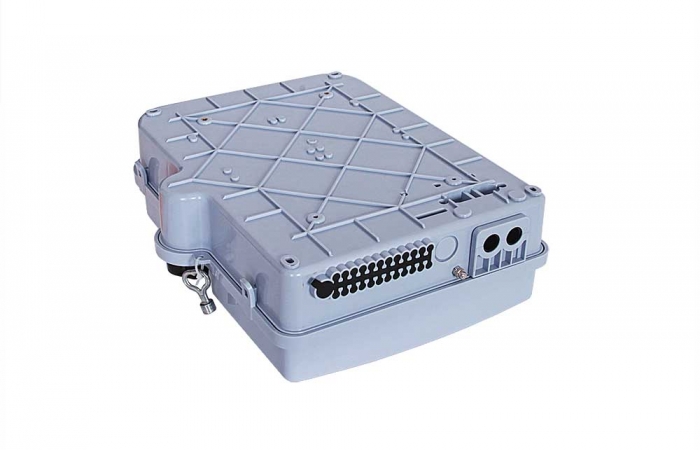

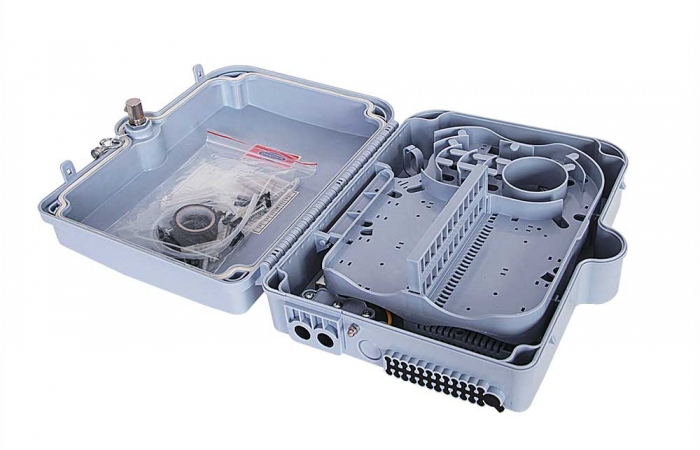

FTTX MDU E24 fiber optic joint (uncut port) is a box-type muffle with 26 inlet / outlet ports. This type of joint is used for fiber optic cable strand protection and branching applications. The Polycarbonate (PC) material forming the housing is made of high quality plastic resistant to UV radiation, low (-40 ° C) and high (+ 60 ° C) temperature, and chemical substances, which makes it suitable for both overhead and overhead installations. ducts and earthworks. It is designed so that its installation is uncomplicated and efficient, and at the same time offers a proven system of fiber optic management. All metal parts of the joint are made of corrosion-resistant materials. 24 outlet ports for customer cables can significantly improve and shorten the installation time. A new design feature is the default port for 2 glands (PG) and a separate oval port for self-assembly, which allows you to decide on the purpose of the joint depending on the emerging needs.

Dimensions: 300x235x100 mm
- Weight: 1.2 kg
- Material: PC + ABS plastic
- Number of places for adapters: 24
- Number of places for welds: 24
- Degree of protection: IP65
- Working temperature: -35 ° C ~ + 75 ° C
