Information

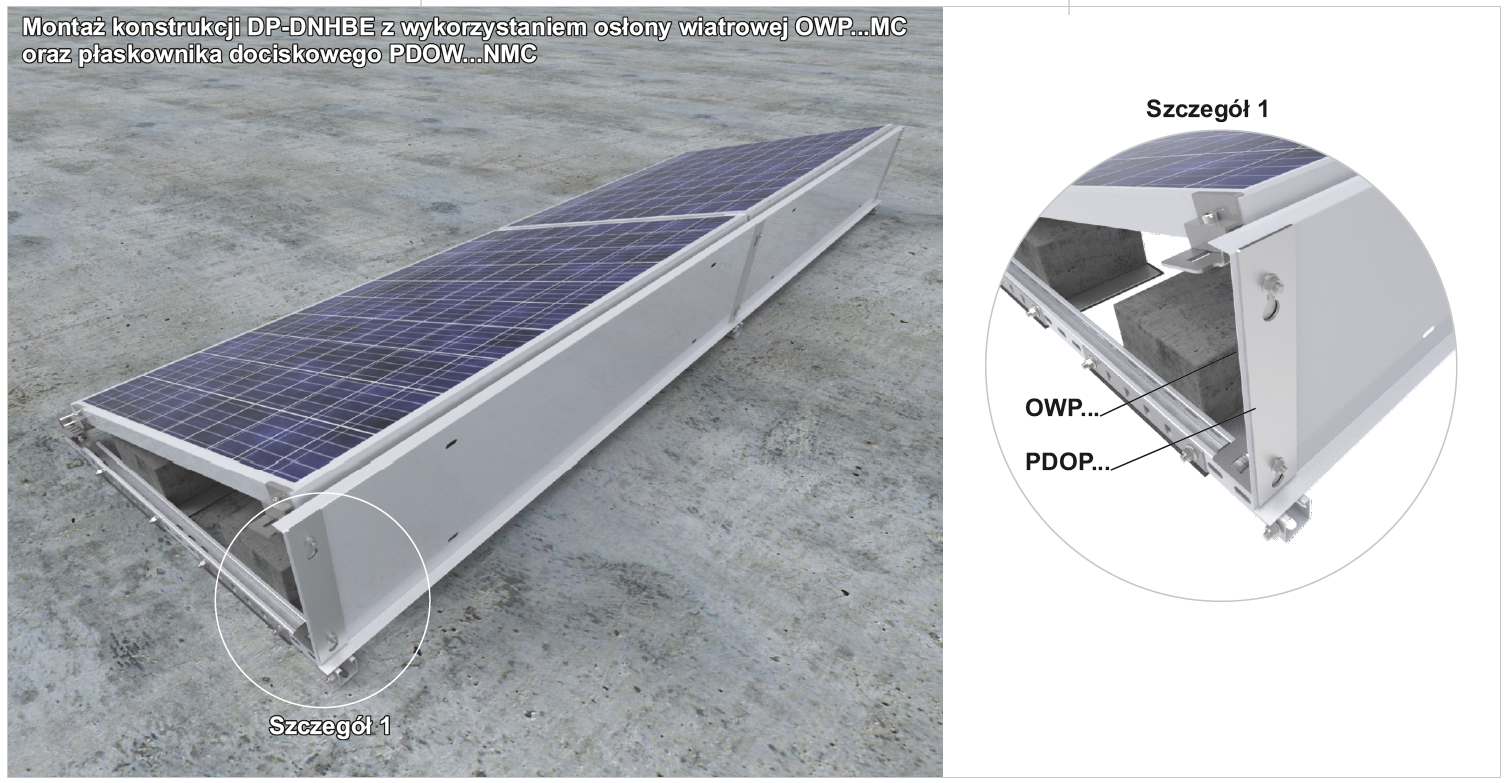

Mounting to structures for flat roofs with 10°,
15° and 20° inclination angles to improve the
aerodynamic strength of the structures.

Material
S250GD steel in Magnelis® coating

Additional information

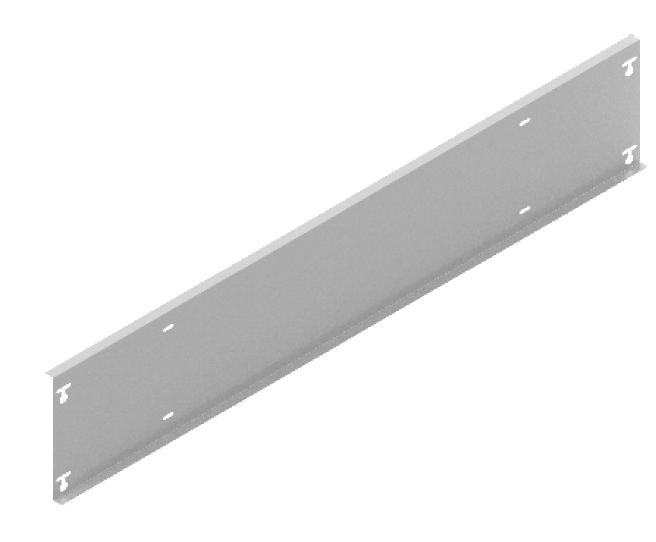

The OWP1... Wind Shield for panels with the length 1664-1700 mm
The OWP4... Wind Shield for panels with the length 1722-1758 mm
The OWP2... Wind Shield for panels with the length 1943-1980 mm
The OWP3... Wind Shield for panels with the length 1981-2018 mm


Advantages:
- Installation to the structure allows for the reduction of the ballast
required to ballast the structure

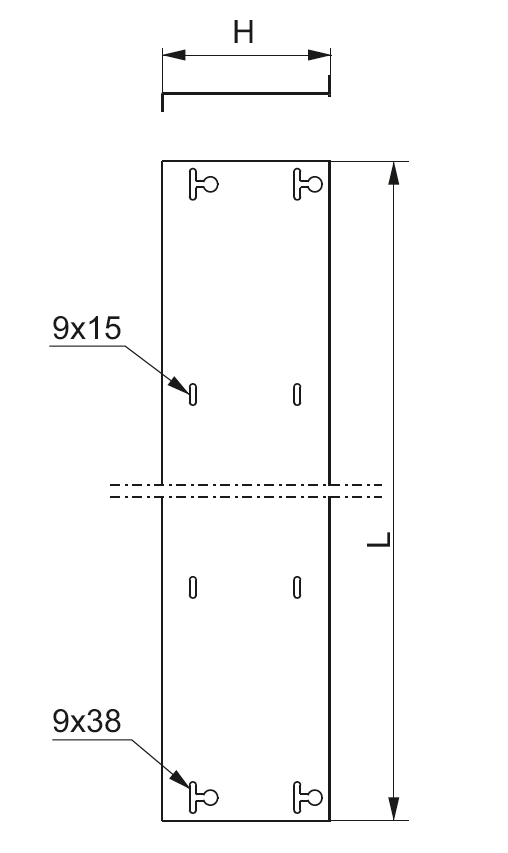

- special cut-outs allow the shield to be put on by one person without
having to move and hold the screws from the other side
- universal sizes adapted for different panel lengths


For the assembly use:
- 4 SGKFM8x20 Screw Sets
