The intelligent monitor arm solution with integrated docking station unites ergonomic design and comfort in an unprecedented manner. Users benefit from a perfectly ergonomically adapted monitor position and can also use their mobile devices such as notebooks, smartphones or tablets via a fixed monitor. The monitor arm supports displays with a screen diagonal from 15- to 30- (VESA 75 / 100) up to a maximum load of 9 kg. The integrated gas spring and quick-release function make it easier for you to position and clip in the monitor. You can access the interfaces of the integrated docking station centrally at the clamp mount. Use the HDMI, VGA and USB interfaces to connect your mobile device and also charge it via USB-C™ thanks to Power Delivery. Enjoy a tidy desk with the full connectivity of a docking station and the ergonomic advantages of the adjustable monitor bracket from DIGITUS®.

Technical details

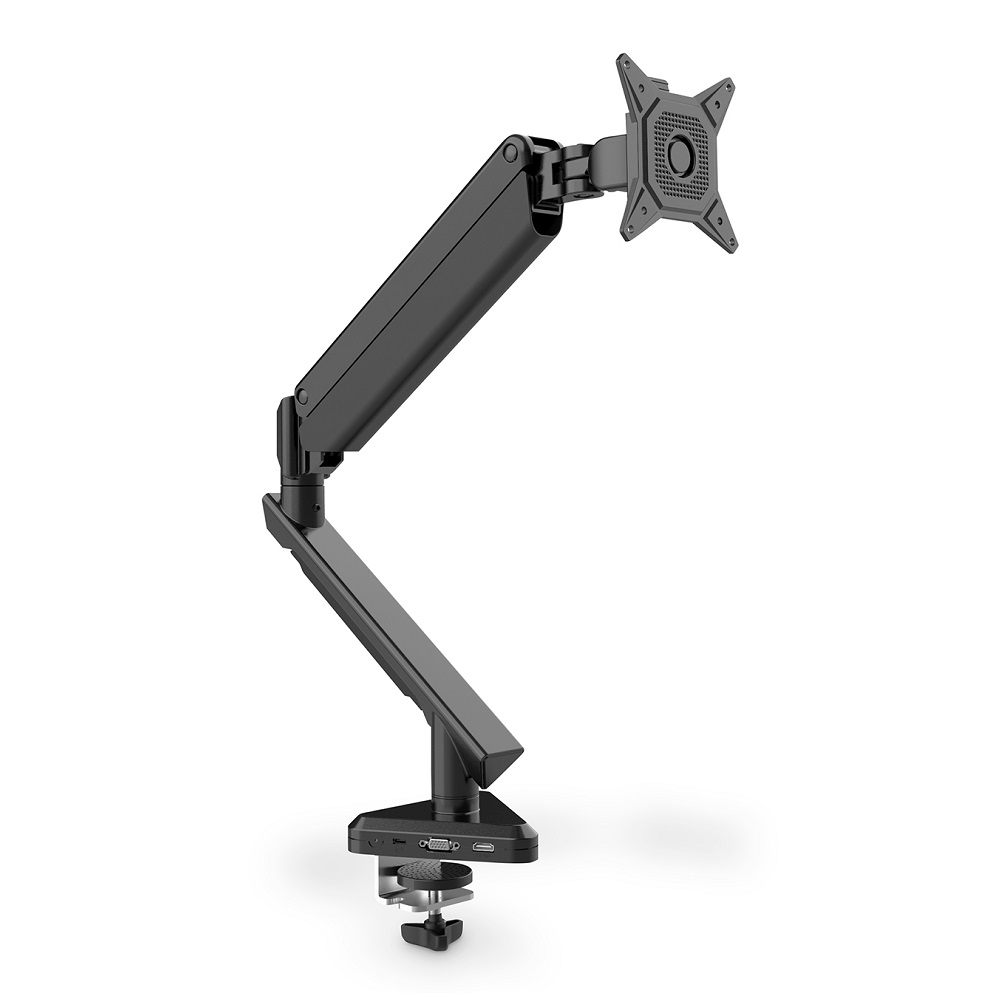

Monitor bracket:
Suitable for monitors with dimensions between 15- and 30-
Maximum load capacity: 2 - 9 kg
Quick release function: Simple clipping in of the monitor to the mount
Swivel the mount by up to 360° (3 hinges)
Inclination of the VESA bracket: -85° to +15°
Supported VESA dimensions: 75x75, 100x100
Maximum height adjustment: 47.7 cm
For tabletop thicknesses between: 25 - 30 mm
Material: Steel, aluminum, plastic
Dimensions: W 67.3 x D 55.4 x H 14.3 cm
Weight: 3.2 kg
Color: Black

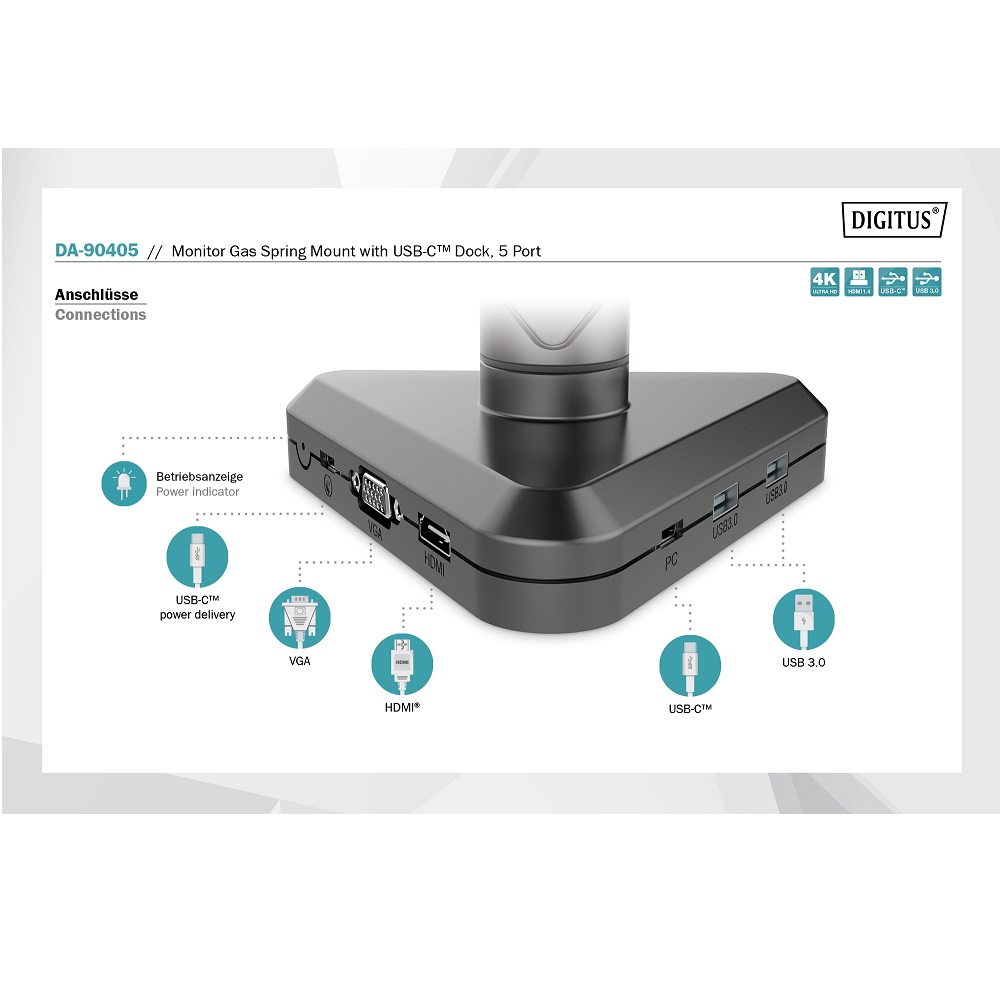

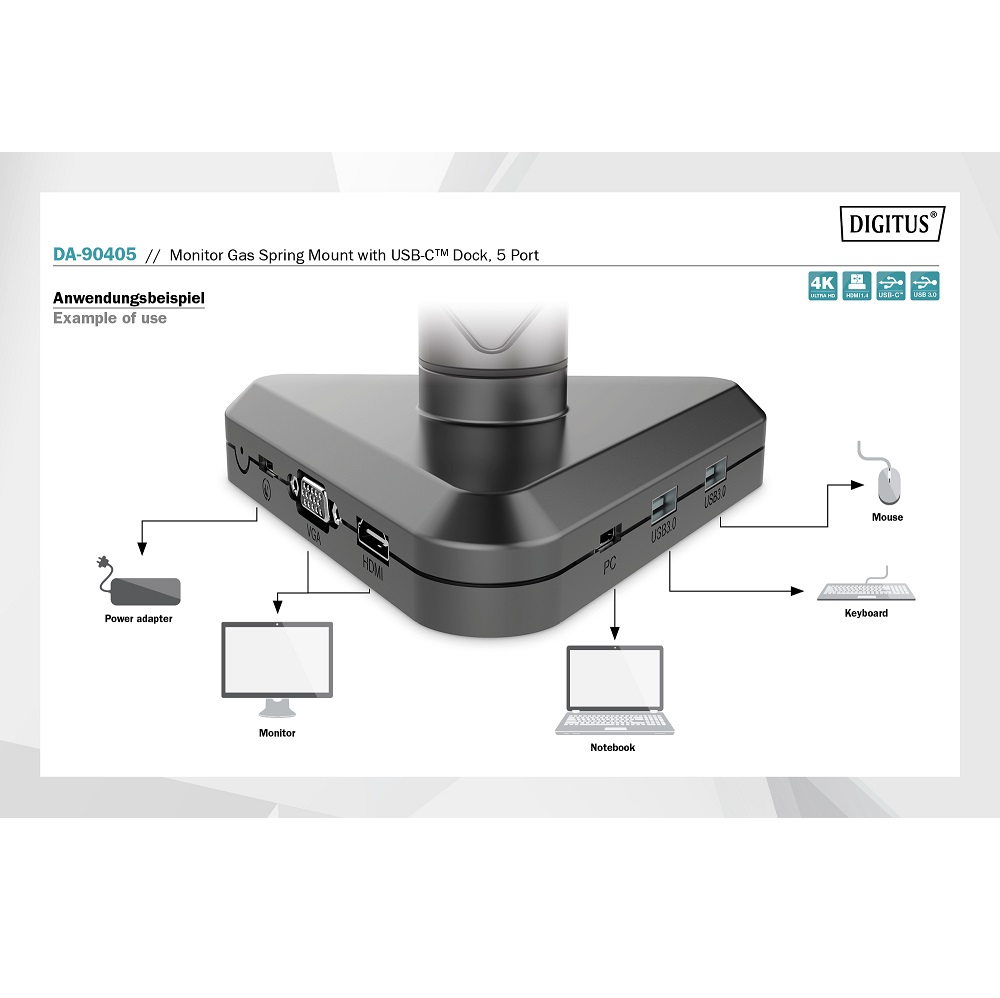

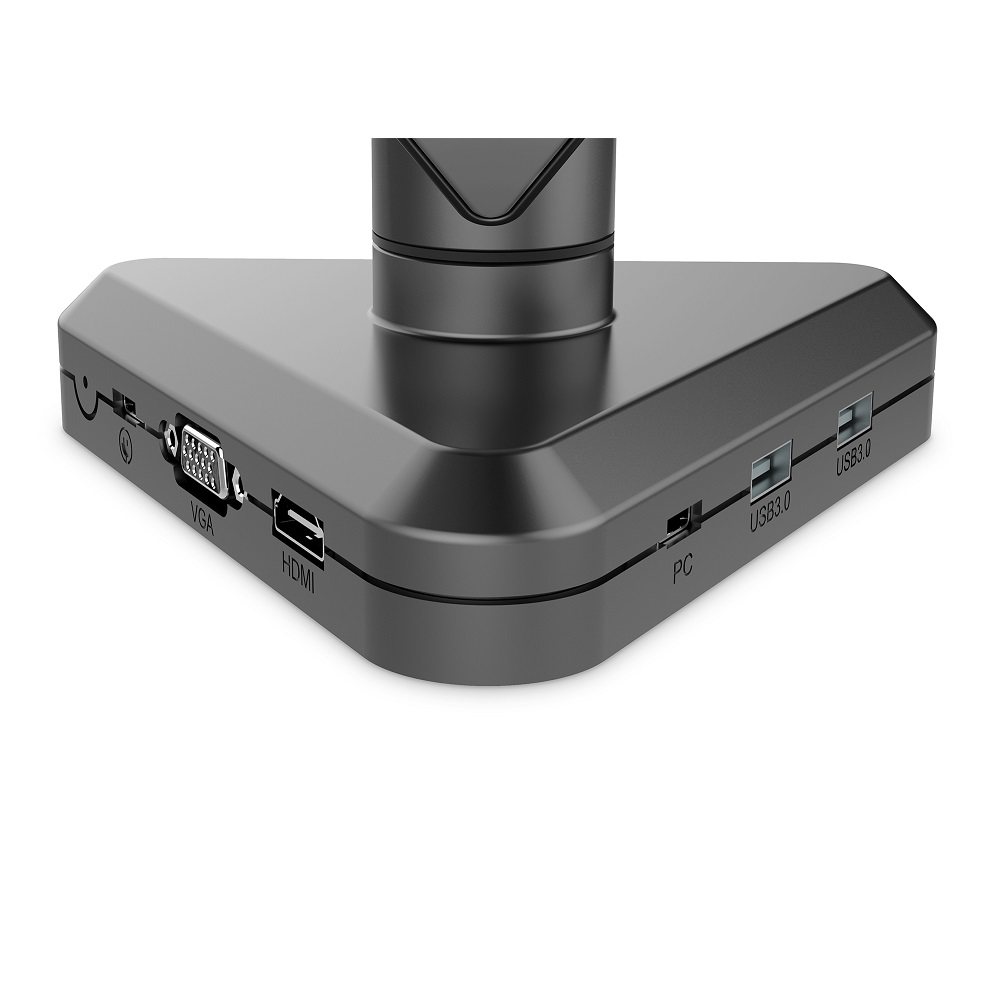

Docking station:
1 x HDMI port
1 x VGA port
1 x USB-C™ host
1 x USB-C™ with Power Delivery (PD 3.0 / 87 W max.)
2 x USB A - USB 3.0 / SuperSpeed 5 Gbps max. / 5 V / 0.9 A
HDMI version: 1.4
HDMI resolution: 4K - 1 monitor / 1080p - 2 monitors
VGA resolution: Full HD (1080p)
USB-C™ version: USB 3.1 Gen 1
Manufacturer’s notice:
Not all USB-C™ ports support all the features of the USB Type-C™ standard. Make sure that your notebook’s USB-C™ port supports the DisplayPort Alternate Mode (DP Alt Mode) as well as USB Power Delivery (PD).
An optional power adapter is required in order to use the charging function via Power Delivery.
Simultaneous use of HDMI + VGA = Clone desktop
Individual use of HDMI or VGA = Extend / Clone desktop
Monitor weight (max.): 9 kg
Mounting method: Clamp-mount
Number of monitors: 1
Size of monitors: up to 32-
VESA mount: 75x75 mm, 100x100 mm
