736x568x93

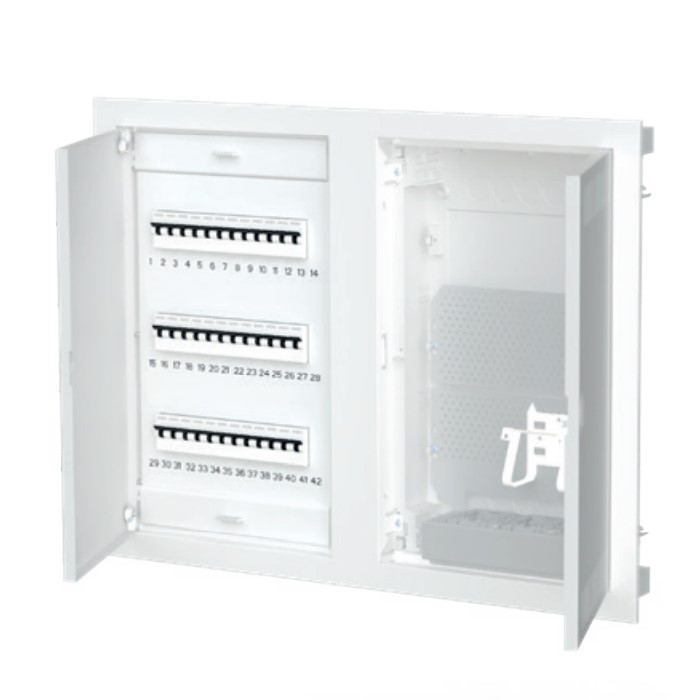

■ perforated metal door and frame, white color RAL 9003
■ in accordance with IEC 60670-1 and IEC 60670-24
■ installation: In wall - brick and hollow walls
■ rated current: up to 63A
■ 400V~, class II
acessories
■ DIN rail for circuit breakers
■ mounting plate for distribution box for multimedia
■ modem carrier
■ mounting frame 2M
■ insulated connectors for earthing/neutral, suitable to glow
wire test of 960 °C
■ brick/hollow wall mounting distribution box carrier set
■ blank
■ installation of level
possibilities
■ installation of lock with key, installation of another modem
carrier, change of direction of opening door to left or right
side, without dismantling the frame, installation of Modul
program on a mounting frame 2M or using the adapter
RB10, RB11, installation of communication modules using
Modul communication adapters, installation of modular
elements by using Patch Panel, horisontal/vertical binding
two or more distribution boxes using joining elements for
connection RB80, RB81
