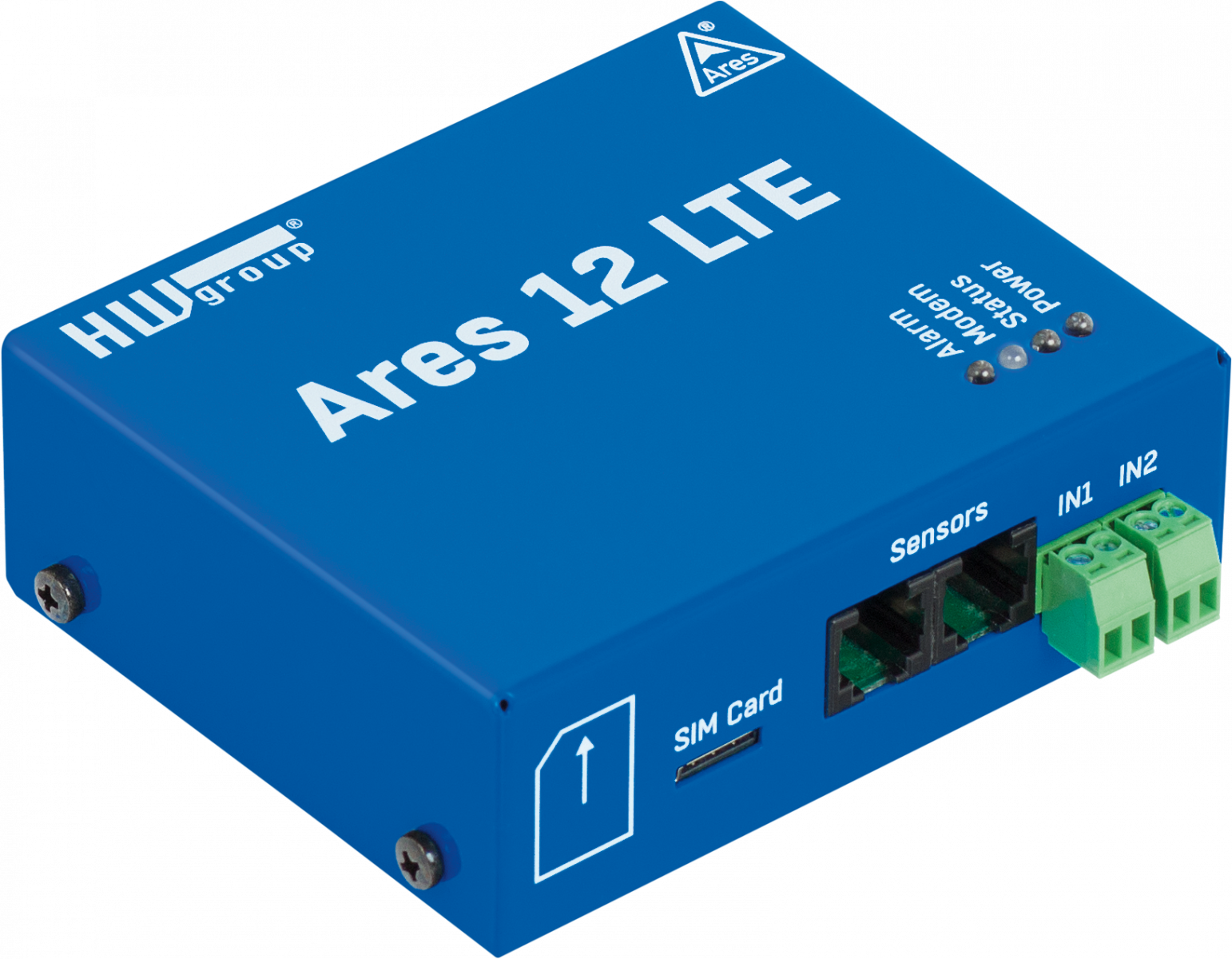

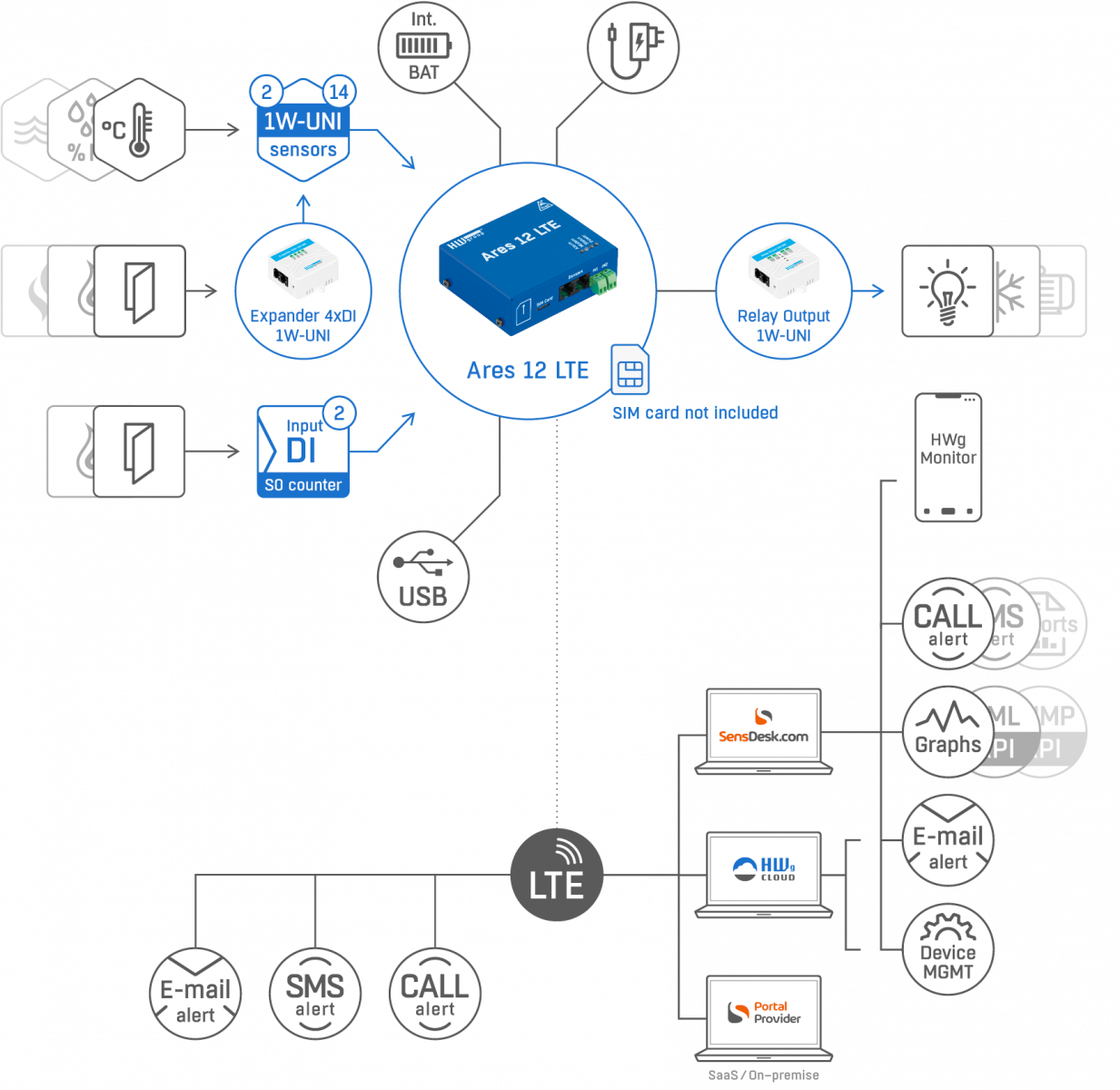

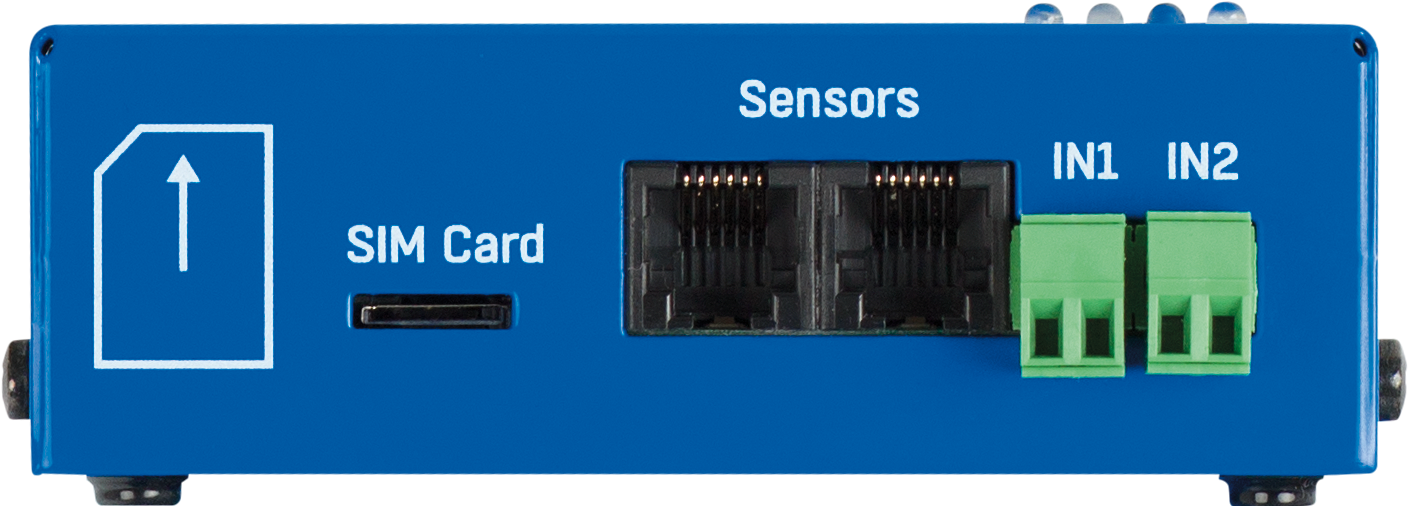

Ares 12 is an industrial unit for remote monitoring and alarming over GSM for locations without LAN access. Includes battery backup. Connect up to 14 external sensors and 2 dry contact detectors.

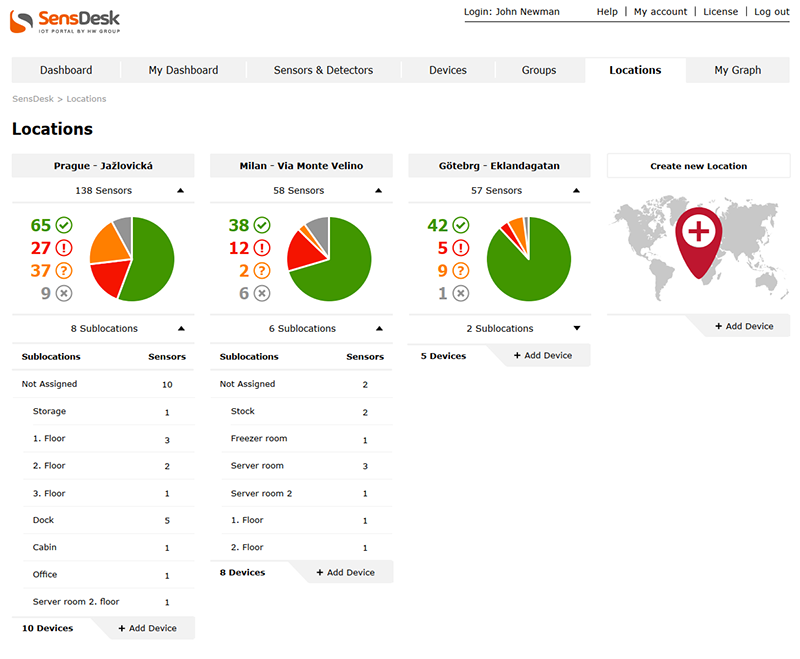

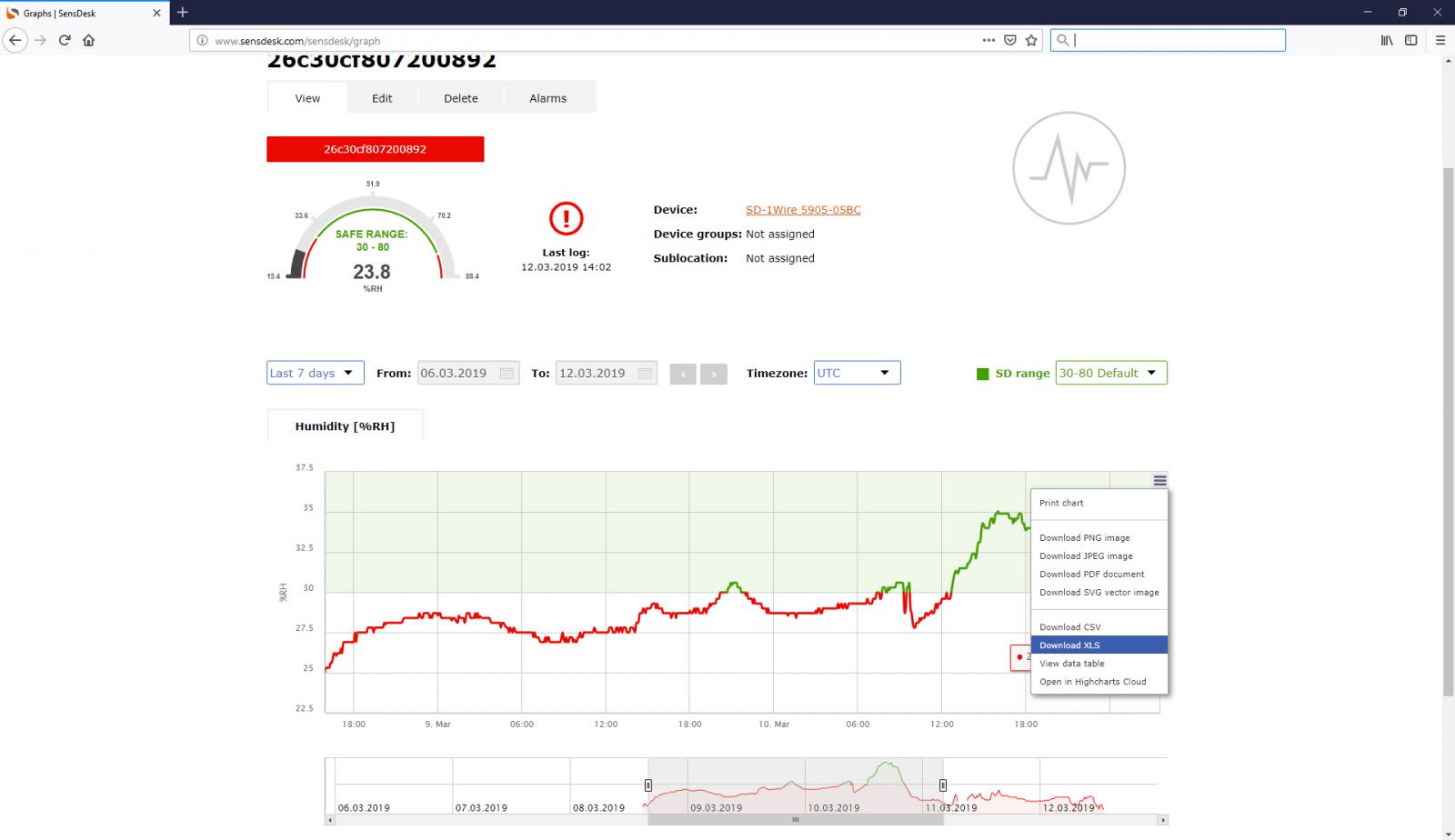

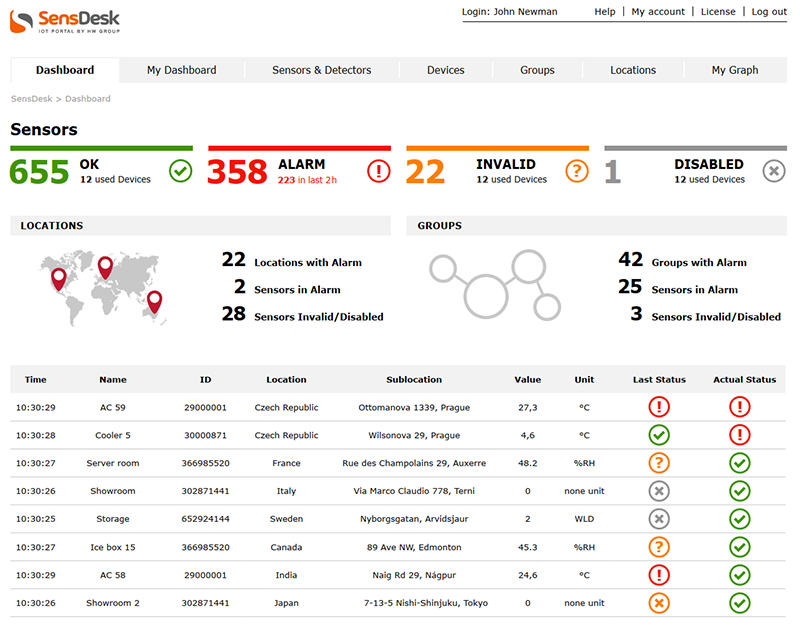

Ares monitors the readings of connected sensors. When a value reaches the alarm threshold, the device sends an e-mail or a text message (SMS), or dials specified numbers. Use SensDesk Technology portal to view measured data in a complex dashboard.

Ares products support FOTA (Firmware Over The Air) for remote firmware updates.

Features:

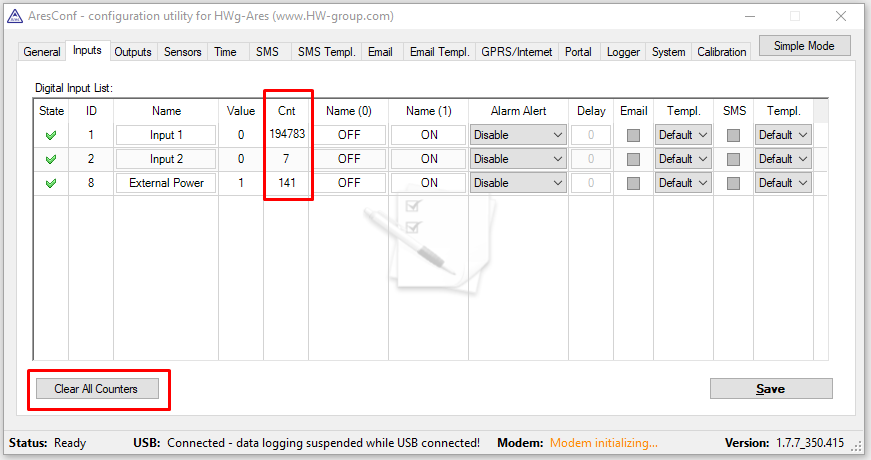

14x 1-Wire UNI/1-Wire Input; 2x Digital Input with S0 pulse counters; Data Logger for more than 250.000 recordss; Digital Inputs feature 32-bit pulse counters that retain their value even if the power fails

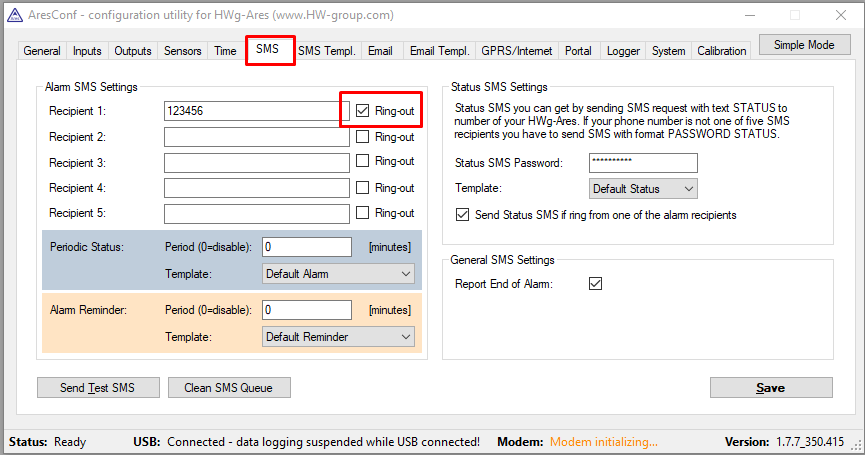

5x E-mail; 5x -SMS+Ring-
Internal battery provides back-up power for up to 24 hours.

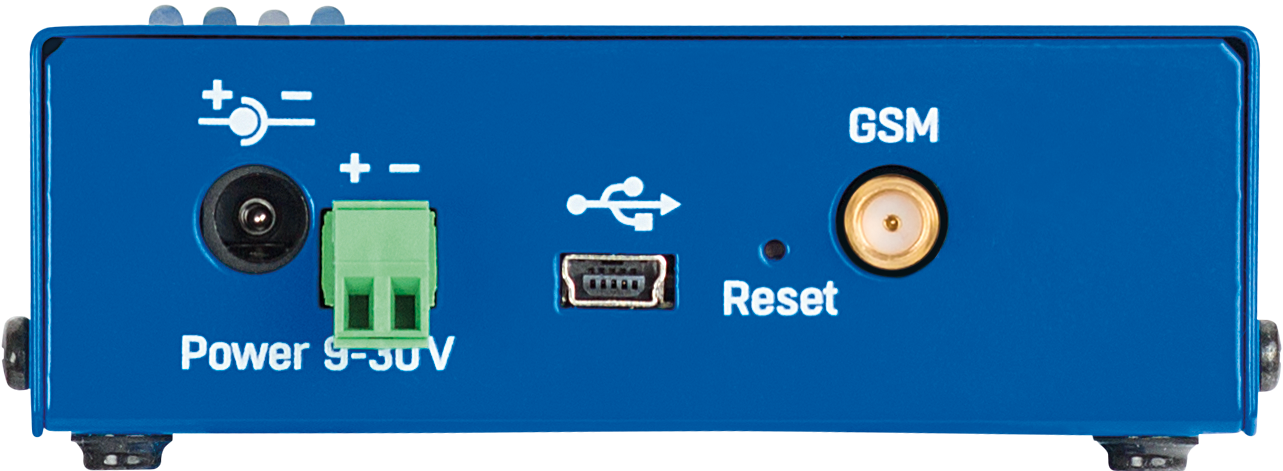

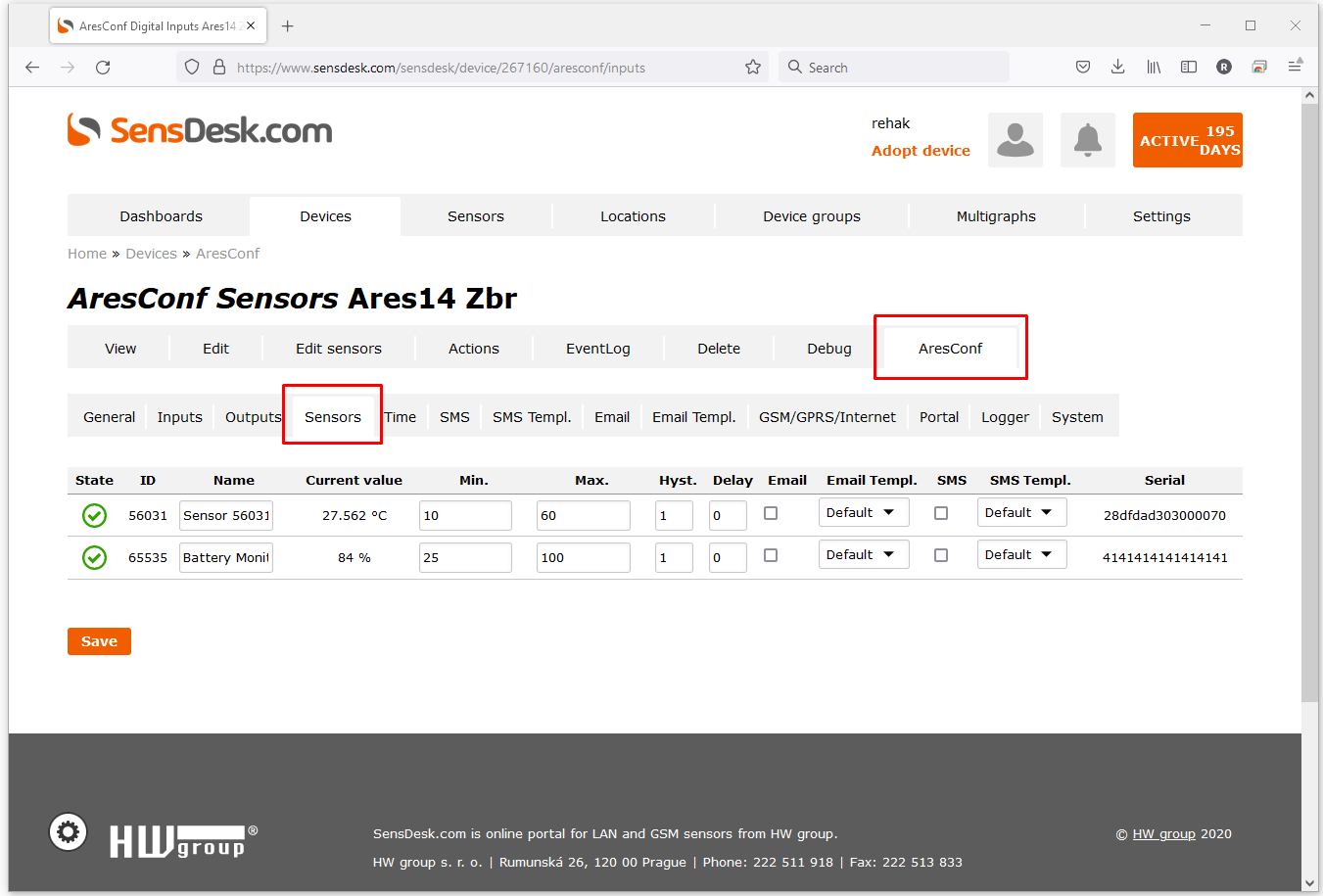

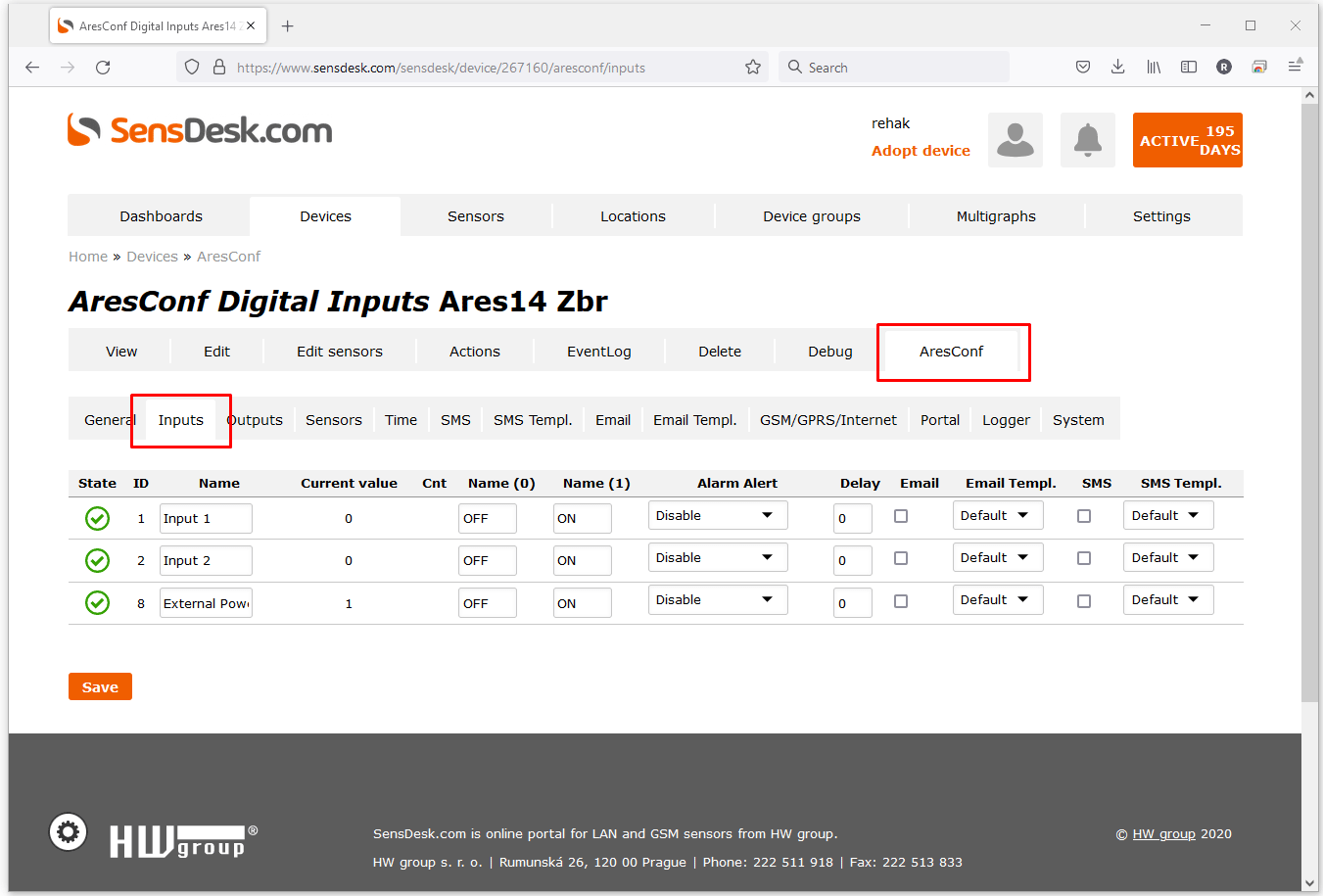

Use the USB interface to configure the device from a PC with no need to install any additional software. Remote configuration also possible via the “AresConf” tab in the SensDesk portal.
Remote firmware upload (FOTA) capability makes Ares devices ideal for large-scale deployments.
Connected via GSM/GPRS.List of APN available worldwide.
A sensor value out of a set safe range as well as a DI state change sends an alert by e-mail or -SMS+Ring-, or activates a relay (via connected accessory -Relay Output 1-Wire UNI-).
Data can be sent in e-mail attachments or downloaded via USB.
With the HWg-PDMS software, S0 pulses can be converted to cost per time period and exported to MS Excel.
Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in the HWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).
Applications and usage:
GPRS monitoring of machines and their environment
ATMs – environment monitoring without tampering with the connection
Art exhibits and depositories
Storages of food or materials
Cooling systems and coolers
