Technical Specifications:

CONSTRUCTION AND ELECTRICAL
Category 5e
Class D

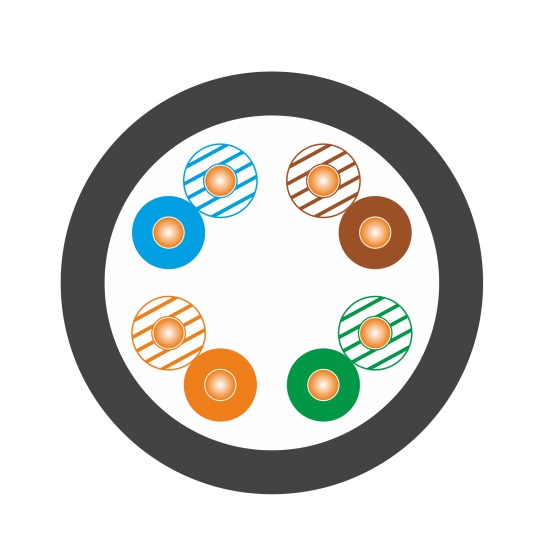

Twisted element 4x2x24AWG
Conductor 100% Cu - bare copper wire AWG 24/1
Insulation polyethylene
Fire euroclass Eca
Screen No
Jacket These pairs, together with a strong nylon rip cord are jacketed in a heat resistant PVC material (FRPVC)
PoE 802.3 af
Color Light gray

ELECTRICAL PROPERTIES
AT 20ºC
Conductor DC Resistance ≤ 95 Ω /km
Changing resistance ≤ 2%
Insulation resistance (500V) ≥ 5000 MΩ *km
Mutual Capacitance at 800 Hz nom. 48 nF/km
Changing capacitance passive resistance ≤ 1500 pF/km
Characteristic impedance (1-100MHz) (100 ± 15) Ω
Nominal Velocity of Propagation (NVP) 69%
Delay spread Nominal ≤ 535 ns/100m
Angle spread Nominal ≤ 20 ns/100m
Tester installation DC, 1 min. 1000 V

MECHANICAL PROPERTIES
Bend Radius 4 x overall diameter
Max. pulling force 80 N
Temperature range - work -30°C do + 50°C
Temperature range - instalation 0°C do + 50°C
Outer diameter 4,8 mm
Weight / km 27kg

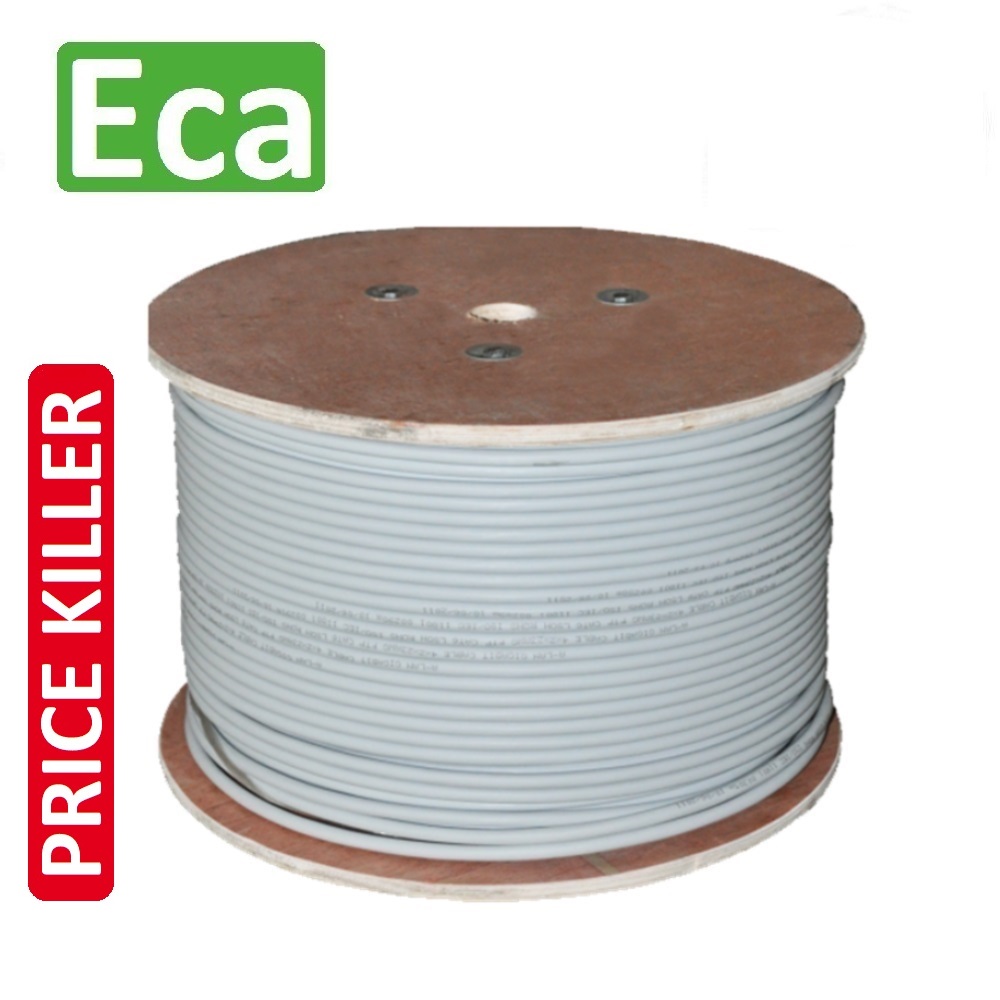

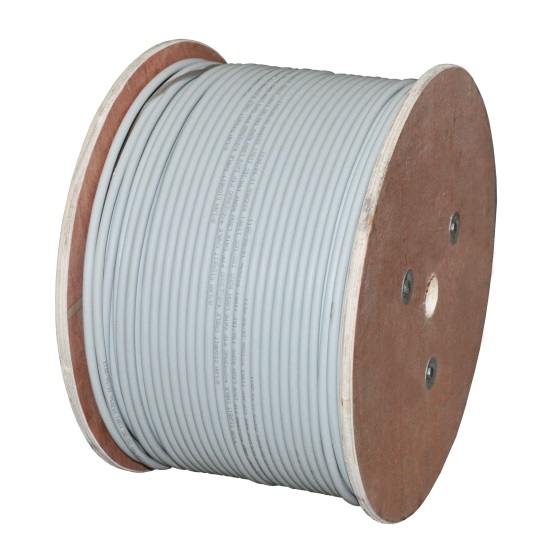

Packing roll (1000m)
