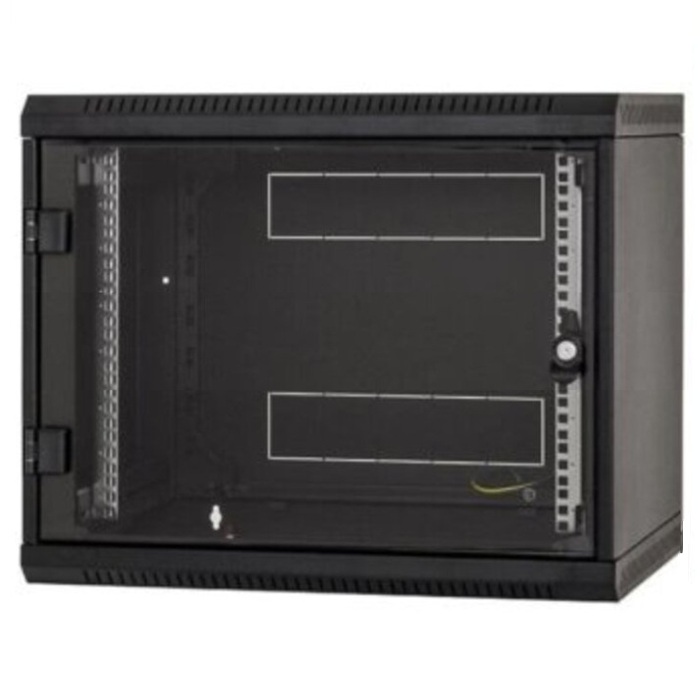

One-sectioned welded cabinet with removable side panels, IP20, capacity 45 kg / with reinforcements 90 kg.

Product details
Rigid construction
The cabinet has a robust welded construction. High quality workmanship and the latest technology ensure excellent design of the cabinet and the permissible load of 45 kg, with reinforcements 90 kg.

Doors
The cabinet doors are fully glass as standard, but can also be solid metal or perforated on request.

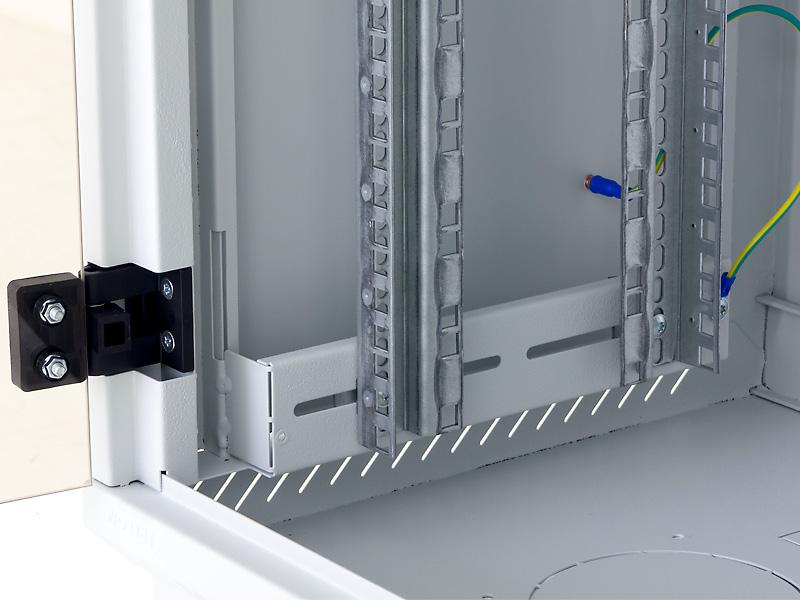

Flexible door opening
The own hinge system allows the door to be opened at an angle of 165°. The door can be easily removed.

Glass
The full-glass doors are made of 4 mm thick tempered safety glass, which is resistant to ordinary impacts. When broken, it forms a number of small fragments like automotive glass. For safety reasons, we recommend closing the full-glass door after installing the equipment in the cabinet so that it cannot collide with other objects. Our full-glass doors are tested in a certified testing laboratory and meet the requirements of ČSN EN 12150-1+A: Glass in construction – Thermally tempered soda-lime-silicate safety glass. The tested glass meets the standard for the disintegration of glass after breakage, Certificate of Conformity CQ-24- 2023, Test Protocol IKATES 58A-2024.

Locks
Allows easy and quick access to the cabinet. In the standard version, the door lock and the side panels have the same key.

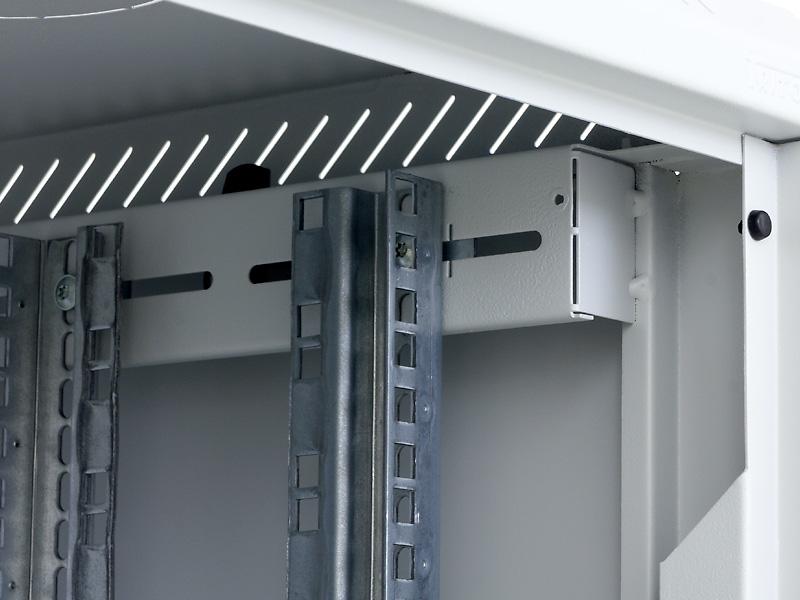

Adjustable vertical rails
Two pairs of 19” vertical rails can be adjusted freely in any depth of the cabinet. This simplifies mounting of the device and configuration of cables.

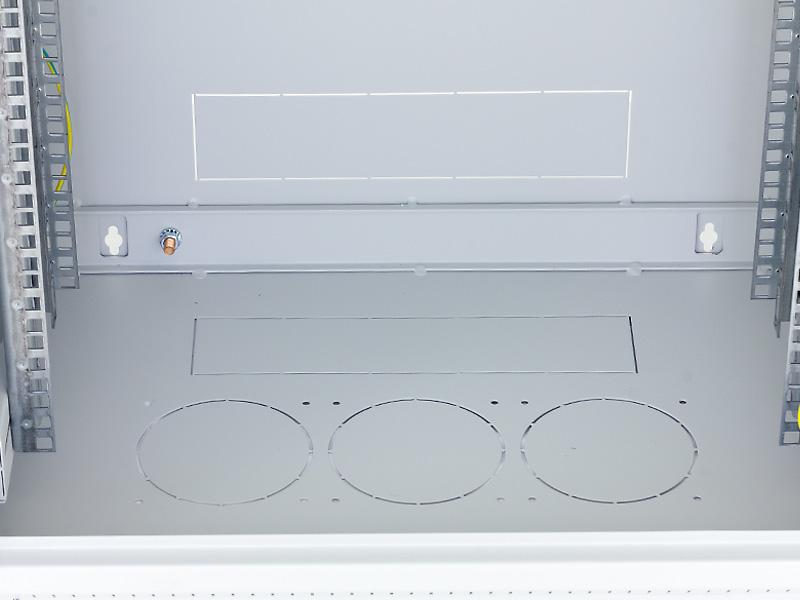

Break-out blanking panels
In the upper, lower and rear part of the cabinet there are cable entrances covered with break-out blanking panels. The cables can be sealed against dust penetration with a brush (included in the cabinet supply).

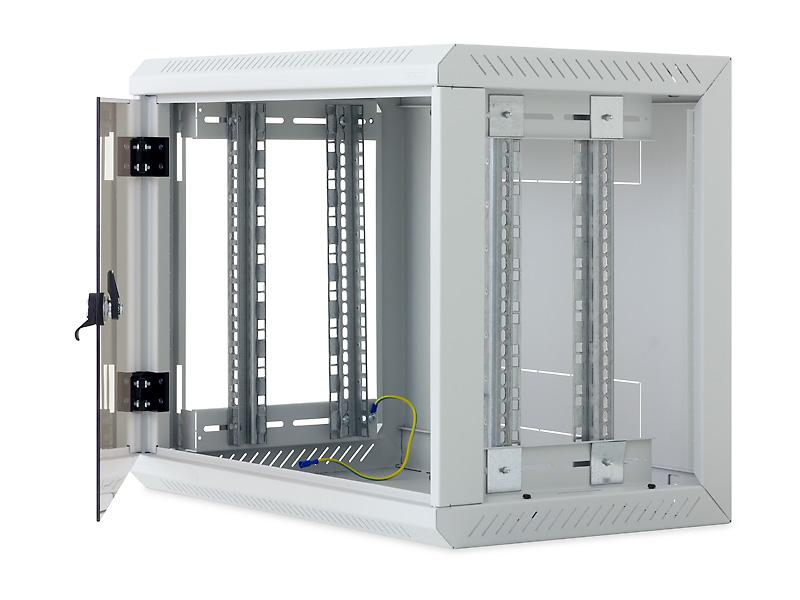

Removable side panels
Removable side panels enable easy access to installed equipment from the side. They are fixed to the skeleton by locks, in the standard version with the same the same key as the front door lock.

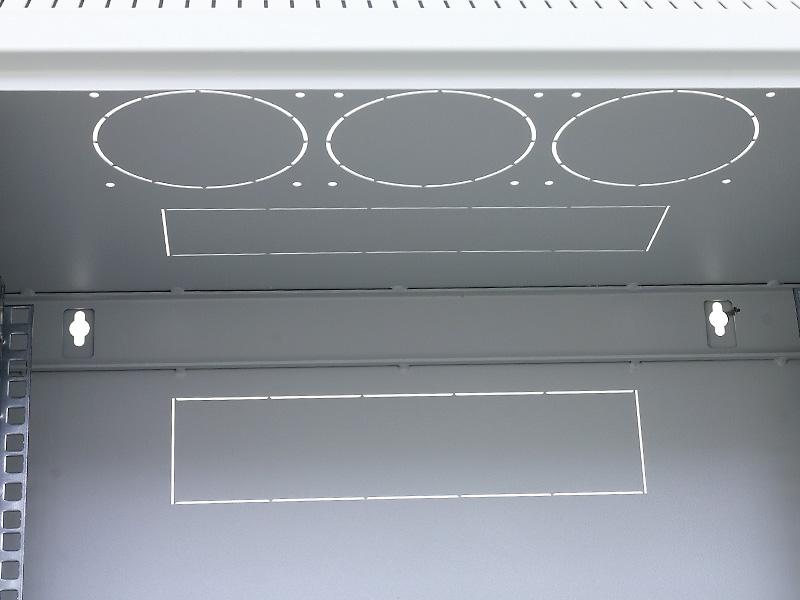

Ventilation
The RUA has 6 break-out blanking panels for the installation of ventilation units RAC-CH-X2x-X1 or fans RAX-CH-X07-X9 (up to 3 in top and 3 in bottom part of the cabinet). The RUA cabinet now allows the installation of equipment that previously could not be cooled enough in wall-mounted cabinets and had to be installed in free-standing cabinets.
