HDMI 1.4
6.75 Gbps video bandwidth
Supports Full HD, 1920x1200/60 Hz, 4:4:4
HDCP 1.4
Supports Cat5e, CAT 6, CAT 6A, CAT 7 network cable
Maximum transmission distance: 150 m (point-to-point connection)
Supports H.256 encoding/decoding
USB 1.1
Compression: H.265

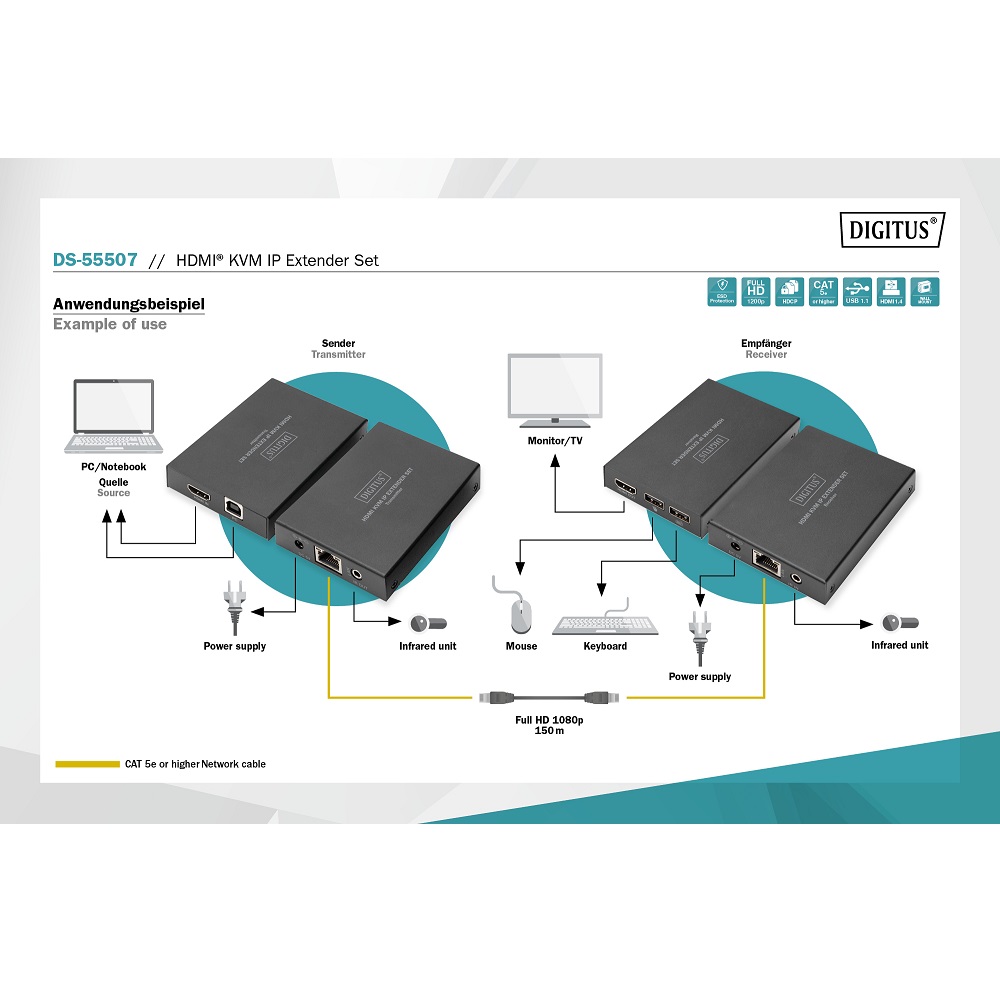

Transmitter unit connections:
1x HDMI input (1920x1200/60Hz) - Connection signal source
1x RJ45 output - Connection CAT transmission cable
1x USB-B input - Connection host PC for use of KVM functionality
1x IR output - Connection of IR transmitter
1x Power adapter input (DC 5V/1A) - Connection for external power adapter
Receiver unit connections:
1x HDMI output (1920x1200/60Hz) - Connection output device
1x RJ45 input - Connection CAT transmission cable
2x USB-A (1.1) input - Connection of mouse and keyboard
1 x IR input - Connection of IR receiver
1x Power adapter input (DC 12V/1A) - Connection for external power adapter
ESD protection
Operating temperature: -10-50 °
Power consumption: Transmitter approx. 1.4W, Receiver approx. 1.7W
Housing: Metal
Dimensions (1 unit): L 9.15 x W 6.7 x H 1.75 cm
Weight: Transmitter 155 g, Receiver 150 g
Color: Black
KVM: no
PoE (Power over Ethernet): no

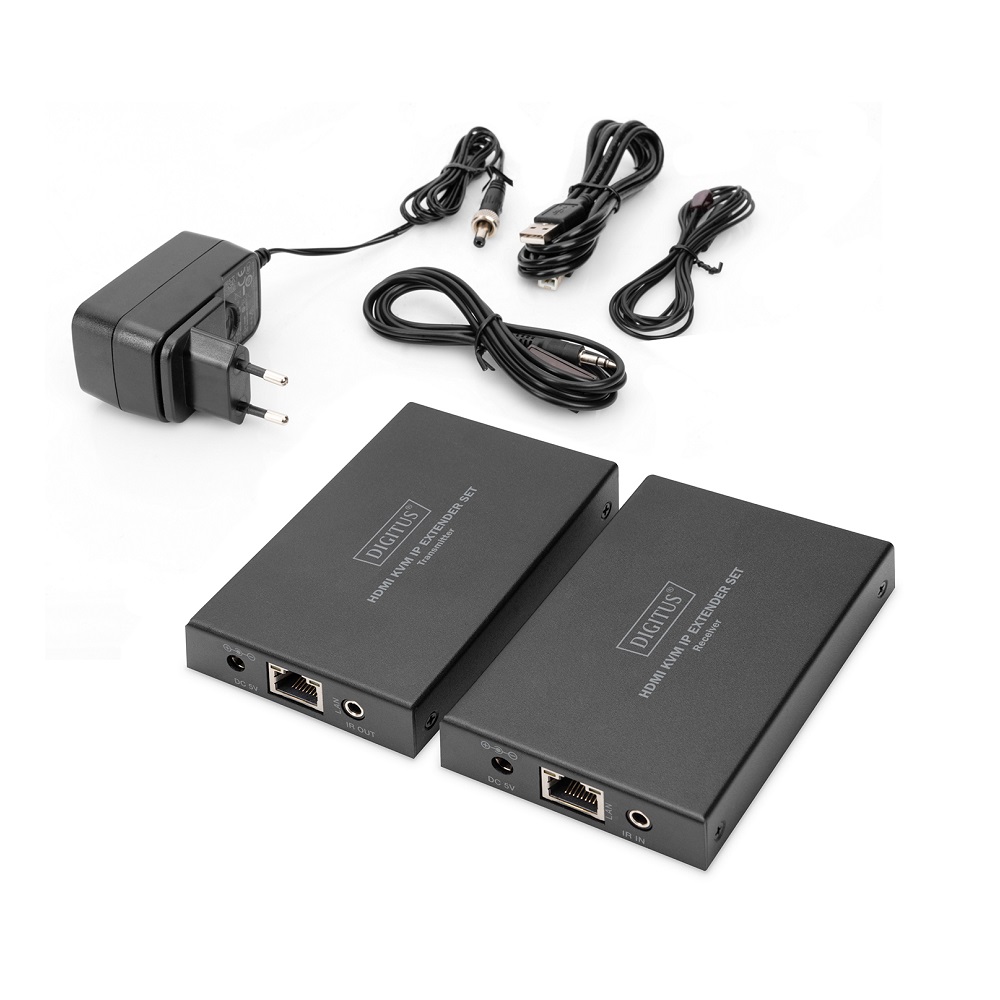

Package content
1x Transmitter unit
1x Receiver unit
1x IR transmission cable (1.5 m)
1x IR receiver cable (1.5 m)
2x Power adapter (DC 12V/1A, 1.15 m)
1x USB-B-A cable (1.5 m)
1x User manual
